| Power supply: | 230 V AC, 50 Hz ~ |
| | via 12 V DC, 500 mA power unit included in the delivery |
| Power consumption: | 4 W |
| Number of control channels: | 24 |
| Sound-control: | via built-in microphone or |
| | RCA line input (min. 100 mV) |

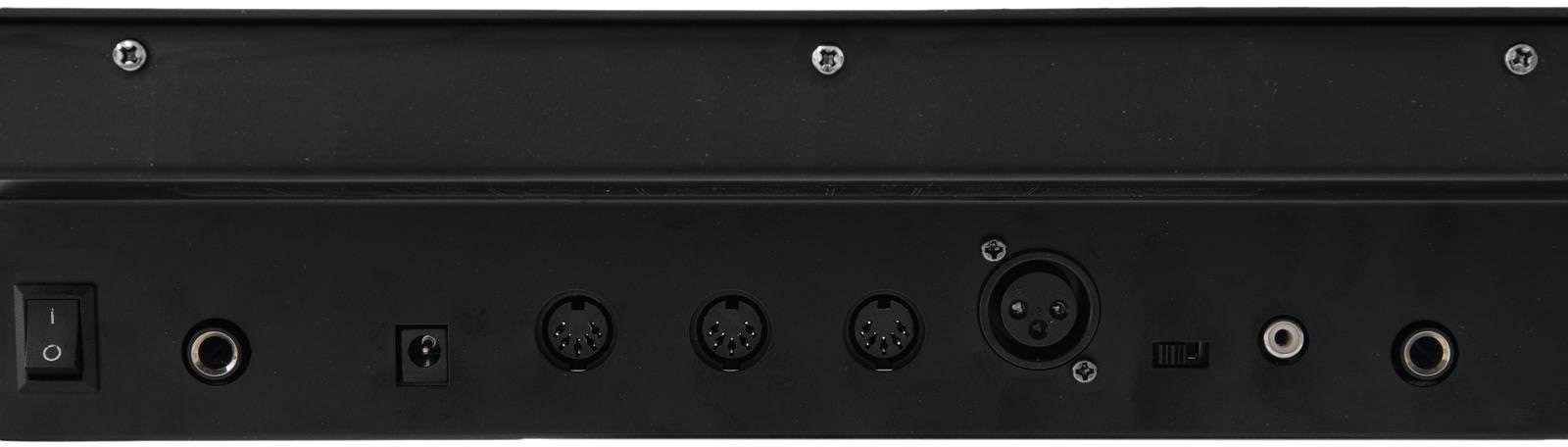

| DMX512 output: | 3-pin XLR connector with polarity selector |
| Dimensions (LxWxH): | 483 x 264 x 90 mm |
| | Rack installation with 6 U |
| Minimum mounting depth: | 80 mm |
| Weight: | 5 kg |
