Product description:
Safety features
Rugged construction with steel housing for long operation

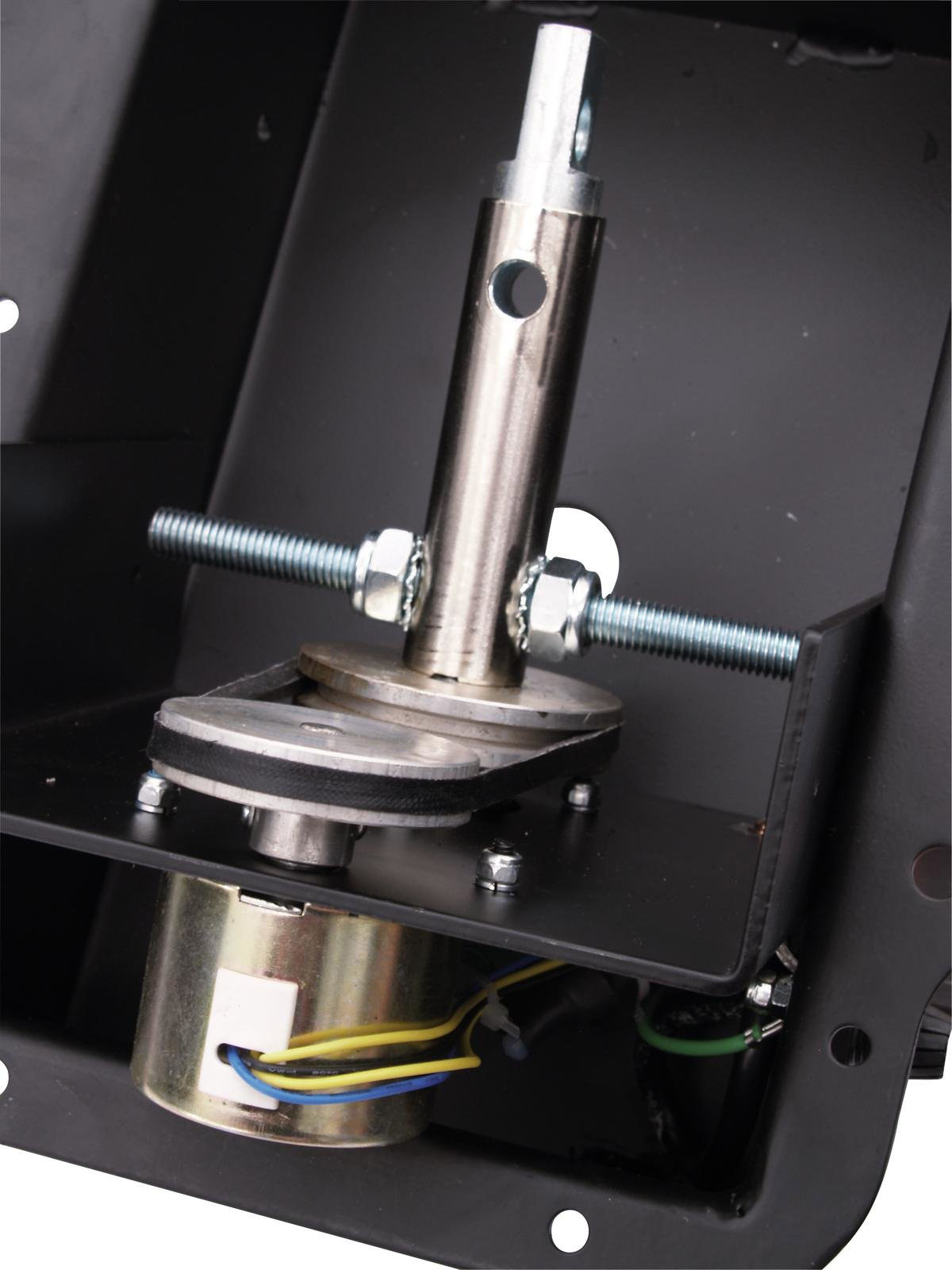

High stability due to massive motor axle
Mechanic fall safety against axle loosening inside the motor
Approved load with 12-fold testing weight
Additional attechment eyelet for secondary attachment of the load
EUROLITE safety rotary motors comply with the safety norm EN 292 and safety regulation BGV C1 (Germany)
Quality management for testing every production charge

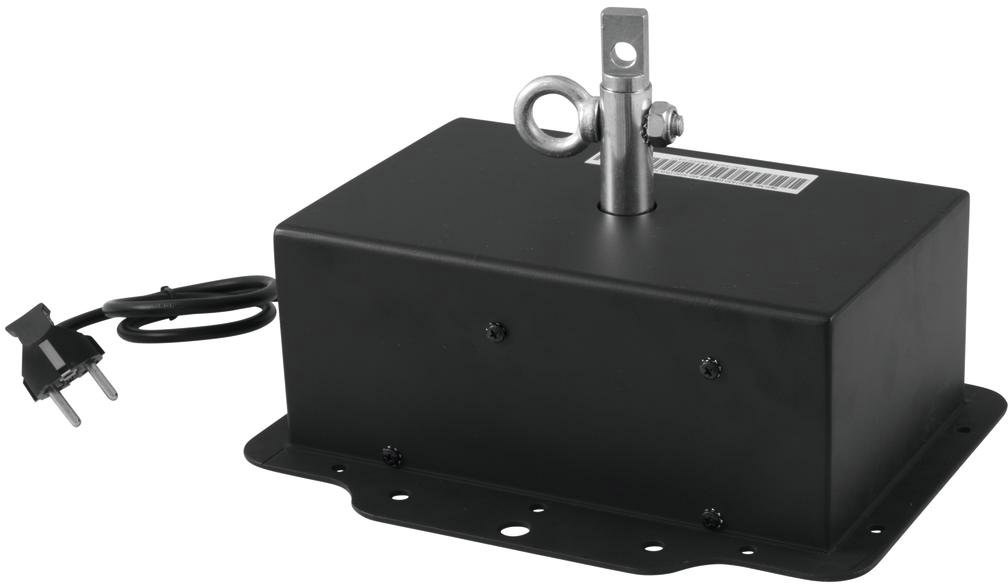

Mirror ball motor for up to 100 cm diameter
- Suitable for driving mirror balls up to a maximum weight of 40 kg
- This weight corresponds with a diameter of 100 cm for the EUROLITE mirror balls
- The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material
- 2 chains and 4 quick links must be ordered separately
- 1 rotation per minute
- For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
| Power supply: | 230 V AC, 50 Hz ~ |
| Power consumption: | 7 W |
| Max. load WLL (4-fold): | 120 kg |
| Max. load BGV C1 (8-fold): | 60 kg |
| Max. load BGV C1 (10-fold): | 50 kg |
| Max. load BGV C1 (12-fold): | 40 kg |
| Max. diameter of mirror ball: | 100 cm (EUROLITE) |
| Rotation-speed: | approx. 1 RPM |
| Dimensions (LxWxH): | 280 x 240 x 110 mm |
| Weight: | 5 kg |
