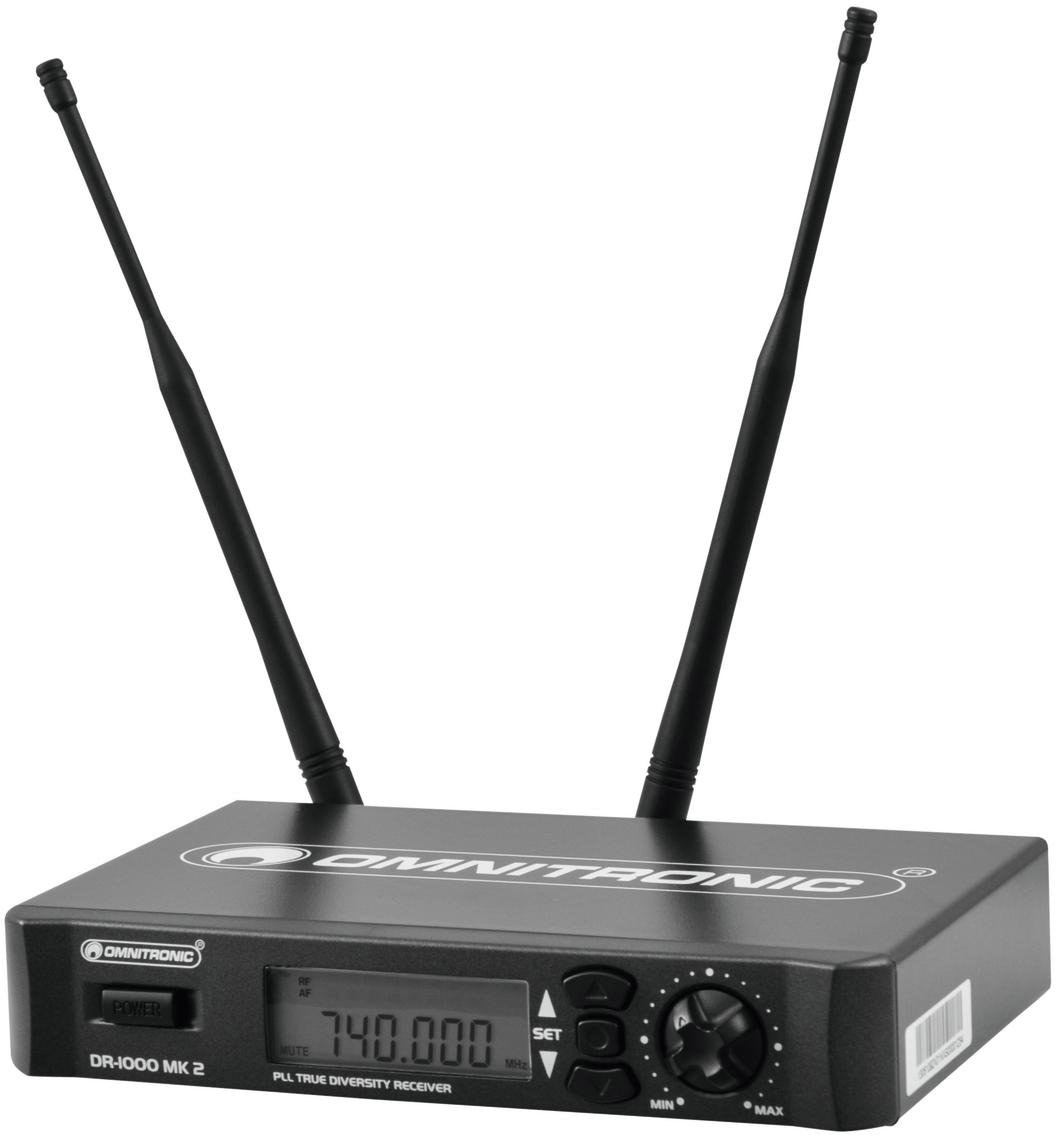

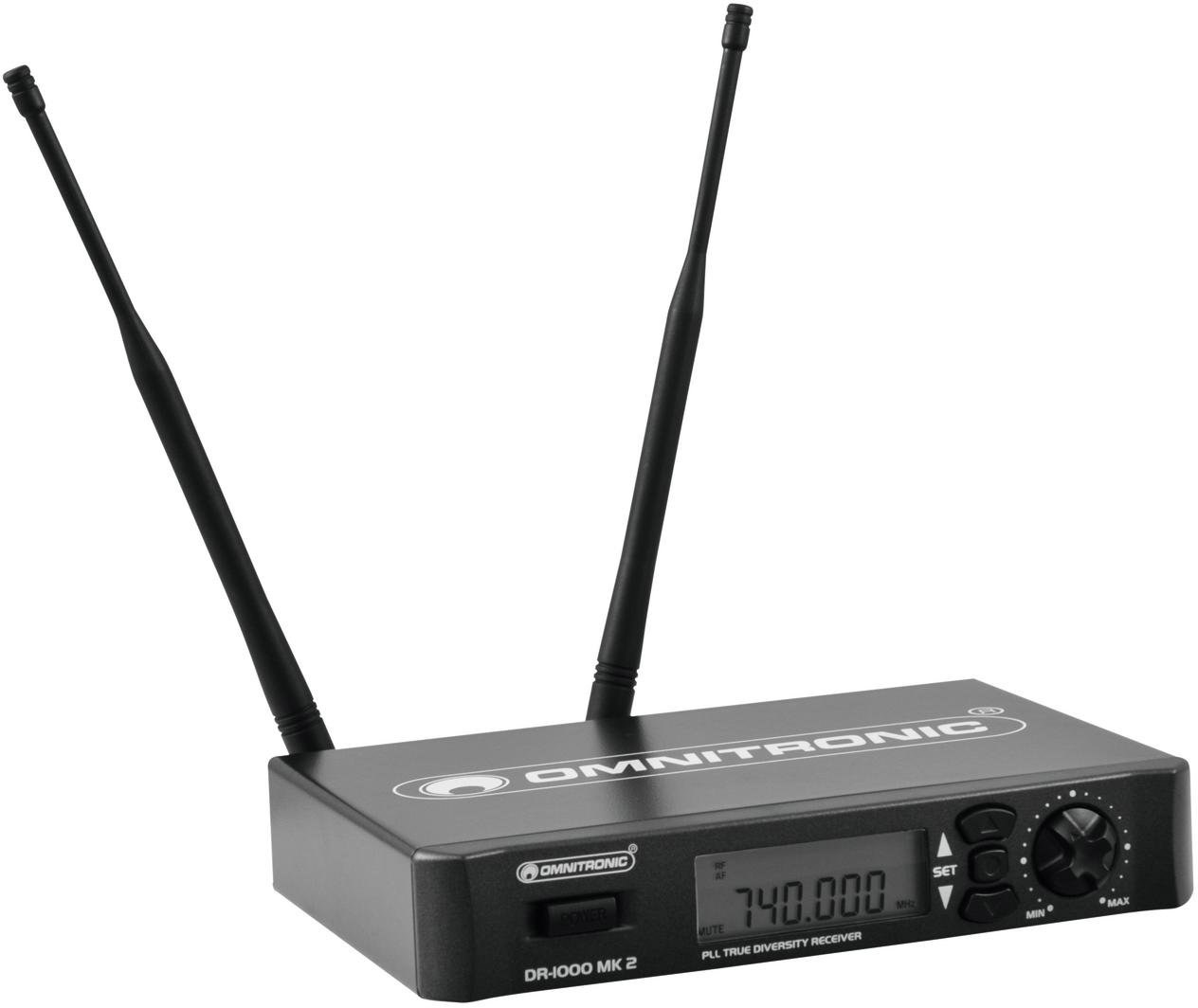

OMNITRONIC DR-1000 MK2 Wireless receiver

Product No.: 200003520

€ 239,00

incl. tax, Free shipping to Germany [International shipping costs]

Availability:

In stock; Delivery time 1-3 day

Quantity

Product description:

A variety of options with multi-frequency wireless systems

With the new 1000 series, OMNITRONIC offers future proof microphones in the frequency range UHF 740-764 MHz. Due to the high number of switchable frequencies (192), up to 16 intermodulation free wireless systems can be operated at once. This enables a variety of combinations between several receivers, hand-held microphones, bodypacks with singer headset or moderator headset or lavalier microphone.

Multifrequency wireless receiver, True Diversity

Multifrequency wireless receiver with UHF pilot tone technology (PLL)
High-quality true diversity reception
Two removable antennas (BNC connection)
Operation in the low-interference UHF band (740-764 MHz)
192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
Operation range with line of sight 100 meters
System expandable to up to 16 receivers with 16 microphones

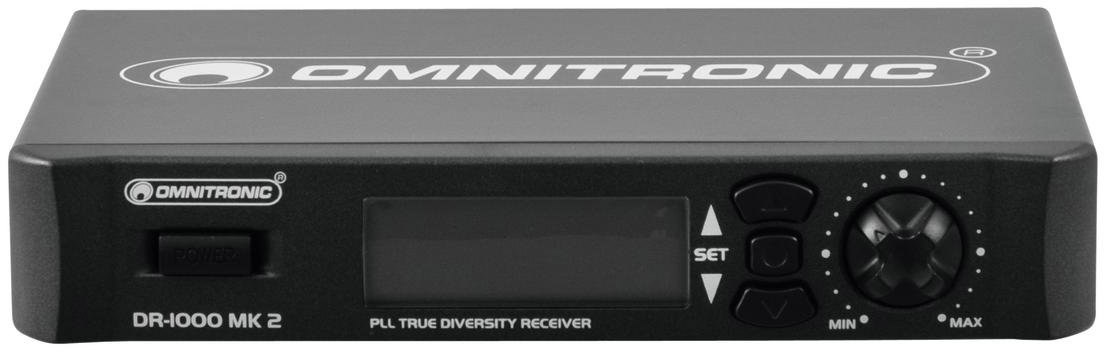

LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
Automatic frequency scan
Output level control
Lock function avoids undesired changes by users, also accidental shutdown
Mute mode when signal is absent or too weak
6.3 mm and XLR output

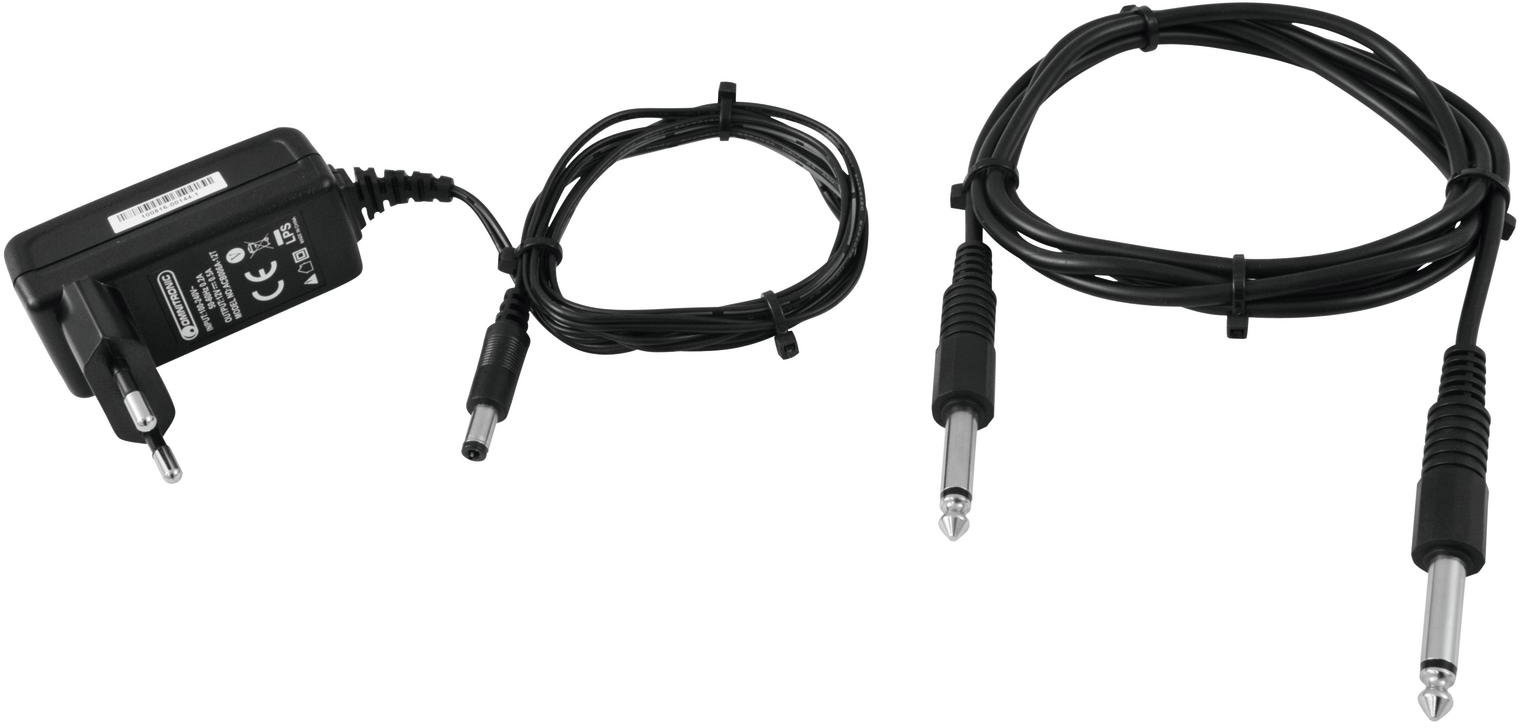

Operation via supplied power unit
Rugged metal housing
Optional mounting frame for rack installation available
Optional antenna boosters and antenna distributor for easy setup of several receivers
Optional hand-held microphone, pocket transmitter, lavalier microphone and headset available

System:	True diversity, one channel
Carrier frequency:	UHF 740-764 MHz
Switching bandwidth:	24 MHz
No. of frequencies:	192
Frequency steps:	125 kHz
Frequency stability:	± 0.005 %
T.H.D.:	<0.6 % at 1 kHz
S/N ratio:	>105 dB
Dynamic range:	>96 dB
Modulation method:	FM
Coverage:	100 m (with line-of-sight)
AF response:	40-18000 Hz

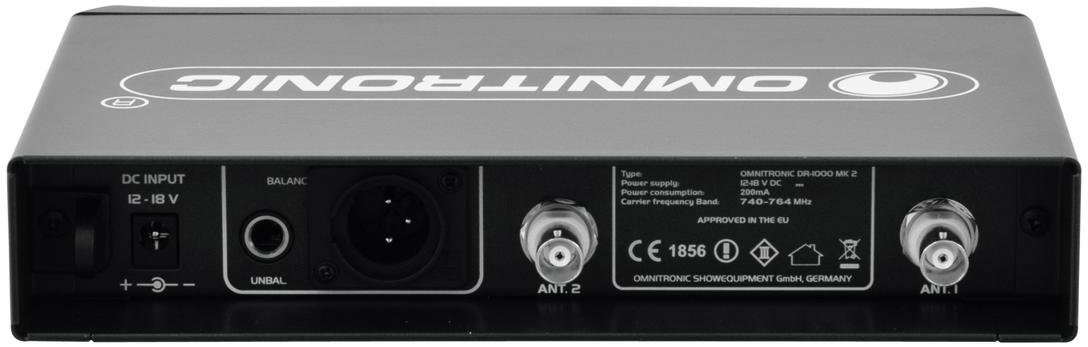

Audio output:	3-pin XLR, balanced
	6.3 mm jack, unbalanced
Power supply:	100-240 V AC, 50/60 Hz ~
	via supplied power unit
Power consumption:	6 W
Dimensions:	213 x 150 x 40 mm
Weight:	600 g
