Product description:

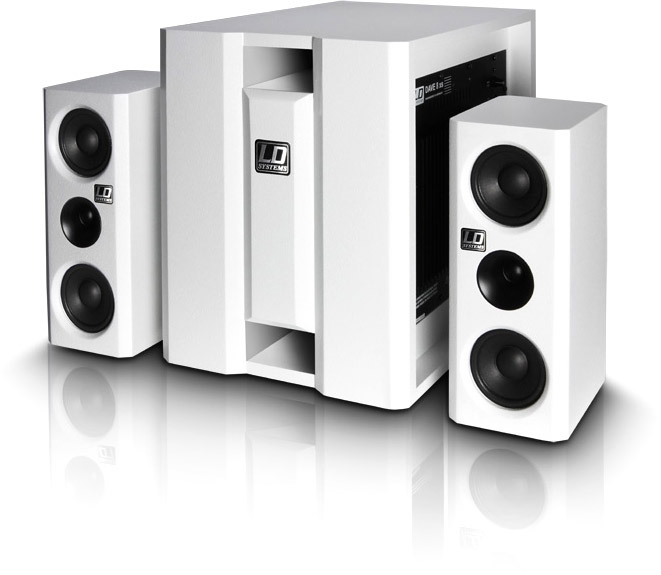

The LD Systems DAVE8XS is a portable multimedia system equipped of an 8" band pass subwoofer (150 W RMS) and two 4" satellites (2 x 100 W).
It was designed for all kinds of multimedia applications such as home recording, studio monitoring, PC speaker, small sized public facilities (such as bars/pubs) etc. The A/B class amplification module integrated in the subwoofer delivers a high output and powers both sub and satellites. The LD Systems DAVE8XS features XLR and RCA Phono Line inputs, as well as all common protective circuits. The integrated limiter keeps your system safe from an overload and will guarantee a long operational life. On the side of the sub you will find an on/off switch, an 180° phase reverse and a separate subwoofer volume knob allowing you to find the perfect sound balance between crystal clear high tones, punchy mids and powerful bass. The satellites feature a mic stand flange allowing a quick installation and configuration of your system. A "must-have" for all sound lovers!
Max SPL: 117 dB
Balanced Inputs
Integrated amplification module
Phase reverse
Subwoofer volume control
Recessed thread for wall mounting
3/8" microphone stand adapter
Front cover in white included
Wall mount brackets optional
Specifications
Model name: LDDAVE8XSW
Type:
Subwoofer: Band Pass
Satellites: Sealed
Components:
Subwoofer: 1 x 8" Custom Made
Satellites:
LF: 2 x 4" Custom Made
HF: 1" Custom Made
Amplification: Class A / B
Dispersion: 60° x 60°
Power Output (RMS):
Subwoofer: 150 W
Satellites: 2 x 100 W
Frequency Range: 45 Hz - 19 kHz
SPL (1 W / 1 m): 96 dB
Max SPL: 117 db
Protection: Short circuit, Over-current, Limiter

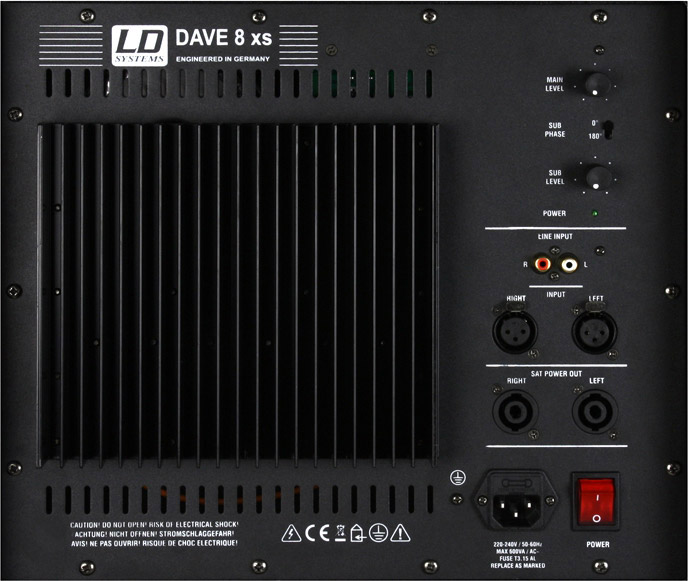

Controls: Volume, Sub Level, 180 ° Phase Reverse, On / Off Switch
Indicators: Power
Connectors:
Subwoofer:
Input: Line: XLR, RCA
Output: SPKn: Powered output for passive Satellites
Satellites:

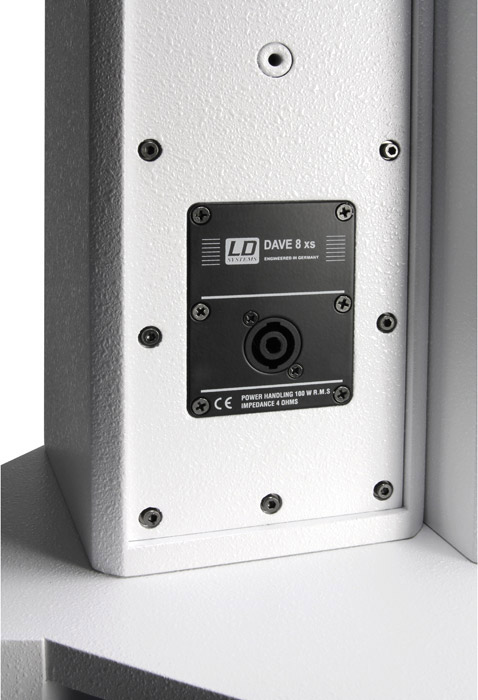

Input: SPKn
Cooling system: Heatsink
Power supply: Transformer
Cabinet Material:
Subwoofer: 15 mm MDF
Satellites: 12 mm MDF
Cabinet Surface: Painting
Dimensions (W x H x D):
Subwoofer: 352 x 430 x 434 mm
Satellites: 144 x 350 x 170 mm
