Product description:

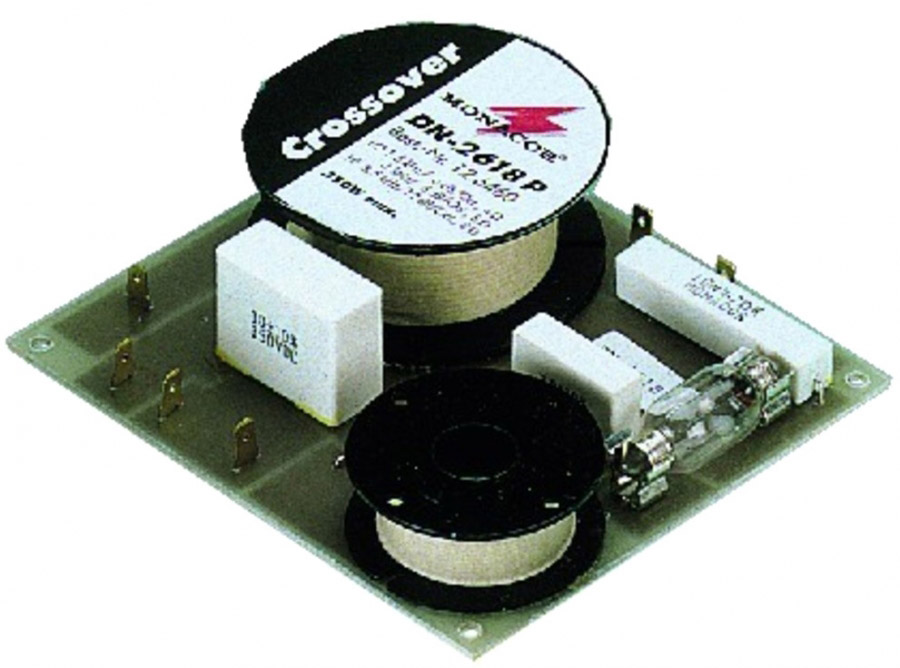

2-way crossover network for 8Ω
With tweeter protection (P), film capacitors, low-pass filter also suitable for 4Ω.
| General Information: |
2-way
|
| Output impedance: |
8Ω (bass also 4Ω)
|

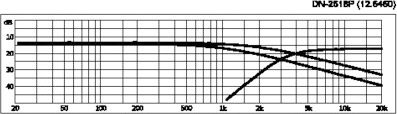

| Crossover frequency: |
3kHz, (B = 4Ω: 1.7kHz)
|
| Slope/oct.: |
6dB/18dB
|
| Max. input power: |
350W
|
| Dimensions: |
125x32x110mm
|
| Weight: |
0.46kg
|
