Product description:

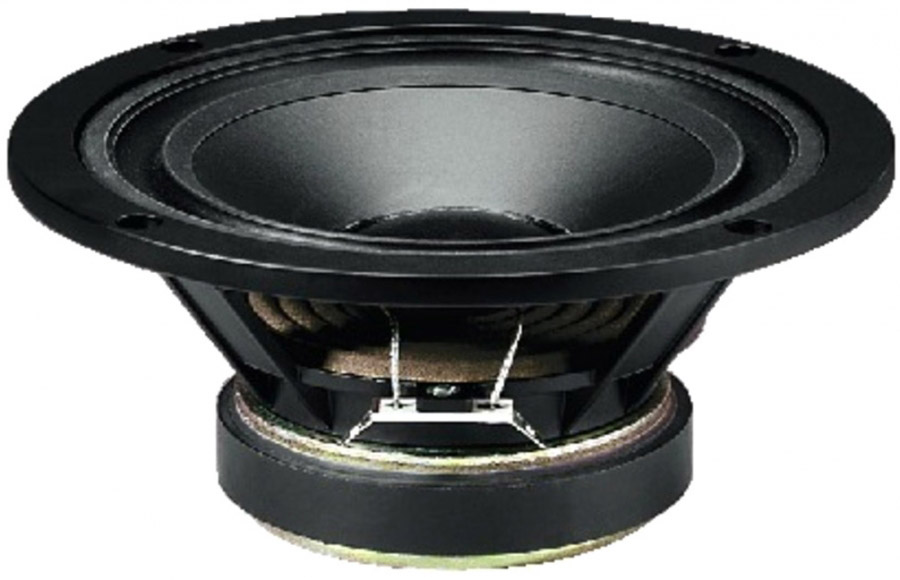

HiFi bass-midrange speaker, 80WMAX, 8Ω
Speakers of very high quality with extensive equipment, round aluminium diecast basket with recessed screw head holes, inverse rubber surround, drilled pole core, excellent cone dampening, exceptionally deep bass reproduction for any bass and bass-midrange application.
Klang+Ton
"It is almost unbelievable that this speaker is available at such a favourable price!"
| Impedance (Z): |
8Ω
|
| Resonant frequency (fs): |
38Hz
|
| Max. frequency range: |
f3-5,000Hz
|
| Music power: |
80WMAX
|
| Power rating (P): |
50WRMS
|
| SPL (1W/1m): |
90dB
|
| Suspension compl. (Cms): |
1.43mm/N
|
| Moving mass (Mms): |
12.5g
|
| Mech. Q factor (Qms): |
2.38
|
| Electr. Q factor (Qes): |
0.55
|
| Total Q factor (Qts): |
0.44
|
| Equivalent volume (Vas): |
37 l
|
| DC resistance (Re): |
6.2Ω
|
| Force factor (BxL): |
5.9Tm
|
| Voice coil induct. (Le): |
0.45mH
|
| Voice coil diameter: |
25mm
|
| Voice coil former: |
aluminium
|
| Linear excursion (XMAX): |
±3mm
|
| Eff. cone area (Sd): |
137cm2
|
| Magnet weight: |
13oz.
|
| Weight: |
1.32kg
|
