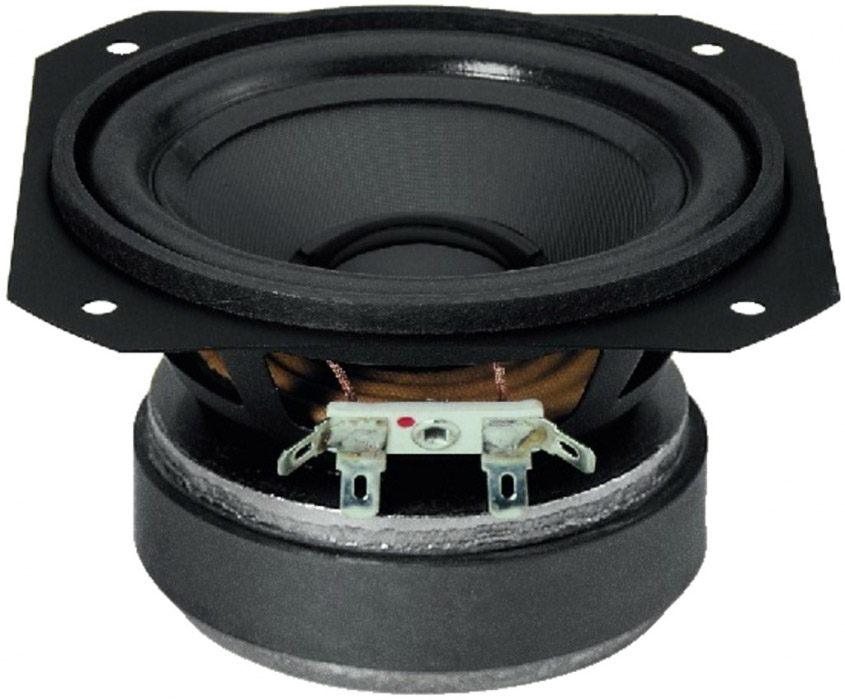

SPP-110/8 HiFi bass-midrange speaker, 60WMAX, 8Ω (/8) and
Product No.: 250105415
Availability:
In stock; Delivery time 1-3 day
Product description:
HiFi bass-midrange speaker, 60WMAX, 8Ω (/8) and 4Ω (/4)
With carbonised plastic cone, drilled pole core, linear wide frequency response in very small cabinets.
SPP-110/4 = 4Ω
SPP-110/8 = 8Ω
| Impedance (Z): |
8Ω
|
| Resonant frequency (fs): |
55Hz
|
| Max. frequency range: |
f3-8,000Hz
|
| Music power: |
60WMAX
|
| Power rating (P): |
30WRMS
|
| SPL (1W/1m): |
90dB
|
| Suspension compl. (Cms): |
1.89mm/N
|
| Moving mass (Mms): |
4.4g
|
| Mech. Q factor (Qms): |
2.01
|
| Electr. Q factor (Qes): |
0.46
|
| Total Q factor (Qts): |
0.37
|
| Equivalent volume (Vas): |
8 l
|
| DC resistance (Re): |
6.5Ω
|
| Force factor (BxL): |
4.6Tm
|
| Voice coil induct. (Le): |
0.4mH
|
| Voice coil diameter: |
25.5mm
|
| Voice coil former: |
aluminium
|
| Linear excursion (XMAX): |
±2mm
|
| Eff. cone area (Sd): |
55cm2
|
| Magnet weight: |
280g
|
| Weight: |
0.9kg
|
