Product description:

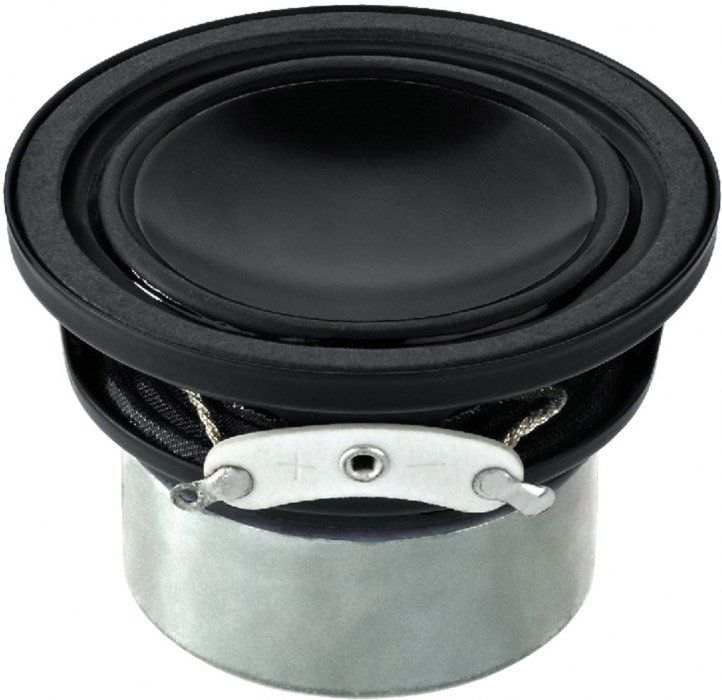

Miniature HiFi full range speaker, 30WMAX, 8Ω
Mini full range speaker, suitable for HiFi, round steel basket with rear ventilation of the centering spider (adhesive mounting or clamp mounting), inverse laminated cone, efficient neodymium drive system for a perfect full range reproduction with an excellent efficiency in proportion to the size. 25mm voice coil of high power capability.
| Impedance (Z): |
8Ω
|
| Resonant frequency (fs): |
157Hz
|
| Max. frequency range: |
f3-22,000Hz
|
| Music power: |
30WMAX
|
| Power rating (P): |
15WRMS
|
| SPL (1W/1m): |
87dB
|
| Suspension compl. (Cms): |
0.76mm/N
|
| Moving mass (Mms): |
1.3g
|
| Mech. Q factor (Qms): |
4.52
|
| Electr. Q factor (Qes): |
0.46
|
| Total Q factor (Qts): |
0.42
|
| Equivalent volume (Vas): |
0.2 l
|
| DC resistance (Re): |
6.9Ω
|
| Force factor (BxL): |
4.5Tm
|
| Voice coil induct. (Le): |
0.13mH
|
| Voice coil diameter: |
Ø 25mm
|
| Voice coil former: |
Kapton
|
| Linear excursion (XMAX): |
±0.5mm
|
| Eff. cone area (Sd): |
13cm2
|
| Magnet weight: |
neodymium
|
| Weight: |
0.17kg
|
