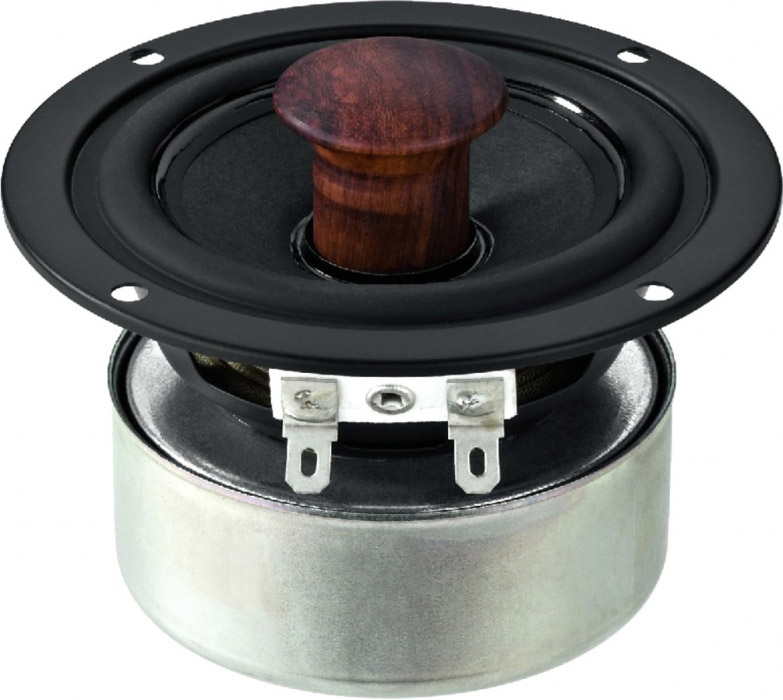

SPX-32M HiFi full range speaker, 40WMAX, 8Ω
Product No.: 250122520
Availability:
In stock; Delivery time 1-3 day
Product description:
HiFi full range speaker, 40WMAX, 8Ω
- Compact HiFi full range speaker with a very good sound quality
- High-quality paper cone
- Wooden phase plug for optimising the radiation
- Rear ventilation of the centering spider
- Shielded magnetic system
- Application in small speakers or satellite systems
- Ideally suited for the application in FAST speakers (full range and subwoofer technology)
| Impedance (Z): |
8Ω
|
| Resonant frequency (fs): |
110Hz
|
| Max. frequency range: |
f3-22,000Hz
|
| Music power: |
40WMAX
|
| Power rating (P): |
20WRMS
|
| SPL (1W/1m): |
88dB
|
| Suspension compl. (Cms): |
1.11mm/N
|
| Moving mass (Mms): |
1.7g
|
| Mech. Q factor (Qms): |
7.66
|
| Electr. Q factor (Qes): |
0.60
|
| Total Q factor (Qts): |
0.56
|
| Equivalent volume (Vas): |
1.6 l
|
| DC resistance (Re): |
6.6Ω
|
| Force factor (BxL): |
3.69Tm
|
| Voice coil induct. (Le): |
0.18mH
|
| Voice coil diameter: |
Ø 20mm
|
| Voice coil former: |
Kapton
|
| Linear excursion (XMAX): |
±1.1mm
|
| Eff. cone area (Sd): |
32cm2
|
| Magnet weight: |
99g
|
| Weight: |
0.52kg
|
