Product description:

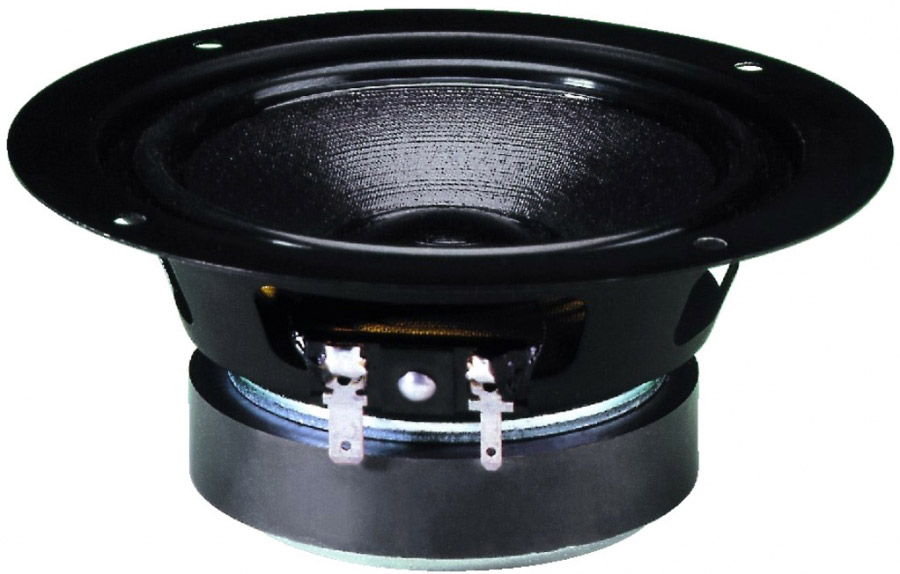

Midrange Speaker
Shows the excellent reproduction quality that can be achieved, if the possibilities of approved materials are fully utilised. By using 4Ω, this speaker is a hot tip for the audiophile car HiFi range.
HiFi midrange speaker, 120WMAX, 4Ω
High-end technology, Made in Germany, coated special cone with highly dampening dust cap and extra flat basket (does not have to be recessed), best possible linearity and a perfect mass-drive ratio with a wide bandwidth, for the sound of the extra class.
Klang+Ton
"This speaker is the surprise of the test. Highly recommendable!"
| Impedance (Z): |
4Ω
|
| Resonant frequency (fs): |
95Hz
|
| Max. frequency range: |
fx-10,000Hz
|
| Music power: |
120WMAX (400-5,000Hz)
|
| Power rating (P): |
40WRMS
|
| SPL (1W/1m): |
91dB
|
| Suspension compl. (Cms): |
0.62mm/N
|
| Moving mass (Mms): |
4.6g
|
| Mech. Q factor (Qms): |
2.38
|
| Electr. Q factor (Qes): |
0.48
|
| Total Q factor (Qts): |
0.40
|
| Equivalent volume (Vas): |
2.7 l
|
| DC resistance (Re): |
3.2Ω
|
| Force factor (BxL): |
4.3Tm
|
| Voice coil induct. (Le): |
0.18mH
|
| Voice coil diameter: |
25mm
|
| Voice coil former: |
aluminium
|
| Linear excursion (XMAX): |
±1mm
|
| Eff. cone area (Sd): |
55cm2
|
| Magnet weight: |
240g
|
| Weight: |
0.6kg
|
