Product description:

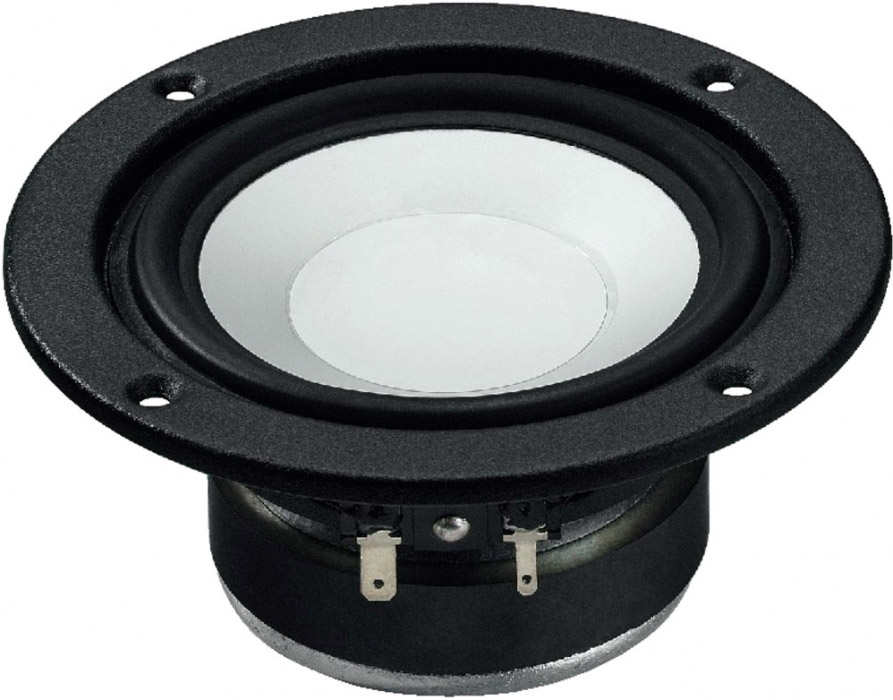

High-tech midrange speaker, 80WMAX, 8Ω
Made in Germany with cone and dust cap completely of aluminium, special design for particular reinforcing, the extra high cone stability ensures a maximum of fine dynamics. If used as a single midrange speaker and particularly in D'Appolito arrangements, this speaker is of absolute high-end quality.
ILMAG 12

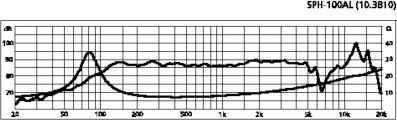

+ linear frequency response
+ stable cones
+ good price-performance ratio
| Impedance (Z): |
8Ω
|
| Resonant frequency (fs): |
80Hz
|
| Max. frequency range: |
fx-5,000Hz
|
| Music power: |
80WMAX/120WMAX (> 120Hz)
|
| Power rating (P): |
40WRMS
|
| SPL (1W/1m): |
87dB
|
| Suspension compl. (Cms): |
0.79mm/N
|
| Moving mass (Mms): |
4.9g
|
| Mech. Q factor (Qms): |
3.05
|
| Electr. Q factor (Qes): |
0.67
|
| Total Q factor (Qts): |
0.55
|
| Equivalent volume (Vas): |
3.2 l
|
| DC resistance (Re): |
6.2Ω
|
| Force factor (BxL): |
4.81Tm
|
| Voice coil induct. (Le): |
0.3mH
|
| Voice coil diameter: |
25mm
|
| Voice coil former: |
aluminium
|
| Linear excursion (XMAX): |
±1.5mm
|
| Eff. cone area (Sd): |
55cm2
|
| Magnet weight: |
250g
|
| Weight: |
0.65kg
|
