Product description:
Especially high-quality HiFi bass speakers and HiFi bass-midrange speakers of perfect manufacturing quality and elegant design, with aluminium basket, carbon fibre cone and especially long excursion, an impulsive bass reproduction of low fundamental resonance of partly surprisingly small cabinets.

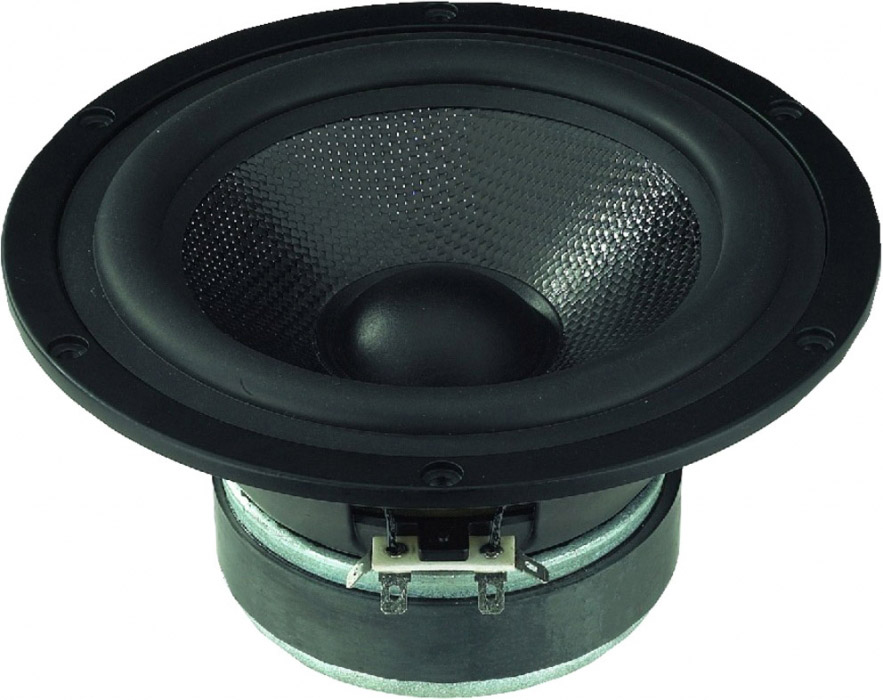

High-end bass-midrange speaker, 120WMAX, 8Ω,
with an excellently dampened cone and extra long excursion, remarkably low distortion for a particularly natural reproduction, very low limit frequency, especially suitable as a bass-midrange speaker in 2-way combinations, yet small volume requirements.
| Impedance (Z): |
8Ω
|
| Resonant frequency (fs): |
38Hz
|
| Max. frequency range: |
f3-3,500Hz
|
| Music power: |
120WMAX
|
| Power rating (P): |
60WRMS
|
| SPL (1W/1m): |
88dB
|
| Suspension compl. (Cms): |
1.06mm/N
|
| Moving mass (Mms): |
16.43g
|
| Mech. Q factor (Qms): |
7.22
|
| Electr. Q factor (Qes): |
0.27
|
| Total Q factor (Qts): |
0.26
|
| Equivalent volume (Vas): |
24 l
|
| DC resistance (Re): |
6Ω
|
| Force factor (BxL): |
9.44Tm
|
| Voice coil induct. (Le): |
0.8mH
|
| Voice coil diameter: |
37mm
|
| Voice coil former: |
Kapton
|
| Linear excursion (XMAX): |
±4mm
|
| Eff. cone area (Sd): |
127cm2
|
| Magnet weight: |
600g
|
| Weight: |
2kg
|
