Product description:
Top HiFi bass speaker, 150WMAX, 8Ω

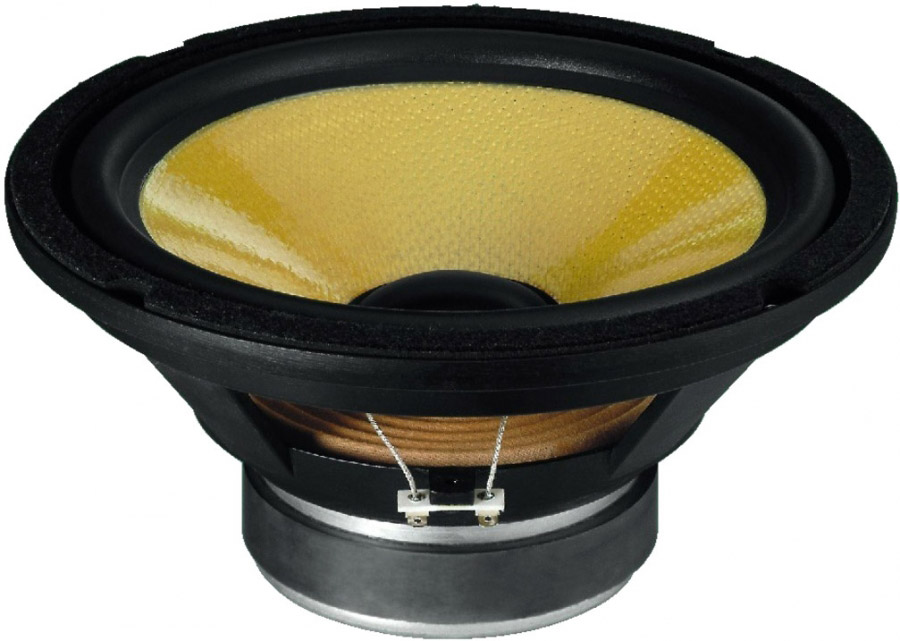

Finely textured Kevlar cone, aluminium diecast basket, long excursion, a very deep bass in compact bass-reflex cabinets already. In closed cabinets, a dry bass reproduction comfortable to listen to (particularly suitable for use in rooms of rumbling sound). Suitable for any HiFi and high-end application.
| Impedance (Z): |
8Ω
|
| Resonant frequency (fs): |
23Hz
|

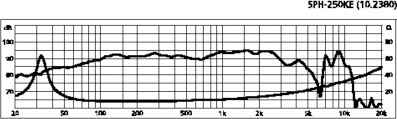

| Max. frequency range: |
f3-3,000Hz
|
| Music power: |
150WMAX
|
| Power rating (P): |
100WRMS
|
| SPL (1W/1m): |
90dB
|
| Suspension compl. (Cms): |
0.94mm/N
|
| Moving mass (Mms): |
45g
|
| Mech. Q factor (Qms): |
5.25
|
| Electr. Q factor (Qes): |
0.45
|
| Total Q factor (Qts): |
0.41
|
| Equivalent volume (Vas): |
204 l
|
| DC resistance (Re): |
6.1Ω
|
| Force factor (BxL): |
9.4Tm
|
| Voice coil induct. (Le): |
0.7mH
|
| Voice coil diameter: |
50mm
|
| Voice coil former: |
Kapton
|
| Linear excursion (XMAX): |
±4.75mm
|
| Eff. cone area (Sd): |
346cm2
|
| Magnet weight: |
840g + 50g
|
| Weight: |
3kg
|
