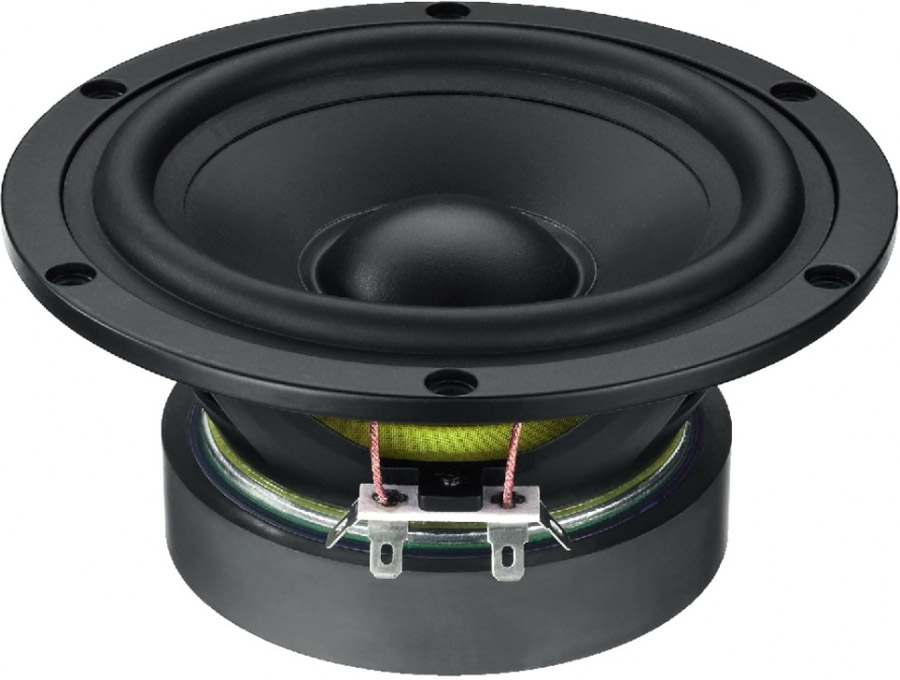

SPH-5M HiFi bass-midrange speaker, 80WMax, 8Ω
Product No.: 250122685
Availability:
Near-term available;
Delivery time approx. 1 week
Product description:
HiFi bass-midrange speaker, 80WMax, 8Ω
- High-quality HiFi bass-midrange speaker of long excursion
- Dampened low-resonance polypropylene cone
- Robust diecast aluminium basket of an attractive design with a 6-hole screw connection
- Magnetic system with pole core drilling and protruding rear pole plate
- For general applications in compact bass-reflex, TML and closed speaker systems
- Very well-suited also as a midrange speaker in 3-way speaker systems
| Impedance (Z): |
8Ω
|
| Resonant frequency (fs): |
45Hz
|
| Max. frequency range: |
f3-4,000Hz
|
| Music power: |
80WMAX
|
| Power rating (P): |
40WRMS
|
| SPL (1W/1m): |
88dB
|
| Suspension compl. (Cms): |
1.06mm/N
|
| Moving mass (Mms): |
11.73g
|
| Mech. Q factor (Qms): |
2.89
|
| Electr. Q factor (Qes): |
0.47
|
| Total Q factor (Qts): |
0.41
|
| Equivalent volume (Vas): |
13.47 l
|
| DC resistance (Re): |
6.3Ω
|
| Force factor (BxL): |
6.42Tm
|
| Voice coil induct. (Le): |
0.54mH
|
| Voice coil diameter: |
Ø 25mm
|
| Voice coil former: |
aluminium
|
| Linear excursion (XMAX): |
±3.5mm
|
| Eff. cone area (Sd): |
95cm2
|
| Magnet weight: |
620g
|
| Weight: |
1.25kg
|
