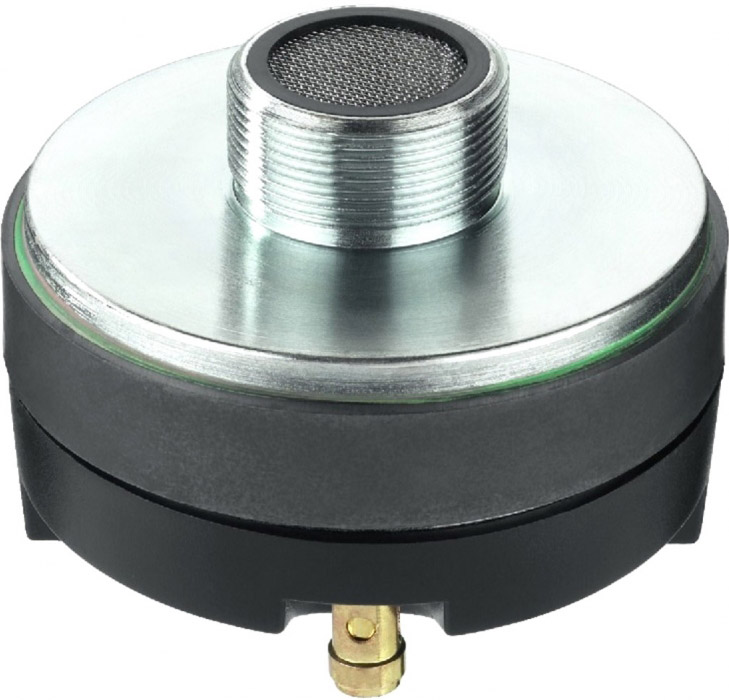

MRD-34PA PA horn driver, 70WMAX, 8Ω
Product No.: 250122570
Availability:
In stock; Delivery time 1-3 day
Product description:
PA horn driver, 70WMAX, 8Ω
With standard 35mm (1 3/8 ") thread. Component of the speakers PAB-108MK2, PAB-110MK2 and PAB-112MK2 as well as of the matching PAKs. The acoustic values indicated result from the combination with horn MRH-83. A replacement voice coil is available (PAB-128/VC).
| Impedance (Z): |
8Ω
|
| Resonant frequency (fs): |
1,200Hz
|
| Max. frequency range: |
fx-20,000Hz
|
| Rec. crossov. frequ. (fmax.) (12dB/oct.): |
4,000Hz
|
| Music power: |
70WMAX
|
| Power rating (P): |
35WRMS
|
| SPL (1W/1m): |
104dB
|
| Radiation angle (vert./hor.): |
dep. on horn
|
| Voice coil diameter: |
34.5mm
|
| Magnet diameter: |
87mm
|
| Mounting cutout: |
dep. on horn
|
| Mounting depth: |
dep. on horn
|

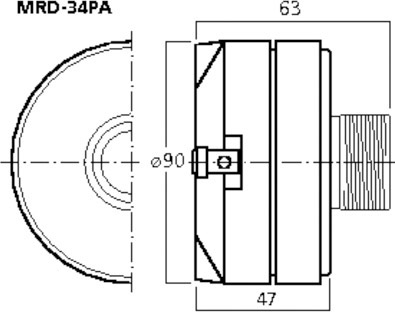

| Dimensions: |
Ø 87mm x 65mm
|
| Weight: |
1,100g
|
