Product description:

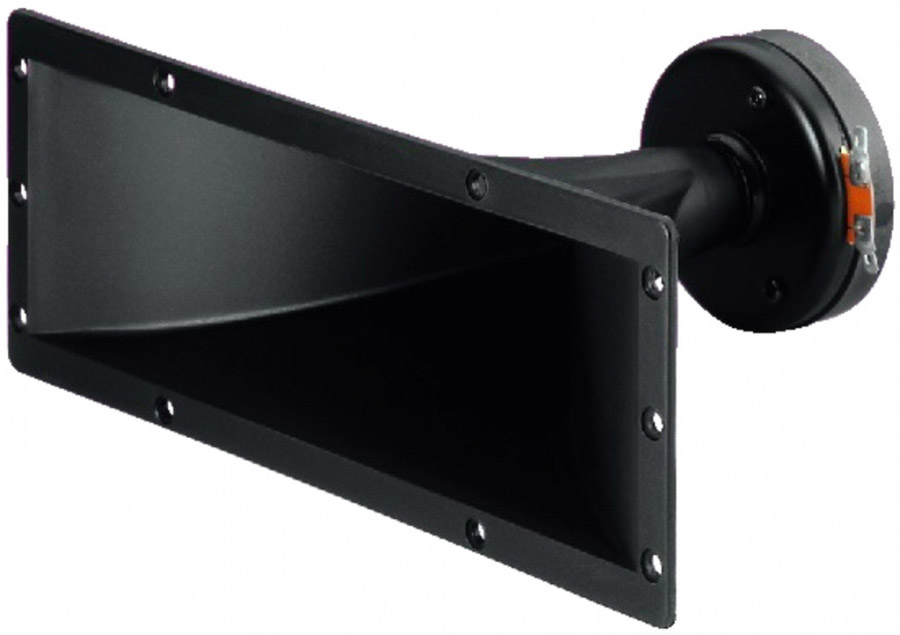

PA horn tweeter, 8Ω
Plastic version, good efficiency and a wide bandwidth, suitable for universal PA applications. Replacement voice coils are available at option (MHD-1255/VC).
| Impedance (Z): |
8Ω
|
| Resonant frequency (fs): |
2,000Hz
|
| Max. frequency range: |
fx-15kHz
|
| Rec. crossov. frequ. (fmax.) (12dB/oct.): |
3,000Hz
|
| Music power: |
55WMAX
|
| Power rating (P): |
30WRMS
|
| SPL (1W/1m): |
103dB
|
| Radiation angle (vert./hor.): |
45°/90°
|
| Voice coil diameter: |
24.6mm
|
| Magnet diameter: |
80mm
|
| Mounting cutout: |
240x80mm
|
| Mounting depth: |
187mm
|
| Dimensions: |
269x101mm
|
| Weight: |
1.05kg
|
