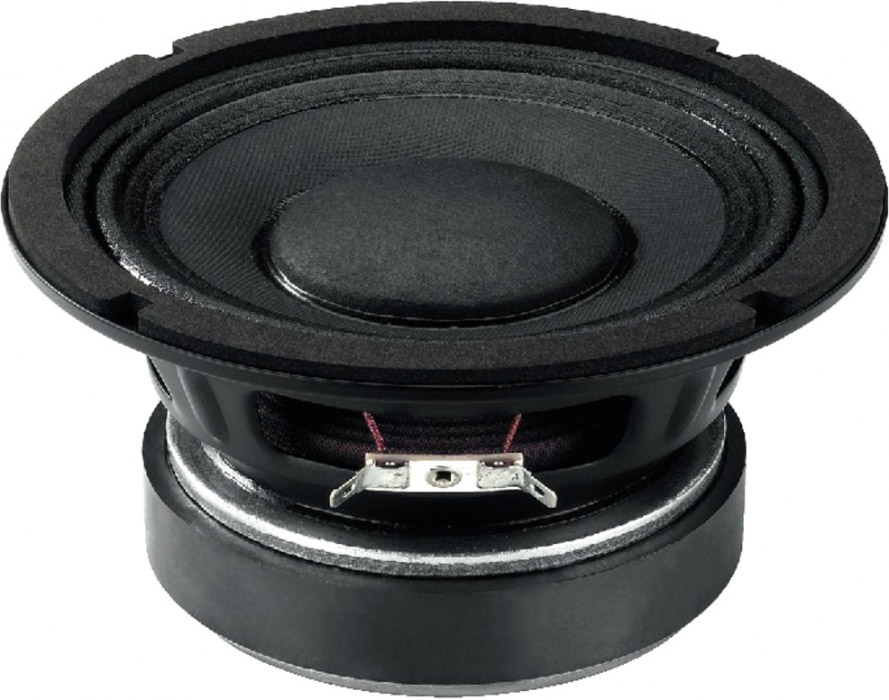

SP-6/100PA PA midrange speaker, 200WMAX, 8Ω
Product No.: 250105525
Availability:
In stock; Delivery time 1-3 day
Product description:
PA midrange speaker, 200WMAX, 8Ω
Very linear frequency response with high efficiency, perfect midrange speaker for powerful 3-way arrangements in the semiprofessional range.
Klang+Ton
"This is the big hit of the test." (10 midrange speakers of high efficiency with a Ø of 17cm and 20cm)
| Impedance (Z): |
8Ω
|
| Resonant frequency (fs): |
90Hz
|
| Max. frequency range: |
f3-8,000Hz
|
| Music power: |
200WMAX
|
| Power rating (P): |
100WRMS
|
| SPL (1W/1m): |
94dB
|
| Suspension compl. (Cms): |
0.28mm/N
|
| Moving mass (Mms): |
11.2g
|
| Mech. Q factor (Qms): |
4.24
|
| Electr. Q factor (Qes): |
0.49
|
| Total Q factor (Qts): |
0.44
|
| Equivalent volume (Vas): |
8 l
|
| DC resistance (Re): |
6.7Ω
|
| Force factor (BxL): |
9.3Tm
|
| Voice coil induct. (Le): |
0.5mH
|
| Voice coil diameter: |
40mm
|
| Voice coil former: |
Kapton
|
| Linear excursion (XMAX): |
±0.75mm
|
| Eff. cone area (Sd): |
139cm2
|
| Magnet weight: |
850g
|
| Weight: |
2.4kg
|
