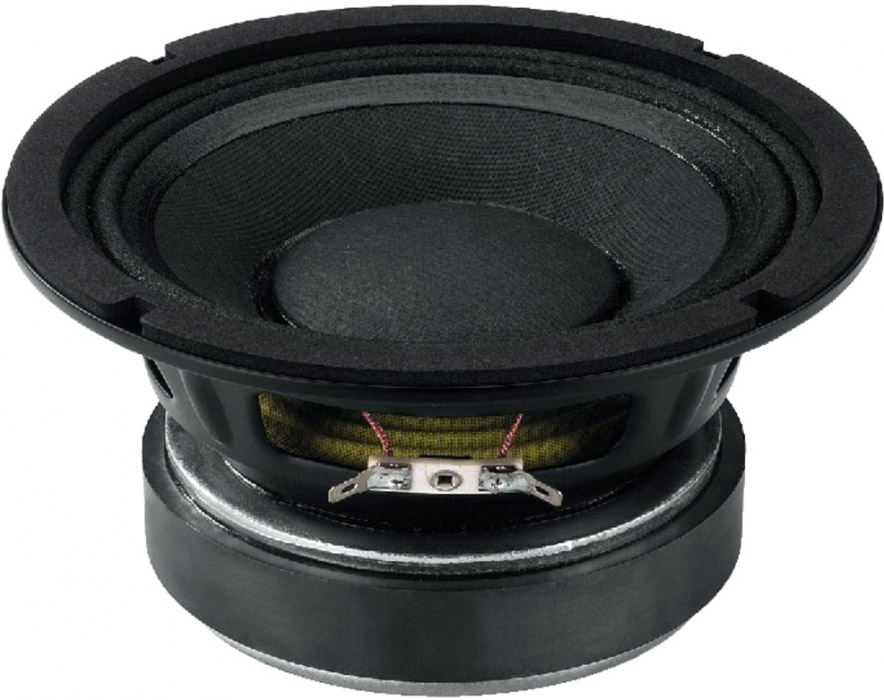

SP-6/150PA PA midrange speaker, 300WMAX, 8Ω
Product No.: 250105795
Availability:
In stock; Delivery time 1-3 day
Product description:
PA midrange speaker, 300WMAX, 8Ω
For PA midrange applications of high power rating with the use of mid-high range horns at the same time. Very well-suited for dual arrangements.
| Impedance (Z): |
8Ω
|
| Resonant frequency (fs): |
73Hz
|
| Max. frequency range: |
f3-6,000Hz
|
| Music power: |
300WMAX
|
| Power rating (P): |
150WRMS
|
| SPL (1W/1m): |
93dB
|
| Suspension compl. (Cms): |
0.31mm/N
|
| Moving mass (Mms): |
15.2g
|
| Mech. Q factor (Qms): |
5.31
|
| Electr. Q factor (Qes): |
0.46
|
| Total Q factor (Qts): |
0.42
|
| Equivalent volume (Vas): |
8.5 l
|
| DC resistance (Re): |
6.5Ω
|
| Force factor (BxL): |
9.9Tm
|
| Voice coil induct. (Le): |
0.6mH
|
| Voice coil diameter: |
50mm
|
| Voice coil former: |
Kapton
|
| Linear excursion (XMAX): |
±1mm
|
| Eff. cone area (Sd): |
139cm2
|
| Magnet weight: |
850g
|
| Weight: |
2.1kg
|
