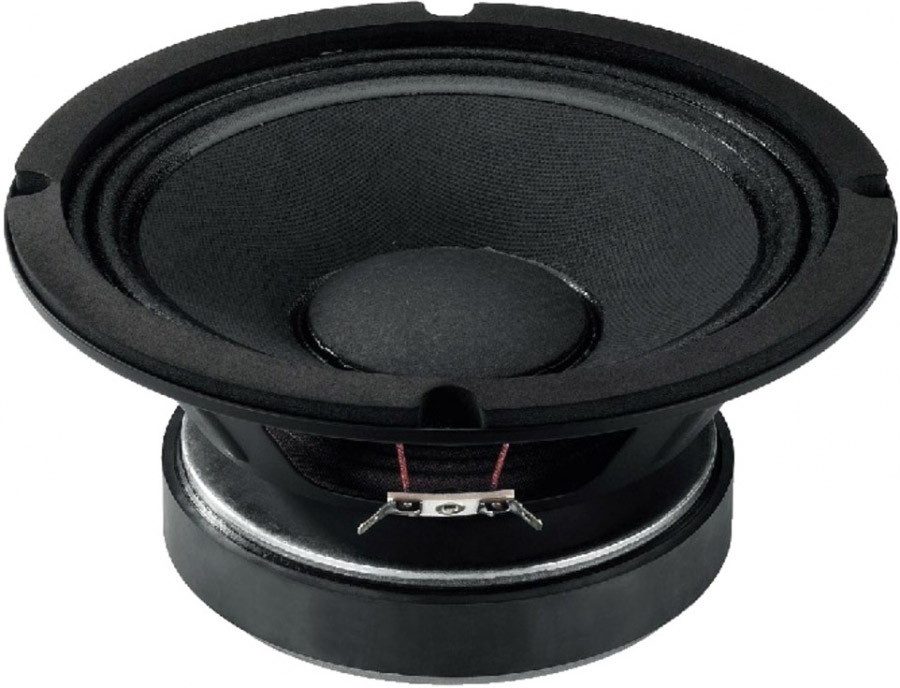

SP-8/150PA PA bass-midrange speaker, 300WMAX, 8Ω
Product No.: 250105530
Availability:
In stock; Delivery time 1-3 day
Product description:
PA bass-midrange speaker, 300WMAX, 8Ω
Good medium efficiency and wide bandwidth radiation for midrange applications.
| Impedance (Z): |
8Ω
|
| Resonant frequency (fs): |
88Hz
|
| Max. frequency range: |
f3-8,000Hz
|
| Music power: |
300WMAX
|
| Power rating (P): |
150WRMS
|
| SPL (1W/1m): |
96dB
|
| Suspension compl. (Cms): |
0.16mm/N
|
| Moving mass (Mms): |
20g
|
| Mech. Q factor (Qms): |
4.12
|
| Electr. Q factor (Qes): |
0.48
|
| Total Q factor (Qts): |
0.43
|
| Equivalent volume (Vas): |
12 l
|
| DC resistance (Re): |
6.9Ω
|
| Force factor (BxL): |
12.6Tm
|
| Voice coil induct. (Le): |
0.6mH
|
| Voice coil diameter: |
50mm
|
| Voice coil former: |
Kapton
|
| Linear excursion (XMAX): |
±1.25mm
|
| Eff. cone area (Sd): |
219cm2
|
| Magnet weight: |
1.1kg
|
| Weight: |
3kg
|
