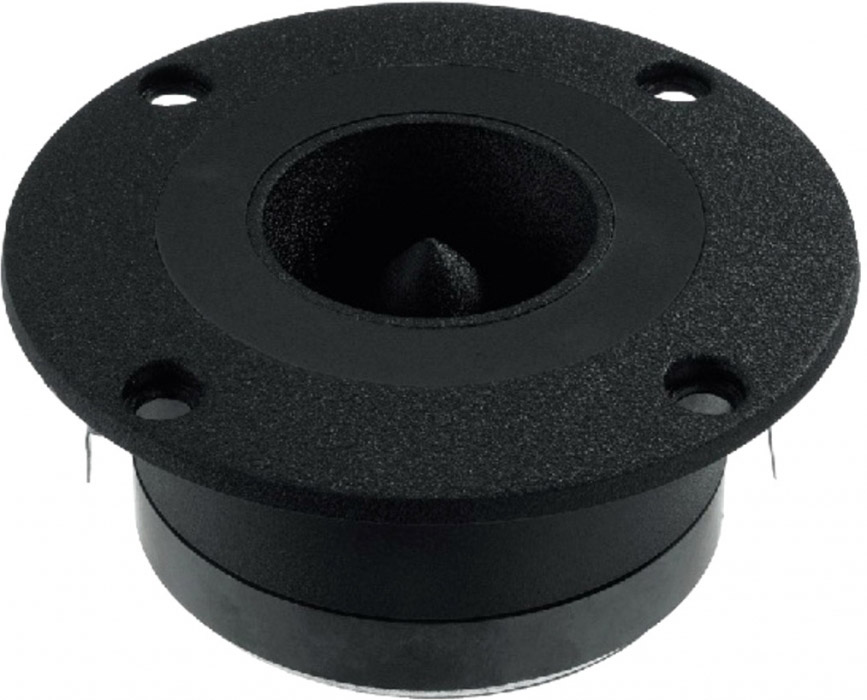

HT-958PA/SW Ring radiator tweeter, 60WMAX, 8Ω
Product No.: 250105660
Availability:
In stock; Delivery time 1-3 day
Product description:
Ring radiator tweeter, 60WMAX, 8Ω
For PA and HiFi, with a good efficiency and a very wide bandwidth radiation with great linearity.
| Impedance (Z): |
8Ω
|
| Resonant frequency (fs): |
2.2kHz
|
| Max. frequency range: |
fx-20kHz
|
| Rec. crossov. frequ. (fmax.) (12dB/oct.): |
5kHz
|
| Music power: |
60WMAX
|
| Power rating (P): |
30WRMS
|
| SPL (1W/1m): |
101dB
|
| Radiation angle (vert./hor.): |
45°/45°
|
| Voice coil diameter: |
25.4mm
|
| Magnet diameter: |
70mm
|

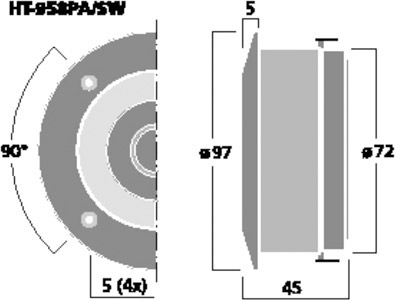

| Mounting cutout: |
Ø 72mm
|
| Mounting depth: |
45mm
|
| Dimensions: |
Ø 97mm
|
| Weight: |
0.55kg
|
