Product description:

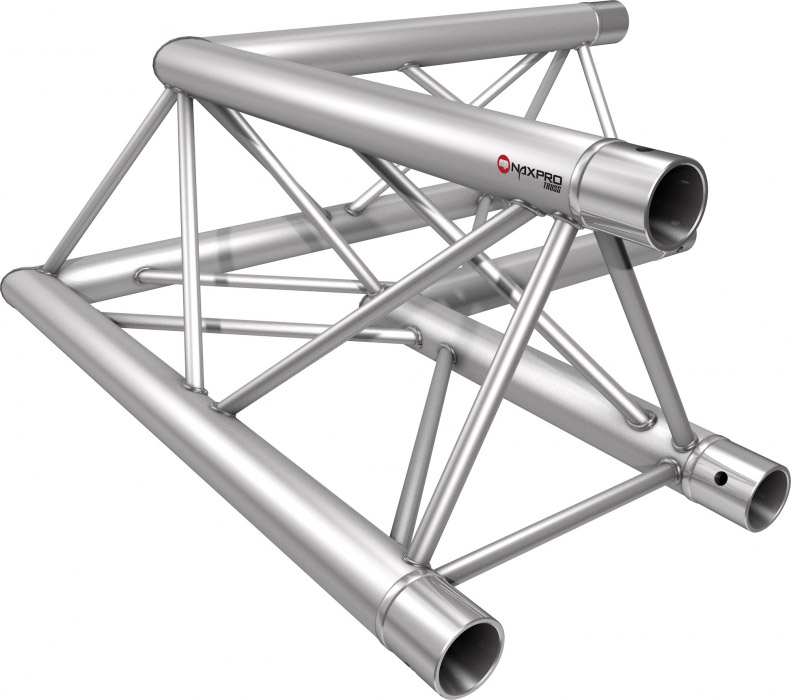

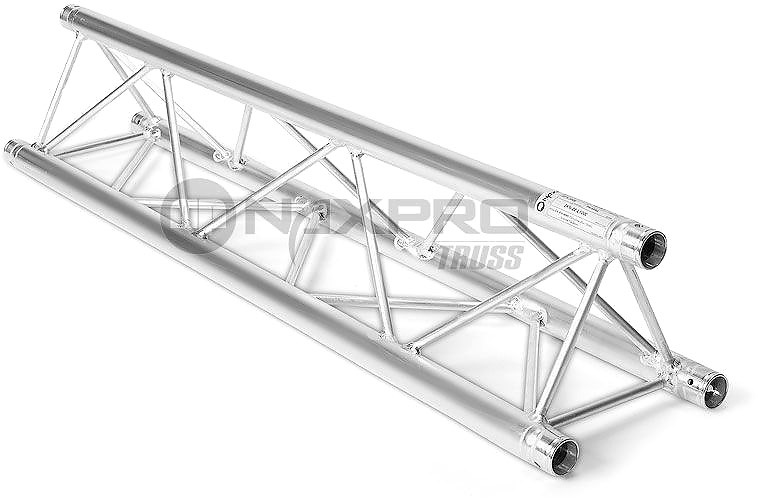

Naxpro FD 23 Truss System
Truss system in 3-point design, which finds in spite of his low tube-diameter of only 35 mm professional use in exhibition stand and store construction as well as event technology. Even though the dimensions are small there is enough space for lighting and sales promotion. Through the use of cone connectors, the system is connected actuated by adherence. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminium hammer. Special design constructions and powder-coating are feasible in little time.
Technical data:
- Overall width 220 mm
- Outer diameter tubing 35x2 mm
- Diagonal bracing 10x2 mm

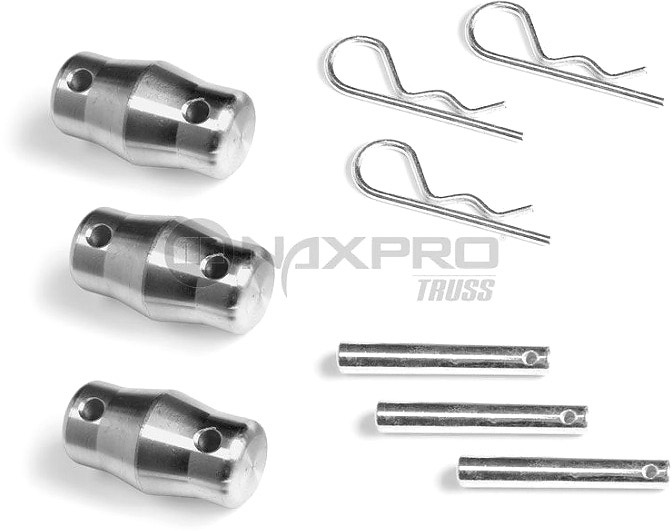

- Including cone connectors with pin and r-spring (3x cone connector, 6x bolt, 6x r-clip)
- Alloy EN AW 6060 T66
- Weight 2.8 kg
- Dimensions: 50 x 50 x 19.5 cm (LxWxH)
- Angle: 90°
Downloads:
Data sheet
