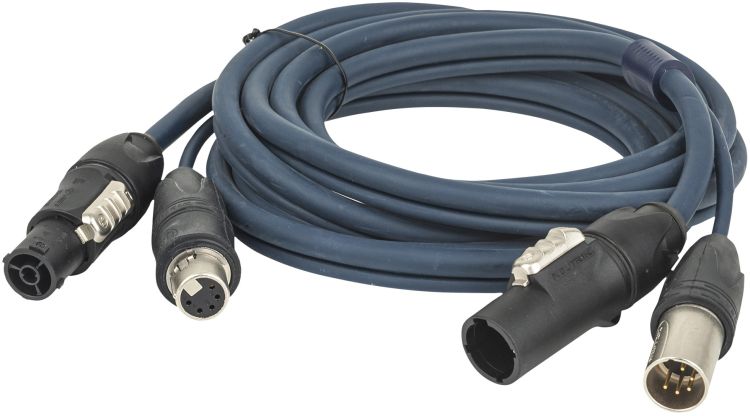

DAP-Audio FP-16 Hybrid Cable - powerCON TRUE1 & 5-pin XLR IP - DMX / Power 1.5 m

The DAP FP-16 is a two-in-one cable for attaching your lighting fixtures to both your DMX console and the main power supply. It has both a powerCON TRUE1 (male/female) and a 5-pin XLR cable connector (male/female). Equipped with an IP65 rating, this cable is suitable for outdoor venues.

The FP-16 is called a hybrid cable since it has a double connection. One for power and the other for DMX communication. The advantage of powerCON TRUE1 is that they can be connected and disconnected under load.

This hybrid powerCON TRUE1 cable is available in the sizes: 150 cm, 3 m, 6 m, 10 m and 15 m.Technical data:

Rated Current (A):	16 A
Flashover Voltage:	30 V
Impedance:	110 Ω
Connector 1:	powerCON TRUE1 TOP In (Female)
Connector 2:	powerCON TRUE1 TOP Out (Male)
DMX Connector In:	XLR 5P
DMX Connector Out:	XLR 5P
Brand Connector 1:	Neutrik
Cable Length:	1.5 m
Pins ( power ):	3
Pins ( data ):	5
Outer Cable Diameter:	11 mm
Outer Isolation Type:	PVC
Weight:	0.37 kg
IP Rating:	IP65
Material:	Copper
Colour:	Blue
Contact Type:	Brass
Filler Material:	Cotton / Paper
