Product description:
HiFi bass speakers and HiFi bass-midrange speakers of extra high quality, perfect manufacturing quality and elegant design, with aluminium basket, carbon fibre cone and especially long excursion, an impulsive and deep bass reproduction from a of partly surprisingly small size.

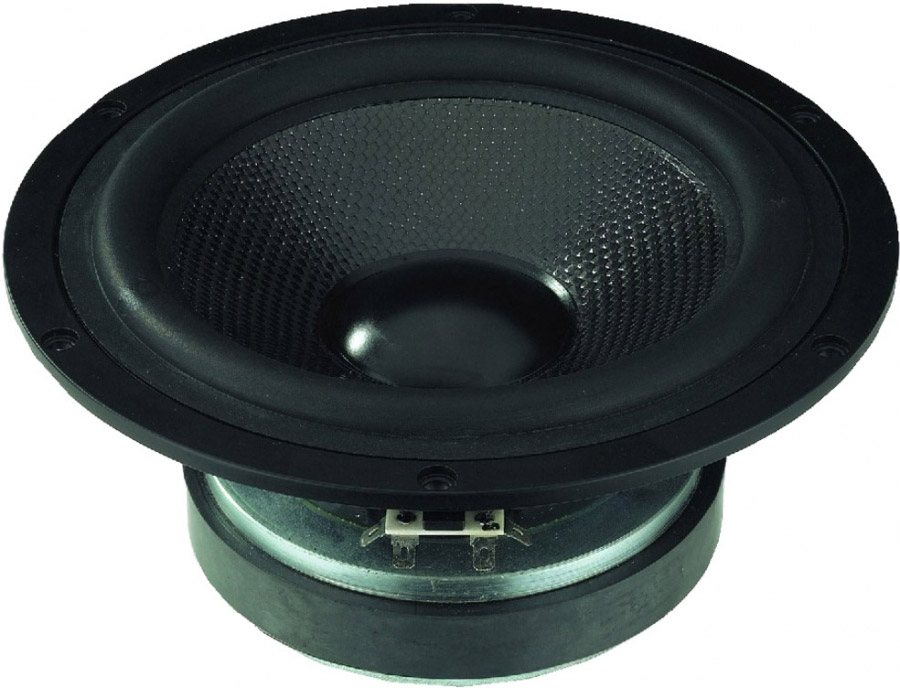

High-end bass speaker, 150WMAX, 8Ω,
with a high-rigidity cone and extra long excursion, remarkably small loss and excellently low distortion for an impressive fundamental bass in any high-quality HiFi combination and smaller subwoofers, also possible as a bass-midrange speaker in 2-way combinations, requiring extra small cabinets.
| Impedance (Z): |
8Ω
|
| Resonant frequency (fs): |
39Hz
|
| Max. frequency range: |
f3-3,000Hz
|
| Music power: |
150WMAX
|
| Power rating (P): |
100WRMS
|
| SPL (1W/1m): |
90dB
|
| Suspension compl. (Cms): |
0.43mm/N
|
| Moving mass (Mms): |
36.6g
|
| Mech. Q factor (Qms): |
4.94
|
| Electr. Q factor (Qes): |
0.31
|
| Total Q factor (Qts): |
0.30
|
| Equivalent volume (Vas): |
24 l
|
| DC resistance (Re): |
5.9Ω
|
| Force factor (BxL): |
13.17Tm
|
| Voice coil induct. (Le): |
0.8mH
|
| Voice coil diameter: |
50mm
|
| Voice coil former: |
Kapton
|
| Linear excursion (XMAX): |
±6mm
|
| Eff. cone area (Sd): |
201cm2
|
| Magnet weight: |
1.1kg
|
| Weight: |
3.5kg
|
