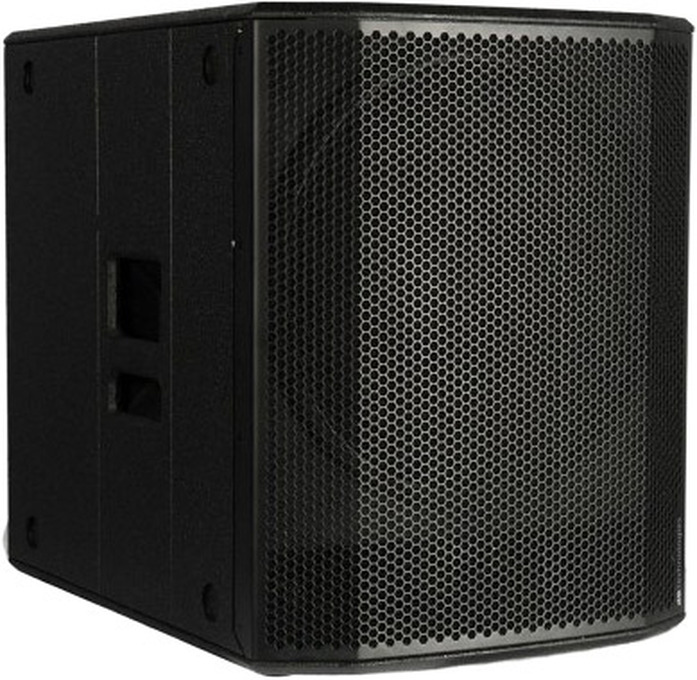

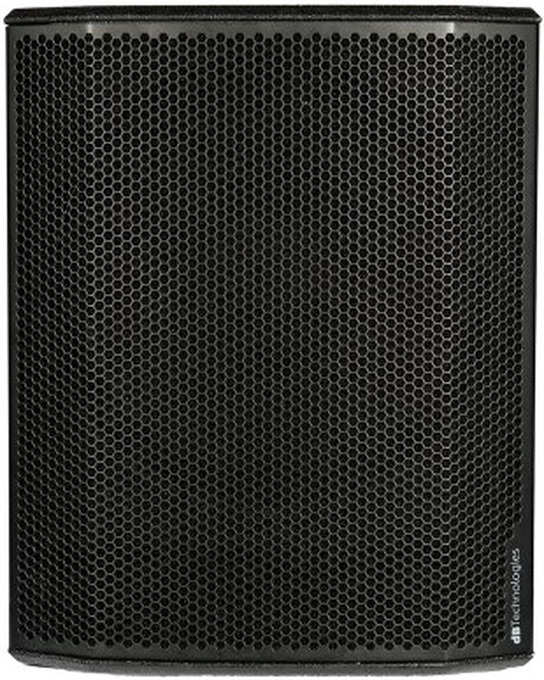

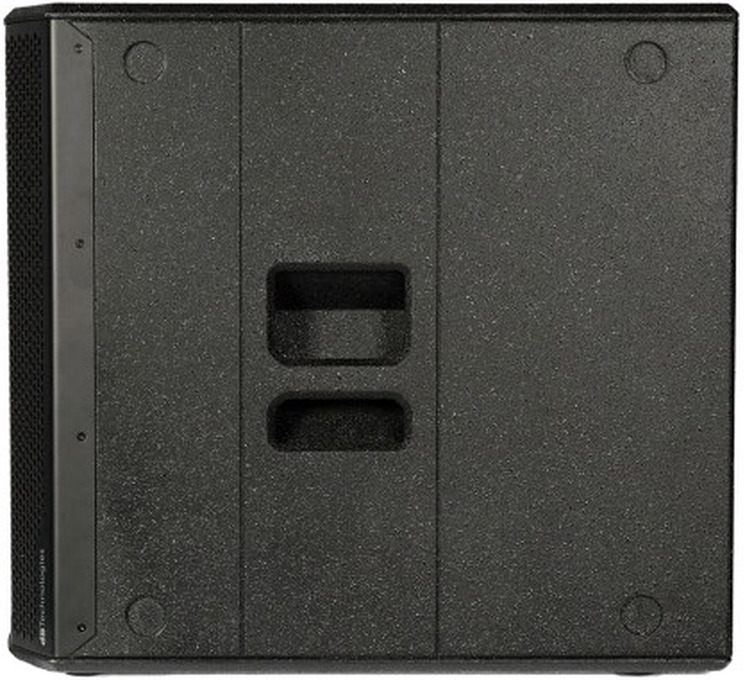

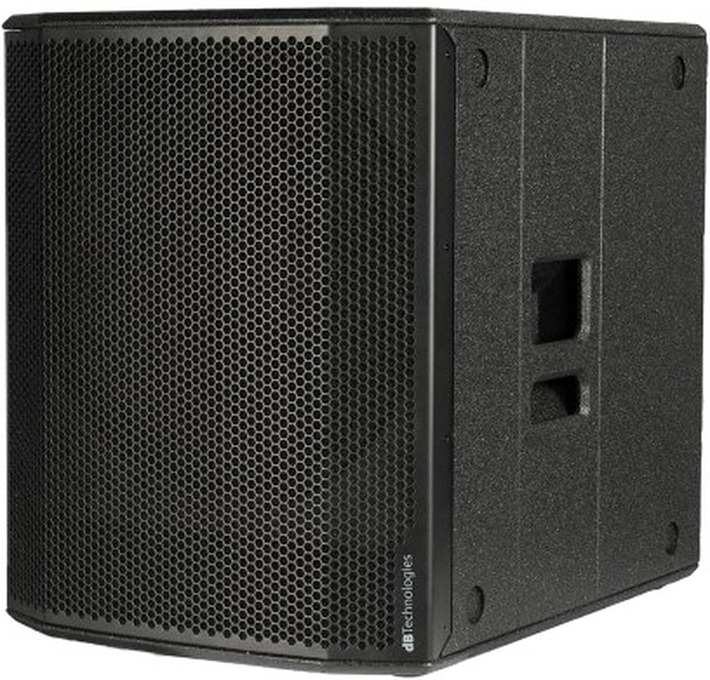

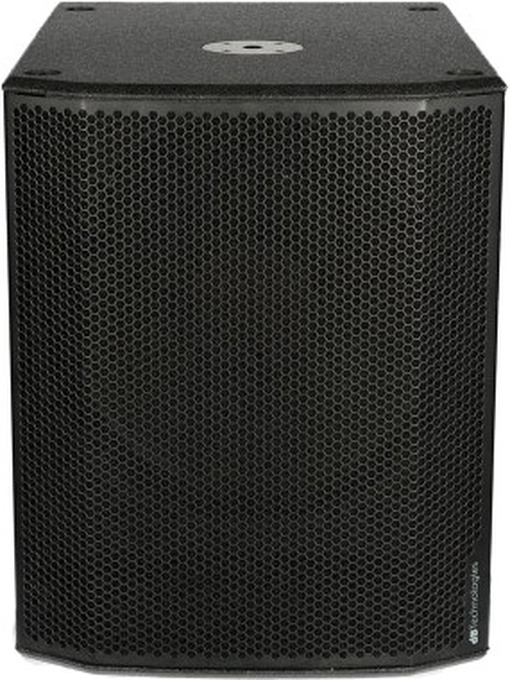

dB Technologies SUB 618, 18" Subwoofer

Technical Data

Usable Bandwidth [-10 dB]:

35 - 130 Hz

Max SPL (1 m):

133 dB

LF:

18"

LF Voice Coil:

2.5"

Amp Technology:

SMPS digital amplifier

Amp Class:

Class-D - Passive cooling (convection)

RMS Power:

600 W

Peak Power:

1200 W

Operating voltage (factory set):

220-240V~ (50-60Hz) or 110-120V~ (50-60 Hz)

Controller:

28/56 bit DSP

Limiter:

Peak, Thermal, RMS

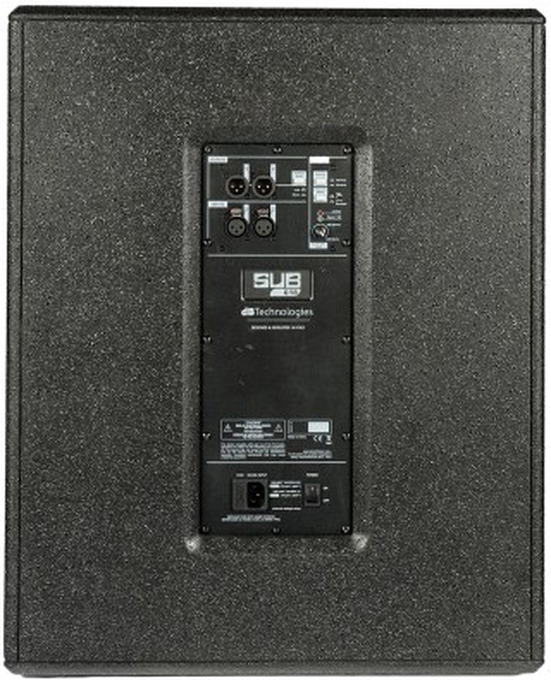

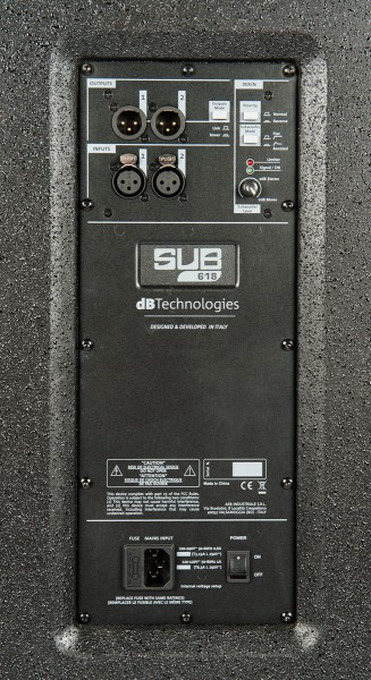

Controls:

Subwoofer level, Outputs mode, Polarity,

Signal Input:

2 x XLR (balanced)

Signal Out:

2 x XLR (balanced)

Mains connections:

VDE

Housing:

Plywood

Grille:

Full metal grille

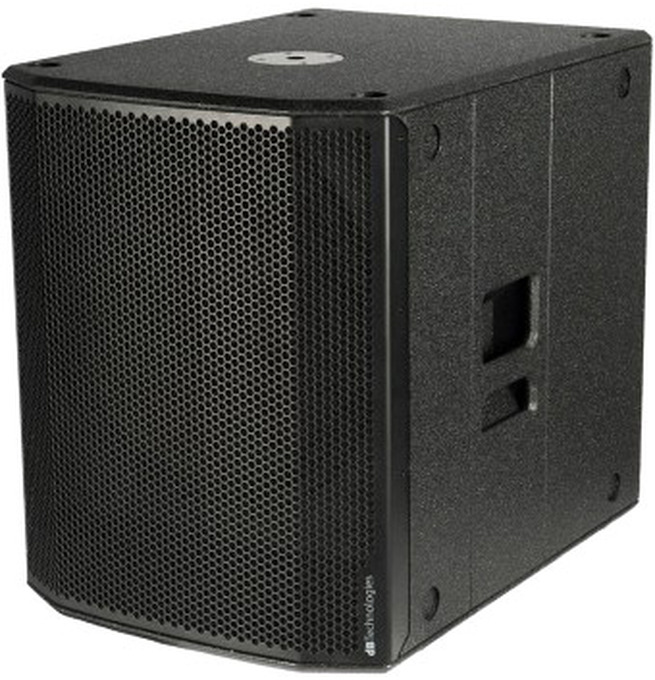

Pole Mount:

Yes, M20

Width:

500 mm

Height:

625 mm

Depth:

690 mm

Weight:

31.1 kg
