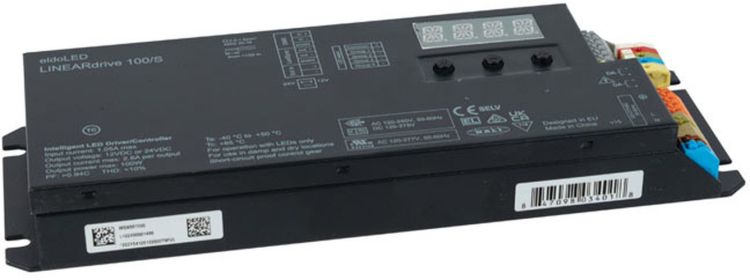

ELDOLED LINEARdrive AC 100 W Constant Voltage DMX/Dali

The LINEARdrive AC - 100 W delivers 8 A and is DALI and DMX compatible. It has four separately controllable LED outputs, which can be used for wide range of full-colour (RGBW), dynamic LED lighting applications.

You can configure the driver over its intuitive, 3-button user interface with display: it lets you configure the number of channels, DMX or DALI settings for networked mode and show, colour and dim values for standalone operation.Technical data:

Control Mode:	DALI / DMX
DMX Channels:	4
DALI Ballast:	4 control channel
Protocols:	DALI / DMX
Dimmable:	Yes
Power Supply:	120-250 V AC 50/60 Hz
Power Consumption:	100 W
Output Current per Channel 12 V DC:	2.08 A
Output Current per Channel 24 V DC:	1 A
Power Connector In:	Open End
Power Connector Out:	Open End
DMX Connector In:	Open end
DMX Connector Out:	Open end
Data Connector In:	Open End
Data Connector Out:	Open End
Length (mm):	230 mm
Height (mm):	30 mm
Width (mm):	80 mm
Weight:	0.88 kg
IP Rating:	IP20 (indoor use only)
Material:	Metal
Housing:	Metal
Colour:	Black
Maximum Ambient Temperature:	50 °C
Minimum Ambient Temperature:	-40 °C
Included Accessories:	None
