EUROLITE Set 4x AKKU TL-3 TCL QuickDMX + Case with charging function
€849.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 120029880
4x Spot for lighting within trussing, 3 x 3 W 3in1 LED including PRO Flightcase charging... more
All information about the product:
"EUROLITE Set 4x AKKU TL-3 TCL QuickDMX + Case with charging function"
4x Spot for lighting within trussing, 3 x 3 W 3in1 LED including PRO Flightcase charging function

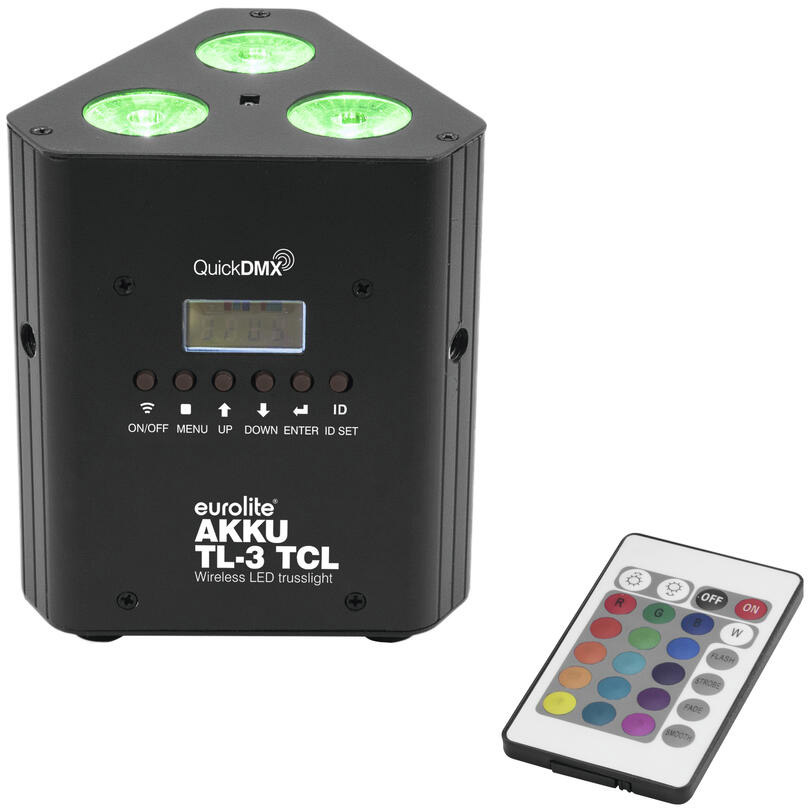

EUROLITE AKKU TL-3 TCL Trusslight QuickDMX
Spot for lighting within trussing, 3 x 3 W 3in1 LED, QuickDMX transceiver
- Compact and bright
- Ideal for ALUTRUSS DECOLOCK DQ3 3-point system
- Integrated QuickDMX transceiver for wireless DMX control
- Threaded inserts for suspended installation
- Battery operation up to 16h depending on program used
- 3 powerful LEDs 3 W high-power 3in1 TCL RGB (homogenous color mix)
- Dimmer electronic; color blend stepless; color change adjustable; Dimmer speed (step response) adjustable
- Strobe effect
- The device is cooled by passive convection cooling
- Control via DMX; stand-alone; QuickDMX; IR remote control; Sound to light via Microphone
- Flicker-free
- With a beam angle of 11°
- LCD display
- For application areas such as: Wedding/gala/events; Small lender; Trade fair and shop fitting; Stage
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
- Mains input and output for power linking up to 8 units
- Silent operation
- Cordless, flexible and versatile
- 3 rubber feet
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 1 x declaration of conformity

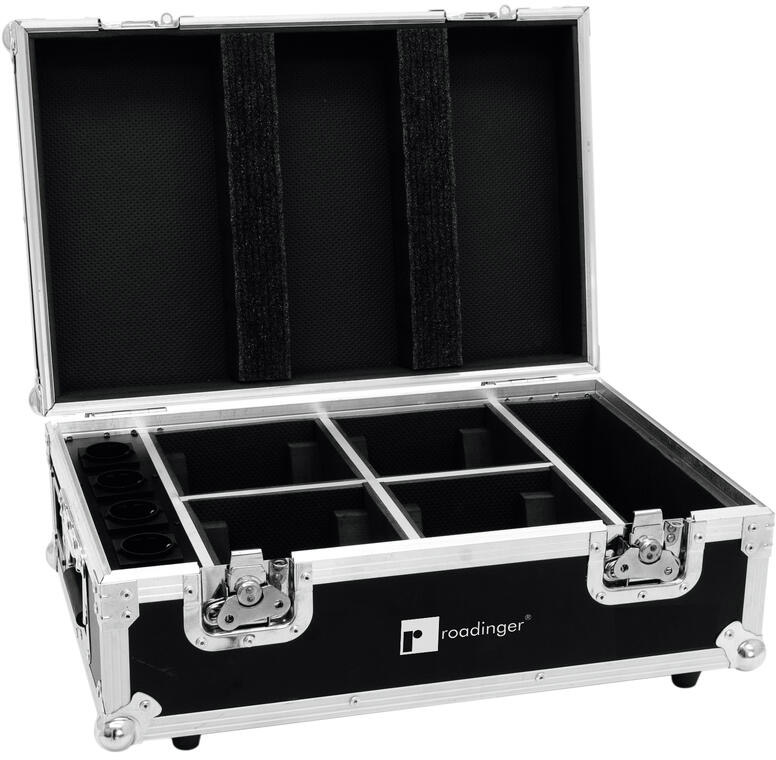

ROADINGER Flightcase 4x AKKU TL-3 Trusslight QuickDMX with charging function
PRO flightcase for 4 x AKKU TL-3, with charging function
- With 4 Device compartments
- With accessory compartment
- High-quality workmanship with plywood multi-layer glued 9 mm, black, laminated
- Interior with foam padding
cover with foam padding - Aluminum profile frames 30mm with rounded edges
- 2 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks with shut-off function
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
- 1 x device, 1 x power cord, 1 x user manual
| Weight: | 13,58 kg |
| EUROLITE AKKU TL-3 TCL Trusslight QuickDMX | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 25 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Battery/battery pack Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Cable length: | Approx. 1,2 m |
| Power output: | 1 x IEC connector (F) mounting version |
| Fuse: | 5 x 20 mm, F 5 A |
| Battery pack type: | 1 x lithium ion 11,1 V, 4400 mAh, 48,84 Wh |
| Battery pack: | Battery operation up to 16h depending on program used Recharging time 3h |
| Lamp type: | LED lamp |
| LED: | 3 x 3 W high-power 3in1 TCL RGB (homogenous color mix) |
| Flash rate: | 0 - 23 Hz |
| DMX channels: | 3; 5; 8 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; stand-alone; QuickDMX; IR remote control; Sound to light via Microphone |
| Preprogrammed in: | Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Beam angle: | 11° |
| Beam angle (1/2 peak): | 11° |
| Beam angle (1/10 peak): | 24° |
| Housing color: | Black |
| Attachment system: | M10 thread |
| Display type: | LCD display |
| Carrier frequency: | 2,4 GHz |
| Transport aid: | 3 x rubber feet |
| Dimensions: | Width: 12,1 cm Depth: 10,8 cm Height: 14,5 cm |
| Weight: | 1,27 kg |
| Noise classification: | Class 0 (no noise at all) |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2032 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase 4x AKKU TL-3 Trusslight QuickDMX with charging function | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | Max. 1150 W |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Device fuse: | 5 x 20 mm, T 5 A Fuse replaceable |
| Aluminum profile frames: | 30 mm |
| Case handles: | 2 pc/pcs |
| Stop hinge: | 2 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs with shut-off function |
| Material: | Plywood multi-layer glued, 9 mm |
| Color: | Black, laminated |
| Compartment dimensions: | 15,5 cm x 15,5 cm x 11,5 cm |
| Accessory compartment: | 9 cm x 34 cm x 11,5 cm |
| Dimensions: | Width: 57 cm Depth: 37 cm Height: 24,5 cm |
| Weight: | 8,50 kg |
