EUROLITE Set 4x LED TMH-S90 + Case

€2,249.00 *

incl. tax, plus forwarding agency costs

Bulky goods

Availability:

Delivery time: 3-5 days

Delivery time: 3-5 days

Bulky goods

Item number: 120033055

EAN: 4026397681796

MPN: 20000742

4x Led moving head spot including flightcase with wheels Positioning within TILT EUROLITE... more

Back to the overview

All information about the product:

"EUROLITE Set 4x LED TMH-S90 + Case"

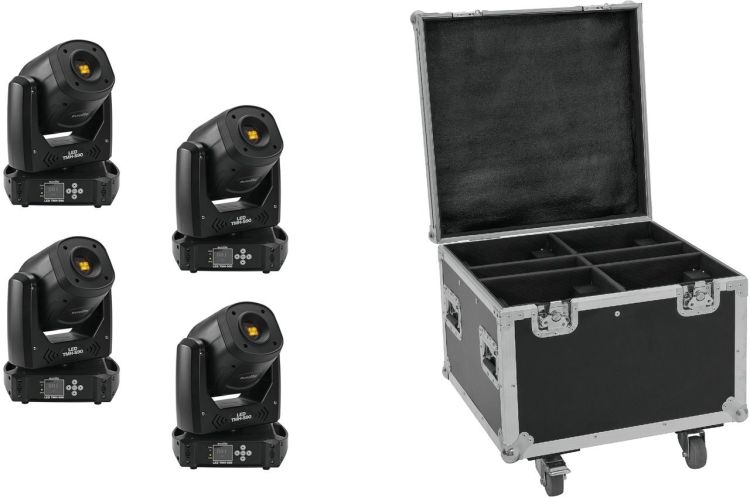

Set consisting of:

4 x EUROLITE LED TMH-S90 Moving-Head Spot

1 x ROADINGER Flightcase 4x TMH-S90

4x Led moving head spot including flightcase with wheels

Positioning within TILT

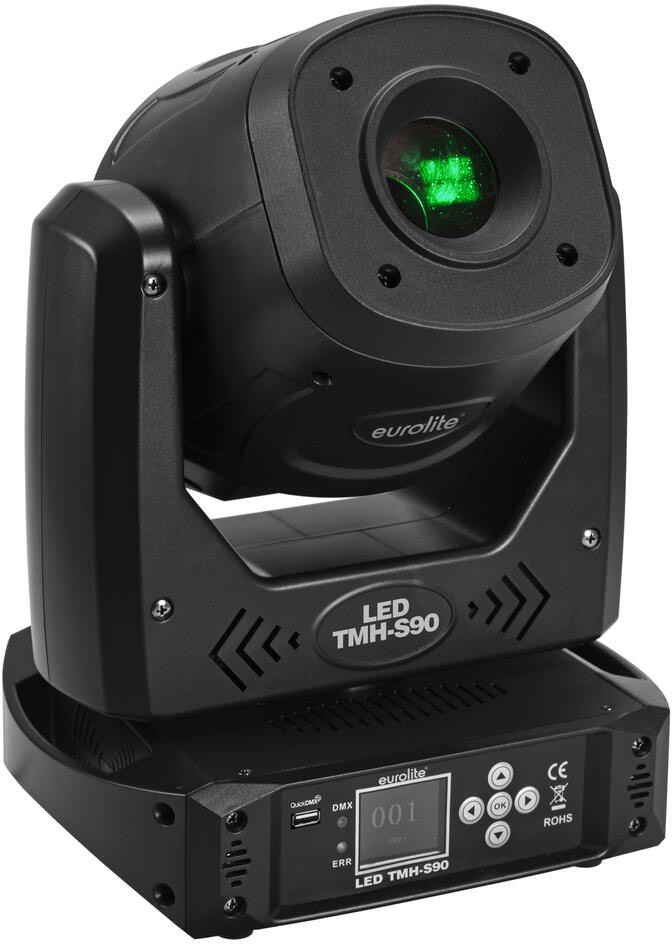

EUROLITE LED TMH-S90 Moving Head Spot

LED moving head spot with color wheel, static and rotating gobo wheel, prism and focus

Rotating 3-facet prism with variable speed
1 powerful LED 90 W COB (chip-on-board) cold white (CW)
Positioning within 540° PAN, 200° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Prism 3-fold; gobo wheel with rotating gobos; gobo wheel with static gobos; focus motor-driven; color wheel
Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 7 gobos and open
shake effect
Gobo wheel with rotating gobos, 5 gobos,1 multi color gobo and open
shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
Integrated show programs
The device is cooled by cooling fan
Control via DMX; sound to light via microphone; stand-alone; master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
Flicker-free
With a beam angle of 12°
Dimmer electronic
Preprogrammed in EASY SHOW 1; Light Captain; EASY SHOW 3
For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer
Application possibility: Standing; suspended

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet

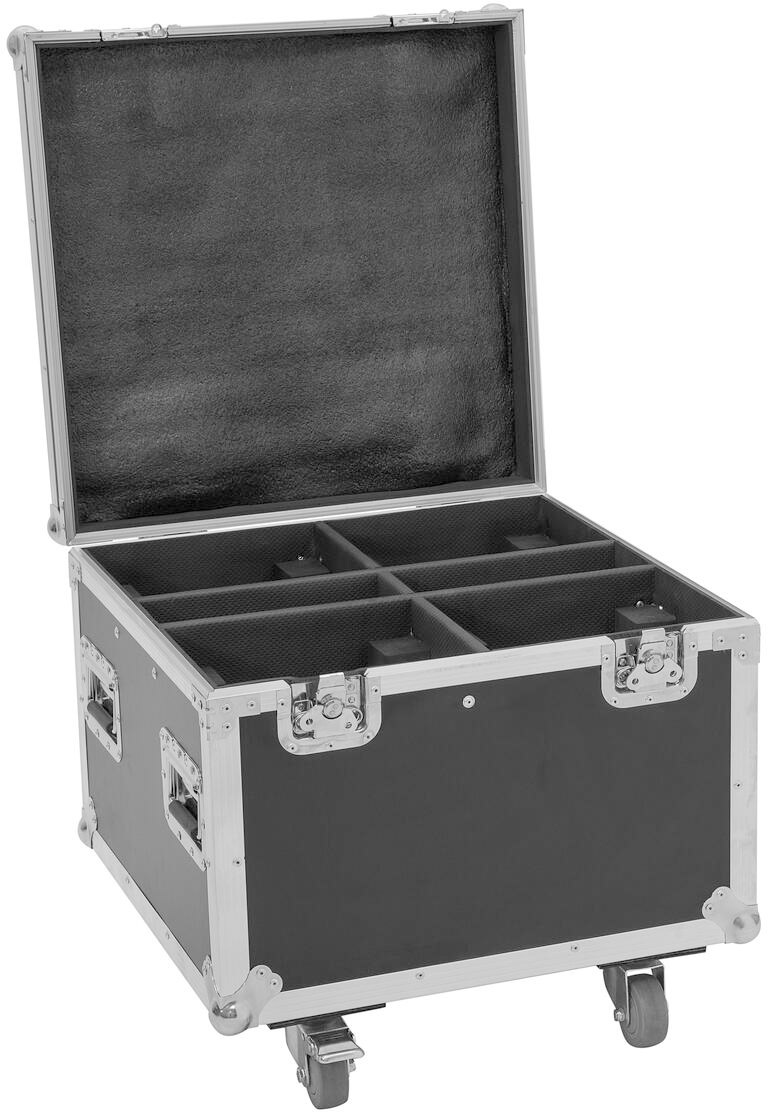

ROADINGER Flightcase 4x TMH-S90/H90/B90

Trunk case with castors

For optimal security
With 4 device compartments
High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
Interior with foam padding
cover with foam padding
Interior with foam padding
cover with foam padding
Aluminum profile frames 30mm with rounded edges
4 hinged, chromium plated case handles
2 chrome tip-over locks
2 high-quality butterfly locks
Castors

Weight:	43,80 kg
EUROLITE LED TMH-S90 Moving Head Spot
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	140 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 2 A
Lamp type:	LED lamp
LED type:	1 x 90 W COB (chip-on-board) cold white (CW)
Max. TILT movement:	200° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	540° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:	1,5 - 15 Hz
Equipment:	Prism 3-fold; gobo wheel with rotating gobos; gobo wheel with static gobos; focus motor-driven; color wheel
Color generation:	Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:	Gobo wheel with static gobos, 7 gobos and open Shake effect Gobo wheel with rotating gobos, 5 gobos,1 multi color gobo and open Outside diameter 21,8mm Image diameter 16mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement
DMX channels:	15
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	DMX; sound to light via microphone; stand-alone; master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
Preprogrammed in:	EASY SHOW 1; Light Captain; EASY SHOW 3
Projection:	Flicker-free
PWM frequency:	15600 Hz
Beam angle:	12°
Beam angle (1/2 peak):	12°
Illuminance in Lux (lx):	Cold white (CW) 1m: 52772 lx, 3m: 6198 lx, 6m: 1543 lx
Housing color:	Black
Dimensions:	Width: 25,0 cm Depth: 20,5 cm Height: 35,0 cm
Weight:	6,20 kg
Noise classification:	Class 3 (clearly perceptible sounds)
Photobiological safety:	Risk Group 0
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 4x TMH-S90/H90/B90
Maximum load:	100 kg
Aluminum profile frames:	30 mm
Case handle:	4 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Transport aid:	Castors
Material:	Plywood multi-layer glued, 7 mm
Color:	Black, laminated
Device compartment:	26 cm x 20 cm x 37 cm
Accessory compartment:	26 cm x 9 cm x 37 cm
Dimensions:	Width: 58 cm Depth: 57 cm Height: 54 cm
Weight:	19,00 kg
