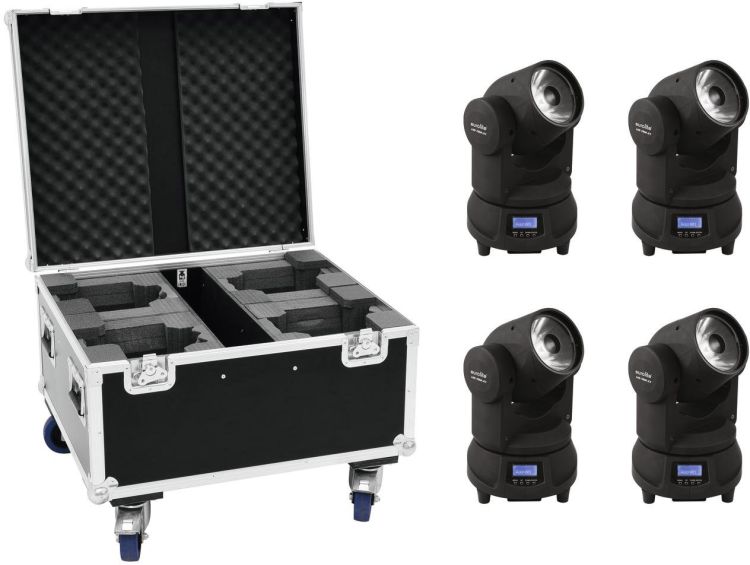

EUROLITE Set 4x LED TMH-X1 Moving-Head Beam + Case

EUROLITE Set 4x LED TMH-X1 Moving-Head Beam + Case
€1,899.00 *
incl. tax, plus forwarding agency costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days

Bulky goods

Item number: 120028195
4x 60 W beam, compact, narrow angle, beautiful RGBW colors including PRO flightcase... more
All information about the product:
"EUROLITE Set 4x LED TMH-X1 Moving-Head Beam + Case"

4x 60 W beam, compact, narrow angle, beautiful RGBW colors including PRO flightcase

  • Positioning within PAN and TILT

EUROLITE LED TMH-X1 Moving Head Beam

60 W beam, compact, narrow angle, beautiful RGBW colors

  • Compact lightweight
  • 1 powerful LED 60 W COB (chip-on-board) 4in1 QCL RGBW
  • Positioning within 540° PAN and 220° TILT
  • Auto position correction (feedback)
  • Exact positioning (16 bit resolution)
  • Color selection; color blend stepless; Dimmer electronic
  • Beam effect; Strobe effect
  • Integrated show programs
  • The device is cooled by cooling fan
  • Control via DMX; stand-alone; Sound to light via Microphone
  • Flicker-free
  • With a beam angle of 3°
  • OSRAM bulb included
  • Preprogrammed in Light´J; LED PC-Control 512; Light Captain
  • Mains input and output for power linking up to 8 units

Package contents

  • 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x xLR cable

ROADINGER Flightcase 4x LED TMH-X1 Moving-Head Beam with wheels

PRO flightcase for 4 x TMH-X1

  • With accessory compartment
  • With 4 Device compartments
  • High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
  • Interior with foam padding
  • Aluminum profile frames 25mm with rounded edges
  • 4 hinged, chromium plated case handles
  • 1 chrome tip-over lock
  • 2 high-quality butterfly locks
  • 4 castors with 2 locking brakes
  • 4 built-in stacking trays in the cover
  • Branded hardware
  • Made in Europe
  • For further information about this product, please refer to the Data Sheet under "Downloads"
Weight:39,78 kg
EUROLITE LED TMH-X1 Moving Head Beam
Power supply:100-240 V AC, 50/60 Hz
Power consumption:90 W
IP classification:IP20
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:P-Con (gray), mounting version
Lamp type:LED lamp
LED:1 x 60 W COB (chip-on-board) 4in1 QCL RGBW
Max. TILT movement:220° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement:540° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate:0 - 10 Hz
DMX channels:14
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:DMX; stand-alone; Sound to light via Microphone
Preprogrammed in:Light´J; LED PC-Control 512; Light Captain
Beam angle:
Beam angle (1/2 peak):
Beam angle (1/10 peak):
Illuminance in Lux (lx):Red (R) 3m: 3251 lx, 6m: 712 lx
Green (G) 3m: 4684 lx, 6m: 1125 lx
Blue (B) 3m: 819 lx, 6m: 220 lx
Cold white (CW) 3m: 7909 lx, 6m: 1899 lx
All 3m: 15489 lx, 6m: 3655 lx
Housing color:Black
Use of brands:OSRAM bulb included
Dimensions:Width: 20,7 cm
Depth: 19,6 cm
Height: 31,3 cm
Weight:4,29 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
ROADINGER Flightcase 4x LED TMH-X1 Moving-Head Beam with wheels
Maximum load:100 kg
Aluminum profile frames:25 mm
Case handles:4 pc/pcs
Stop hinge:1 pc/pcs
Lock:Butterfly lock: 2 pc/pcs
Transport aid:4 x castors with 2 locking brakes
4 x built-in stacking trays in the cover
Use of brands:Branded hardware
Material:Birch multiplex, 7 mm
Color:Dark brown, laminated
Accessory compartment:10,5 cm x 60 cm x 27 cm
Compartment dimensions:27 cm x 14 cm x 27 cm
Inside dimensions:64,5 cm x 26 cm
Dimensions:Width: 71 cm
Depth: 61 cm
Height: 53 cm
Weight:21,90 kg
