Neutrik NAC3FPX-TOP - PowerCON TRUE1 Panel Mount Socket, Power-Out
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 220003155
EAN: 4049521403330
MPN: NAC3FPX-TOP
PowerCON TRUE1 Panel Mount Socket, Power-Out Heavy duty sealed power connector for harsh and... more
All information about the product:
"Neutrik NAC3FPX-TOP - PowerCON TRUE1 Panel Mount Socket, Power-Out"
PowerCON TRUE1 Panel Mount Socket, Power-Out
- Heavy duty sealed power connector for harsh and demanding environment
- Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-FPX)
- Uses high impact UV-resistant materials
- True mains connector with breaking capacity (CBC)
- Lockable 16 A single phase connector (USA: 20 A)
- Easy and reliable twist lock system
- Extremely robust and reliable Unique Neutrik cable retention
- ENEC certified according to IEC 60320
- UL498 certified

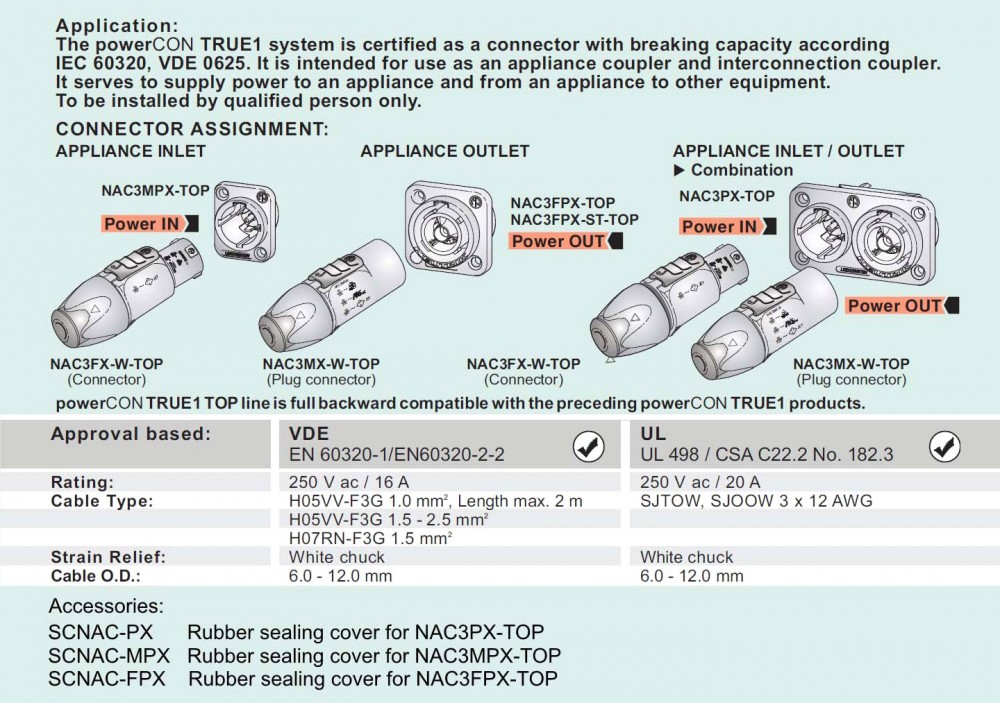

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Technical data:| Product type: | Plugs and Connectors |
| Type: | Powercon |
| Gender: | female |
| Color: | Black |
| Contacts: | Copper, alloyed |
| Resistance: | 3 m Ohm(s) |
| insulating resistance: | > 0.1 G |
| Rated Voltage: | 250 V |
| Rated current per contact: | 16 A |
| Number of electronical contacts: | 2 + PE |
| Housing: | polyamide |
| Wiresize: | 2.5 mm² |
| Wiresize (AWG): | 12 AWG |
| Width: | 35.4 mm |
| Height: | 35.4 mm |
| Depth: | 32.8 mm |
| Fire protection class: | UL94 V-0 |
| Protection class IP: | IP65 |
| Temperature range: | - 30 °C / + 80 °C °C |
| Weight: | 0,019 kg |
