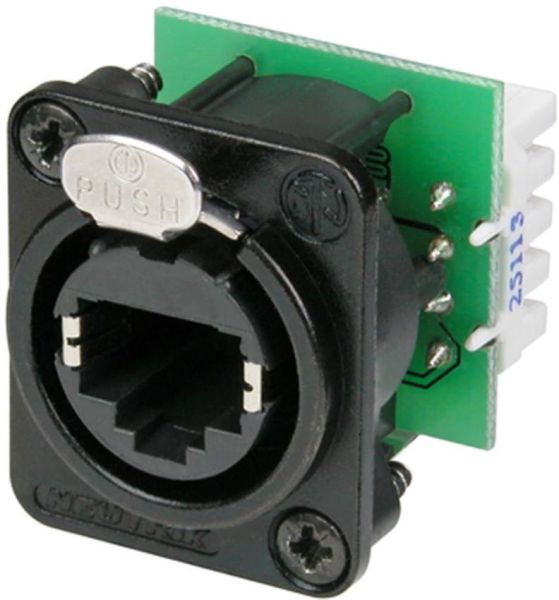

Neutrik RJ45 chassis socket in black
Express delivery possible
Neutrik NE8FDV-Y110-B RJ45 chassis socket – Robust and reliable
The Neutrik NE8FDV-Y110-B is a high-quality RJ45 chassis socket in a robust, black chrome-plated D-sub housing. It has been specially designed for demanding network applications in pro audio, video, and lighting applications and offers a reliable, lockable connection that meets the requirements of the entertainment industry.
This chassis socket uses the proven cut-and-clamp technology (type 110), which allows for quick and easy installation. It is designed for front panel thicknesses of up to 4 mm, and mounting screws are included in the delivery. The NE8FDV-Y110-B is suitable for Neutrik NE8MC* cable connectors and all standard RJ45 connectors and offers a proven push-lock system for secure retention.
The socket supports CAT5e performance in accordance with ISO/IEC 11801 and TIA/EIA 568A/B and is also PoE Type 3 Class 6 (60W) capable in accordance with IEEE 802.3bt, making it ideal for Power over Ethernet applications. It can be mounted from the front or rear and offers selectable grounding options.
Key features:
- Suitable for Neutrik NE8MC* and all standard RJ45 plugs.
- Proven push-lock system for secure connections.
- Can be mounted from the front or rear.
- CAT5e performance in accordance with ISO/IEC 11801 and TIA/EIA 568A/B.
- Selectable grounding options.
- Quick and easy installation thanks to 110 type cut-off clamp contact.
- Supports PoE Type 3 Class 6 (60W) in accordance with IEEE 802.3bt.
Technical data:
| product information | |
|---|---|
| Product Title | NE8FDV-Y110-B |
| Gender | Female |
| Electrical data | |
| transition resistance | < 50 mO |
| breakthrough resistance | 1 kVdc |
| frequency range | 1 - 100 MHz |
| insulation resistance | > 0.5 GO |
| Rated current per contact | 1.5 A |
| rated voltage | = 57 V |
| transmission capacity | CAT 5e (according to TIA/EIA 568A/B and ISO/IEC 11801) |
| Power over Ethernet | PoE Type 3 Class 6 (60W) according to IEEE 802.3bt |
| Mechanical data | |
| insertion force | = 20 N |
| stakeout force | = 20 N |
| service life | > 1000 insertion cycles |
| front panel thickness | max. 4 mm (0.16') |
| conductor cross-section | 0.14 - 0.5 mm² (26 - 20 AWG) |
| connection type | IDC 110 punch down terminals |
| locking device | Latch lock |
| housing shape | D |
| Material | |
| contact coating | 0.2 µm Au over Ni plating |
| Contacts | Bronze (CuSn8) |
| use | PBTP 15% GR |
| housing | Zinc die casting (ZnAl4Cu1) |
| housing coating | Black KTL |
| strain relief | CuZn35Pb2, tin-plated |
| Locking element Coating | nickel |
| Environment | |
| flammability | UL 94 V-0 |
| temperature range | -30 °C to +80 °C |
| standard compliance | ISO/IEC 11801-1 Ed. 1.0 (2017-11), IEC 60603-7-3 Ed.2.0 (2010-04), IEC 60512-99-002 Ed.2.0 (2022-01), IEC 60512-9-3 (2011-06) |
