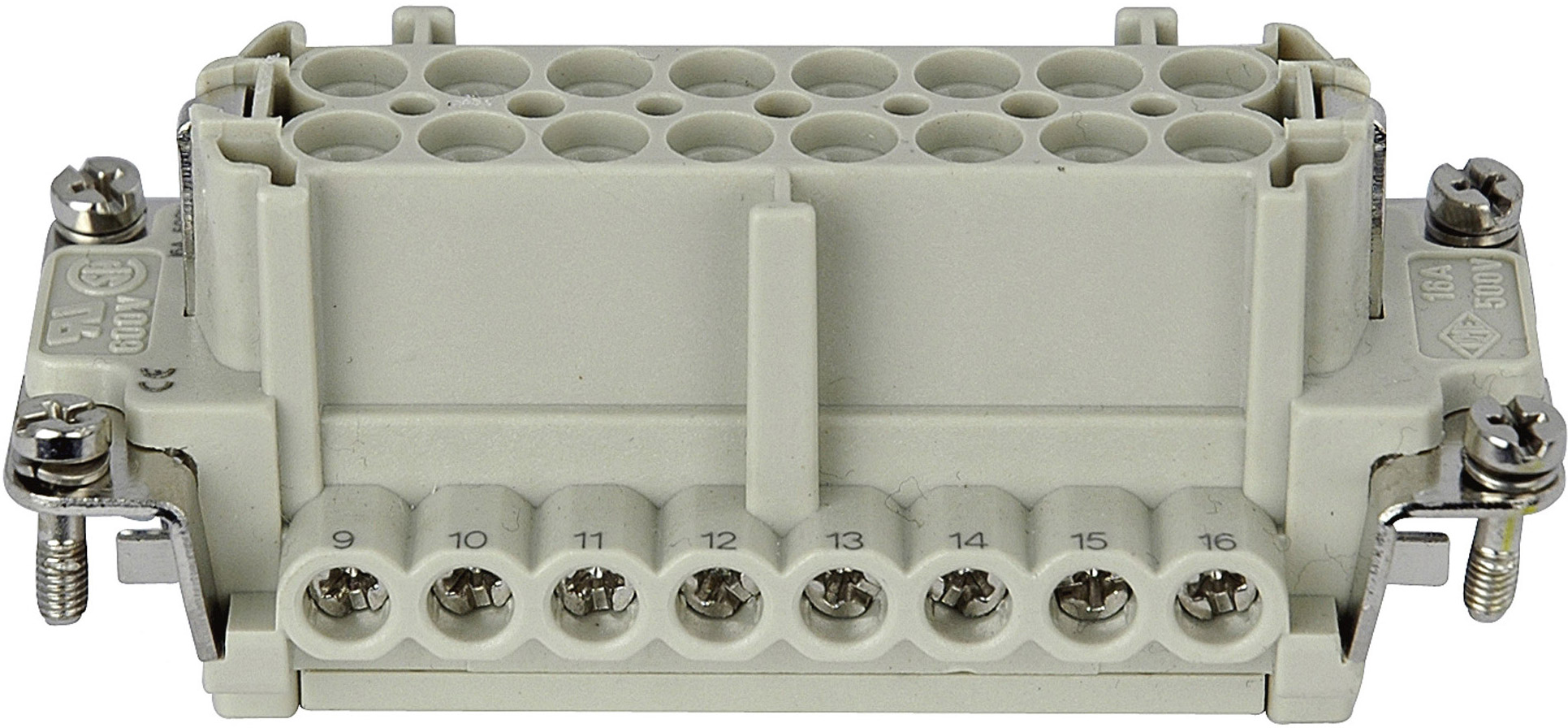

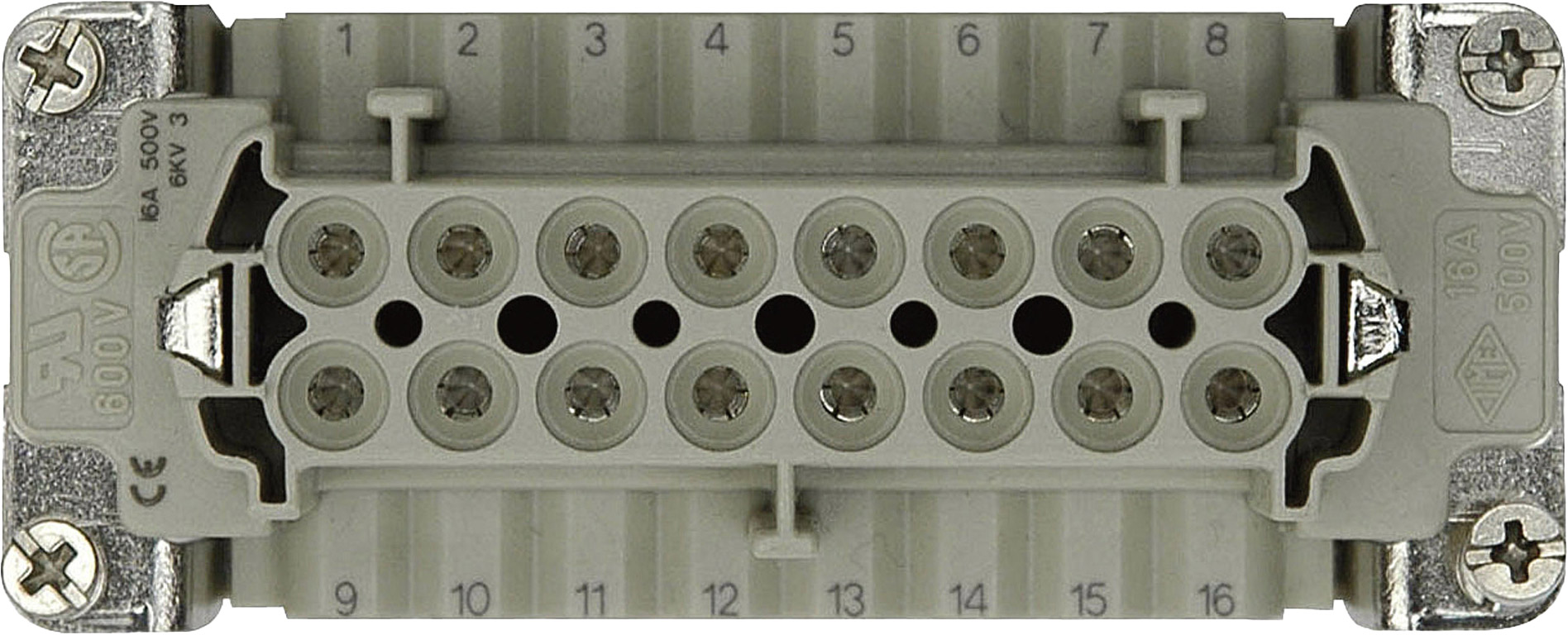

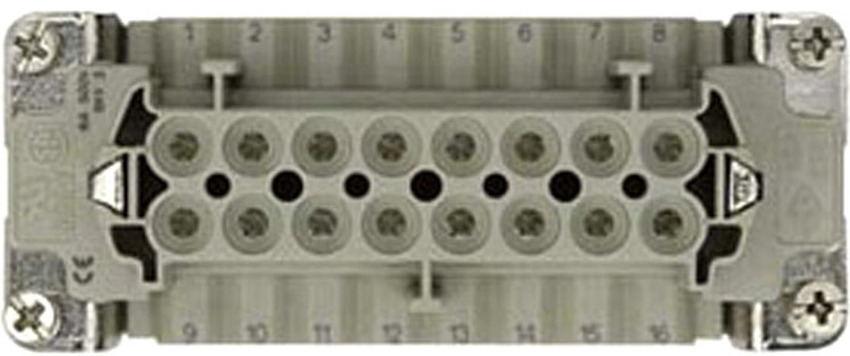

ILME 16P Insert female

Ilme
Preview: 16 Pole Insert Female Preview: 16 Pole Insert Female Preview: 16 Pole Insert Female
16 Pole Insert Female
16 Pole Insert Female
16 Pole Insert Female

€12.90 *
incl. tax, plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Please choose a variant.
Item number: 120616920
EAN: 8717748029713
MPN: 90716
Description Videos 0 Downloads 0
Description
Technical data: Rated Current (A): 16 A Pins: 16 Wire Cross-Section: 4 Minimum... more
Back to the overview
All information about the product:
"ILME 16P Insert female"
Technical data:
Rated Current (A):16 A
Pins:16
Wire Cross-Section:4
Minimum Wire Size:0.5 mm²
Maximum Wire Size:4 mm²
Minimum Wire Size AWG:20 AWG
Maximum Wire Size AWG:12 AWG
Length (mm):83.6 mm
Height (mm):35 mm
Width (mm):34 mm
Weight:0.102 kg
IP Rating:IP20 (indoor use only)
Colour:Gray
PE Terminal Stripping Length:7 mm
PE Wire Cross Section:4 mm²
Tightening Torque for PE Connection:1.2 nm
Characteristics According to EN 61984:690 V 6 kV 2
Insulation Resistance:10 GΩ
Rated Voltage According to UL/CSA:600 V
UL 94 Flammability Rating:V-0
Conductor Stripping Length:7 mm
Torque for Main Contact:0.5 nm
Tightening Torque for Fixing Screws:0.5 nm
Pin Connection:Screw Terminal
Supplier Type Number:JNEF16
Locking Device:Screw
Contact Type:Tin
Minimum Operating Temperature:-40 °C
Maximum Operating Temperature:125 °C
