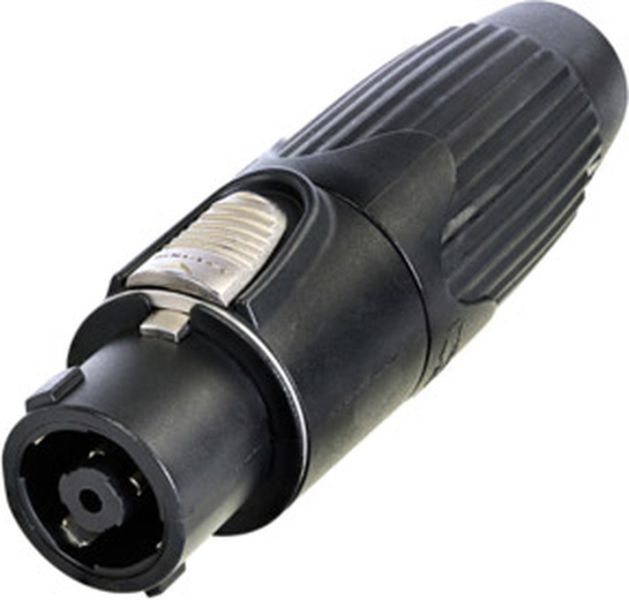

Neutrik NLT8FXX-BAG - SpeakON plug 8-pin female black

Neutrik NLT8FXX-BAG - SpeakON Stecker 8-Pol female schwarz

€30.73 *

incl. tax, plus shipping costs

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 220003595

SpeakON plug 8-pin female black IEC 61984 certified, thus suitable as a component for devices... more

Back to the overview

All information about the product:

"Neutrik NLT8FXX-BAG - SpeakON plug 8-pin female black"

SpeakON plug 8-pin female black

IEC 61984 certified, thus suitable as a component for devices certified according to IEC 62368-1
Extremely robust metal housing and insert made of glass-fibre reinforced V-0 material for demanding applications, especially in the touring sector
Compatible with the complete speakON 8-pole product series
Rated current 30 A rms
Highly precise "Quick Lock" locking system

8-pole female cable connector, metal housing, chuck type strain relief, solder contacts.

Due to the component certification according to IEC 61984, this connector is suitable for use in devices which have to comply with the device standard IEC 62368-1.

The speakON STXX loudspeaker connectors were developed for the most demanding applications, especially in the touring sector. The sturdy die-cast metal housing makes the connectors extremely robust.

Technical data:

Product type:	Plugs and Connectors
Type:	Speakon
Poles:	8
Gender:	female
Cable diameter:	1.5 - 6 mm
Contacts:	silver plated
Connection type:	solder contact
Housing:	Metal
Width:	35 mm
Height:	35 mm
Depth:	121 mm
Weight:	0,146 kg
