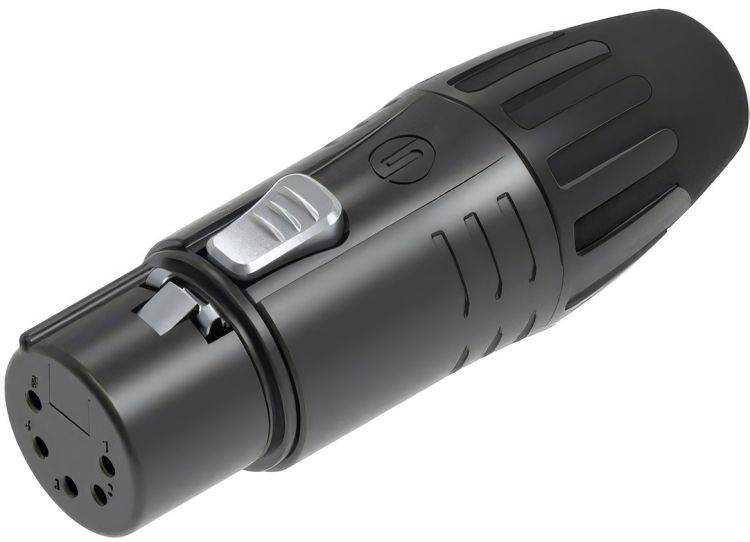

Seetronic SCMF5-B-BK 5-pin XLR female connector

American DJ
NEW
Seetronic-SCMF5-B-BK 5-poliger XLR-Buchsenstecker
€2.06 *
incl. tax, plus shipping costs
Availability:
Currently not available
Currently not available
Please choose a variant.
Item number: 120804665
EAN: 810087375102
MPN: 1621000246
NEW
Description Videos 0 Downloads 0
Description
Seetronic SCMF5-B-BK is a professional 5-pin XLR female cable connector designed for reliable... more
Back to the overview
All information about the product:
"Seetronic SCMF5-B-BK 5-pin XLR female connector"
Seetronic SCMF5-B-BK is a professional 5-pin XLR female cable connector designed for reliable signal transmission in lighting, audio, and control systems. Built with a durable black-plated housing and silver-plated copper alloy contacts, it delivers excellent conductivity and stable performance for professional DMX and audio applications.
The SCMF5-B-BK supports cable outer diameters from 3.5-8 mm and includes interchangeable cable clamps for flexible cable management. Featuring a secure latch-lock mechanism and a compact no-ring design, it is ideal for touring equipment, stage productions, and professional installations where dependable XLR connectivity is essential.
Technical data:
SPECIFICATION
Product Parameters
  • Connection type: XLR
  • Gender: Female
Electrical Parameters
  • Capacitance between contacts: ≤ 7 pF
  • Contact resistance: ≤ 3 mΩ
  • Dielectric strength: 1.5 kV DC
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 7.5 A
  • Rated voltage:
Mechanical Parameters
  • Cable O.D. (black strain relief): 3.5–6 mm
  • Cable O.D. (white strain relief): 6–8 mm
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Service life: > 1000 mating cycles
  • Cable size: Max. 1.0 mm² / 18 AWG
  • Locking device: Latch lock
Material and Environmental Parameters
  • Boot: PA
  • Contacts: Cu alloy
  • Contact plating: Ag
  • Insert: PA
  • Housing: Zinc alloy
  • Housing plating: Black plating
  • Strain relief: POM
  • Flame-retardant grade: UL 94 HB
  • Protection class: IP40
  • Temperature range: -30°C ~ +80°C
subject to change without notice
