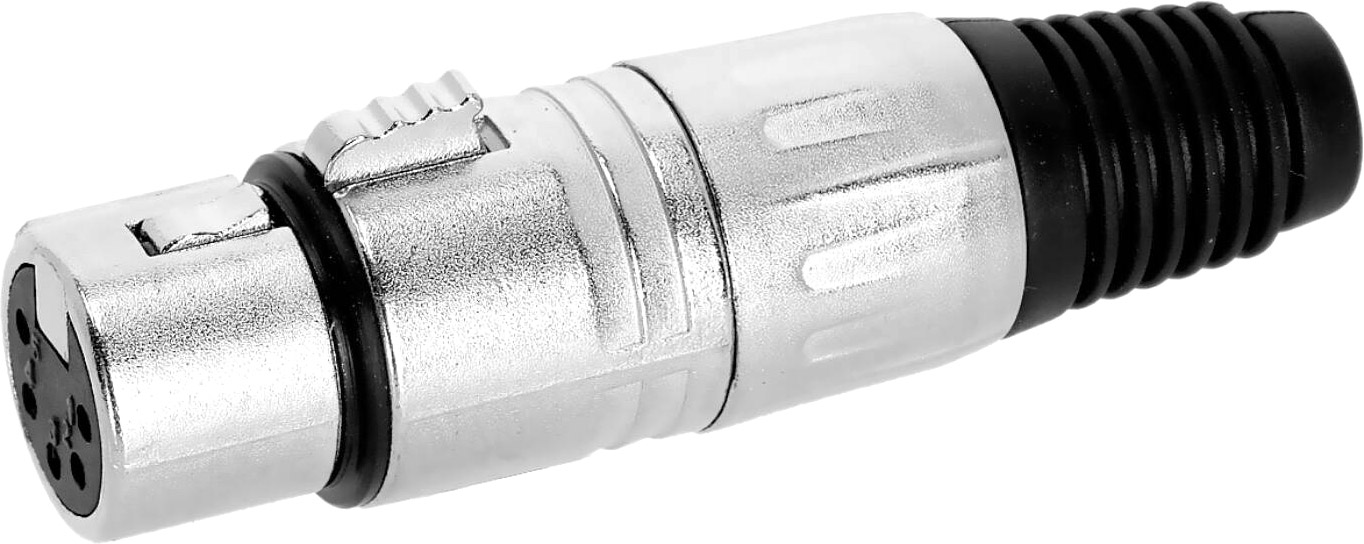

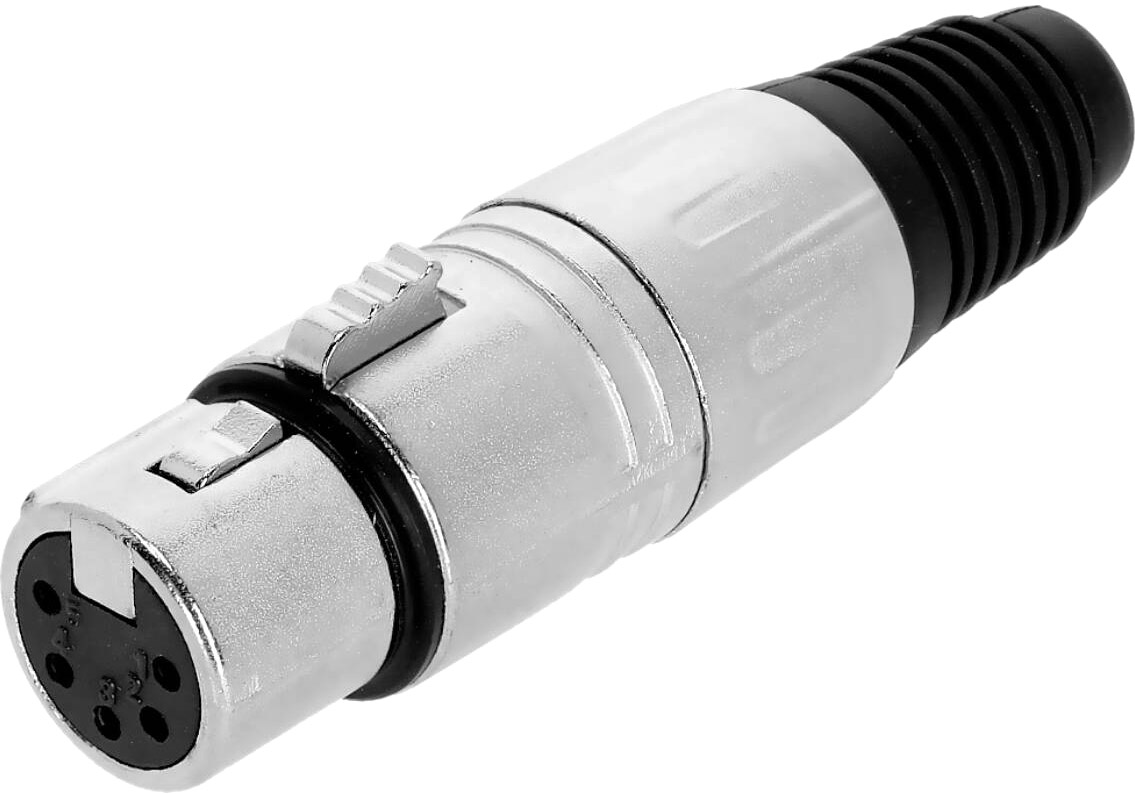

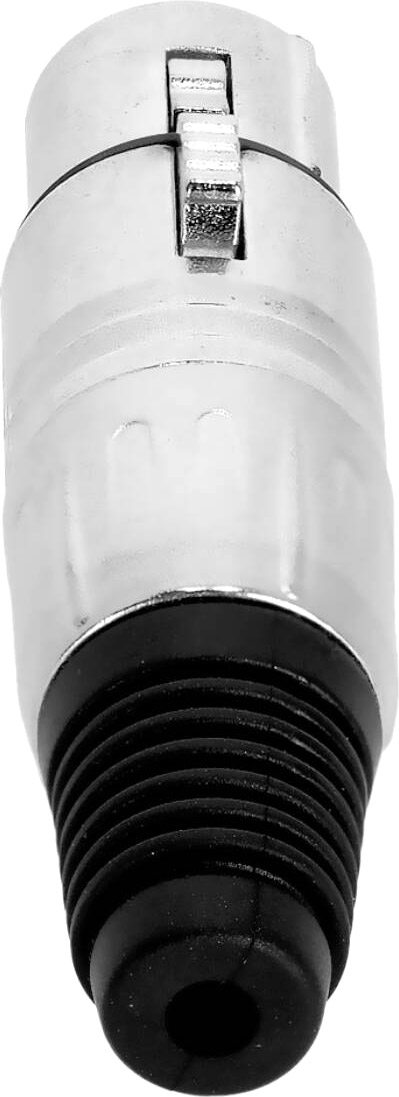

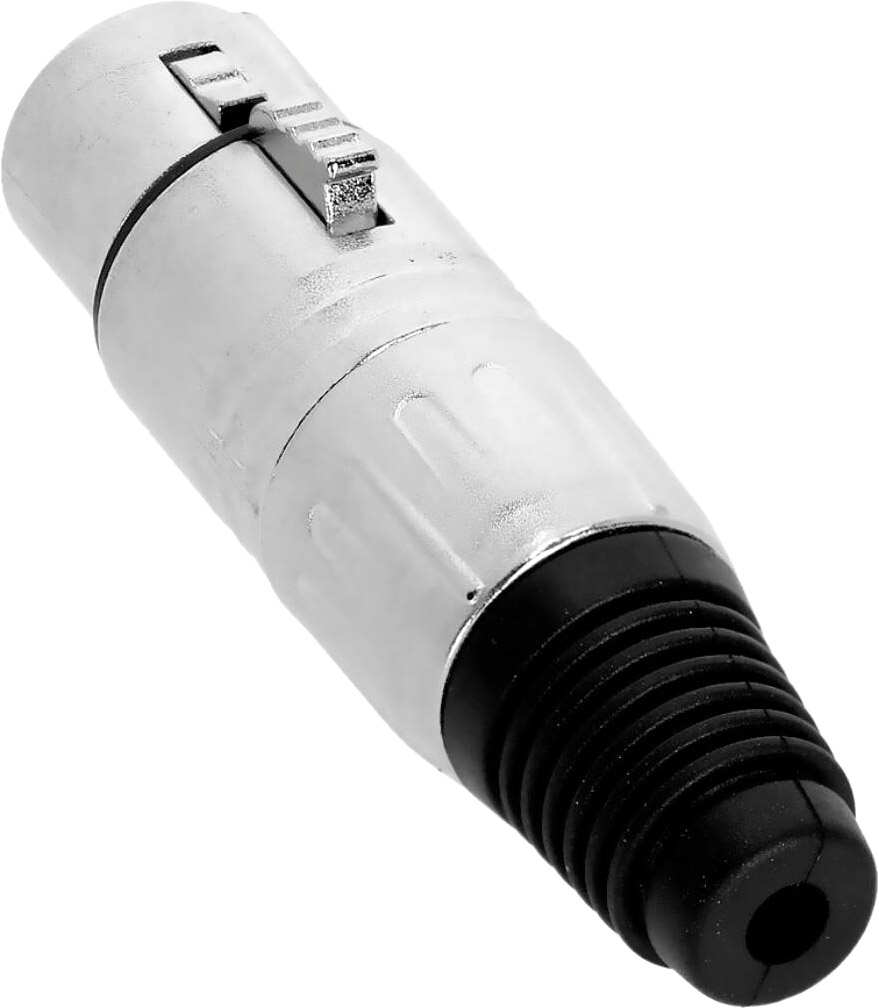

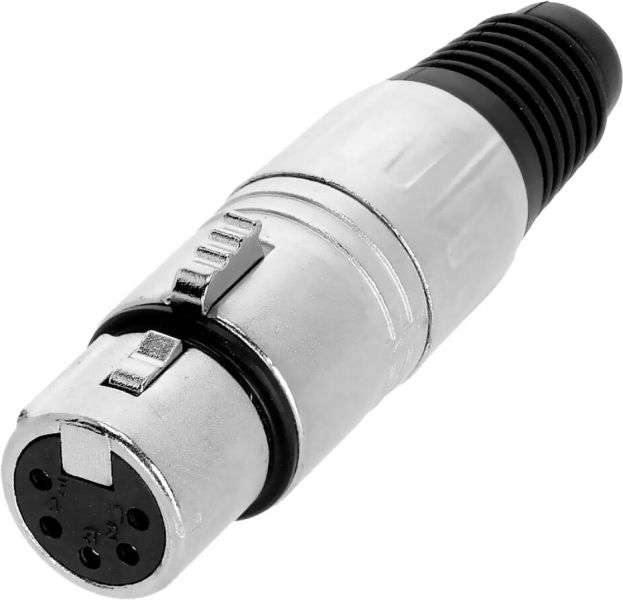

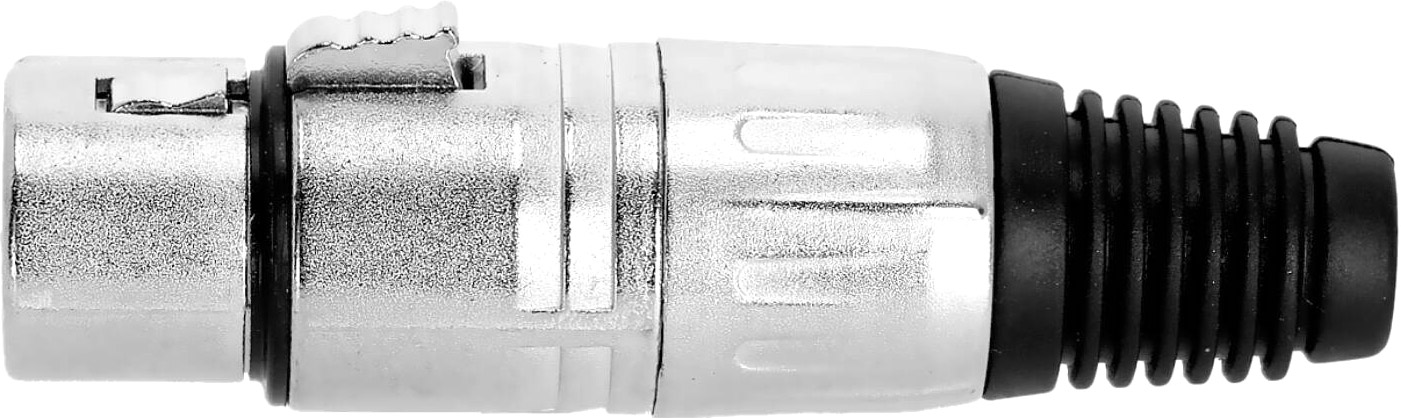

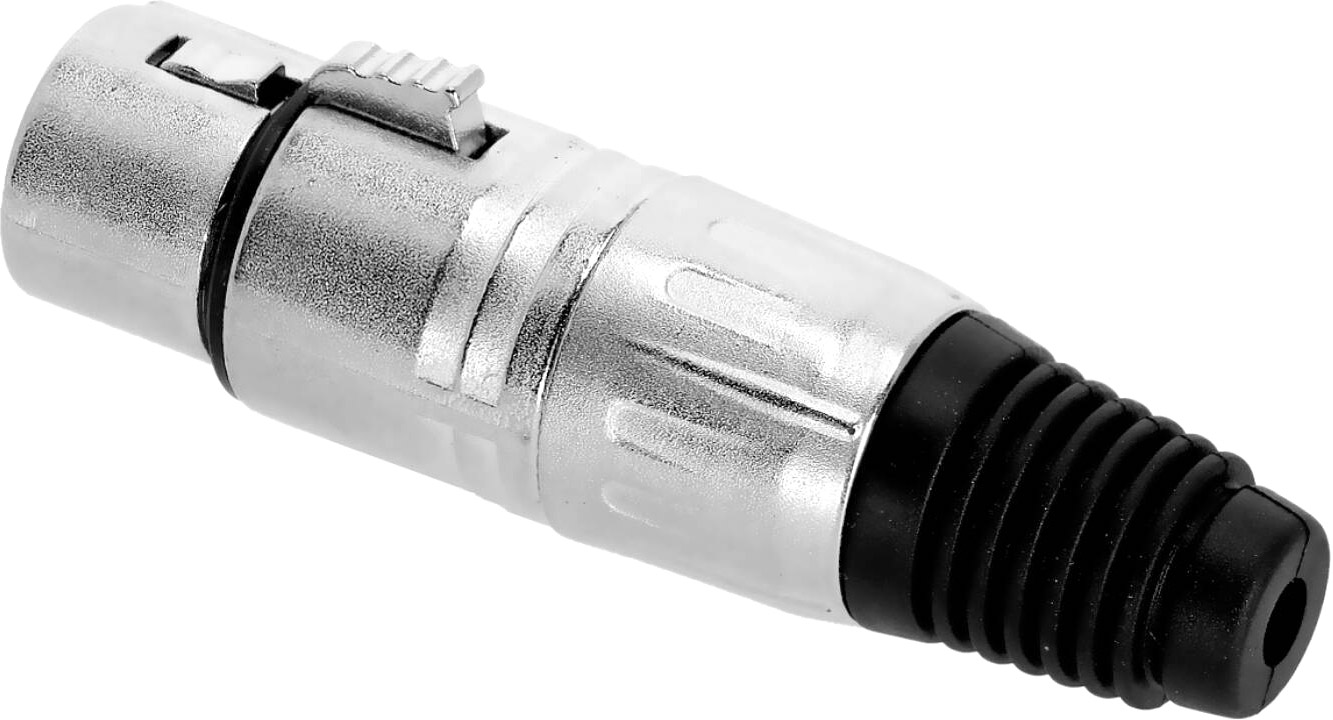

Adam Hall Connectors 4 STAR C XF5 - XLR connector 5-pole female

Preview: Adam Hall Connectors 4 STAR C XF5 - XLR Stecker 5-Pol female

Adam Hall Connectors 4 STAR C XF5 - XLR Stecker 5-Pol female

€2.35 *

incl. tax, plus shipping costs

Availability:

Near-term available
Delivery time: approx. 1 week

Delivery time: approx. 1 week

Item number: 500127755

EAN: 4049521637551

MPN: K4CXF5

XLR connector 5-pole female High quality XLR connector from our 4 Star Series For cables... more

Back to the overview

All information about the product:

"Adam Hall Connectors 4 STAR C XF5 - XLR connector 5-pole female"

XLR connector 5-pole female

High quality XLR connector from our 4 Star Series
For cables with a diameter of 5 - 6.5 mm
5-pole plug with silver-plated contacts
Sturdy and durable zinc cast housing

Our standard XLR connector from the 4 Star series. 5-pin XLR connectors have established themselves in the lighting sector. Are you looking for a standard connector? Then you've come to the right place! From our 4 Star Series, you get a high-quality XLR here. Our 5-pin XLR plugs are also available in black and as an IP65 version.

Technical data:

Product type:	Plugs and Connectors
Type:	XLR Connectors
Poles:	5
Gender:	female
Cable diameter:	4 - 6,5 mm
Contacts:	silver plated
Connection type:	solder contacts
Color:	Silver
Housing:	die-cast zinc
Length:	70 mm
Diameter:	19.3 mm
Weight:	0,02 kg
