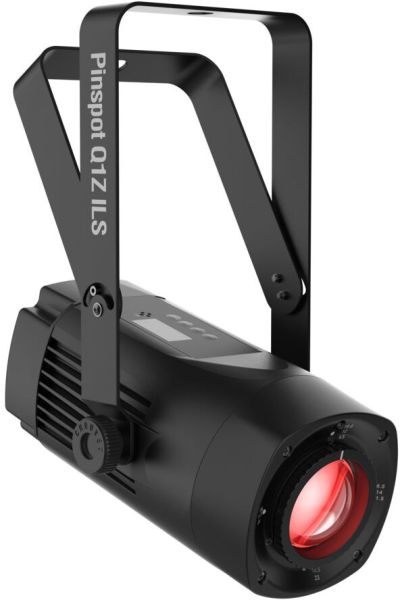

Chauvet DJ Pinspot Q1Z ILS

Pinspot Q1Z ILS

The PinSpot Q1Z ILS is a compact 20-watt LED pinspot with four colors (RGBW) and simple menu navigation via the OLED display. ILS compatibility makes creating coordinated light shows with this device and different types of spotlights as easy as ABC. The manual zoom provides versatility for short and long throw applications. This easy-to-use device can be conveniently controlled with the IRC-6 remote control or with an ILS controller of your choice, such as the ILS Command.

Highlights

• Compact pinspot with a 20 W quad-color RGBW LED
• Manual zoom for applications with short or long range
• D-Fi USB compatibility for wireless master/slave or DMX control
• Easy navigation and access to all functions directly via the OLED display
• Convenient, wireless control without DMX with the IRC-6 remote control
• Fits best in the CHS-40 VIP Gear Bag

Specifications

• DMX channels: 4, 6 or 7
• DMX connections: 3-pin XLR
• Light source: 1 LED (four-color RGBW) 20 W, (5.3A), 50,000 hours life expectancy
• Strobe rate: 0 to 33 Hz
• Zoom Angle: 5° to 25°
• Weight: 1.36 kg
• Size: 308 x 89 x 217 mm
• Approvals: CE, UKCA, ROHS
• Power and electricity:
  9 W, .3 A @ 120 V, 60 Hz
  20 W, .2 A @ 230 V, 50 Hz
• Optional controls: IRC6, ILSCOMMAND
• Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Bracket Mounting Hole: M12
• Light intensity (Illuminance):
  (narrow): 4,081 lux @ 2 m
  (wide): 623 lux @ 2 m

Included in the scope of delivery

• Pinspot Q1Z ILS
• Power cable
• Quick guide
