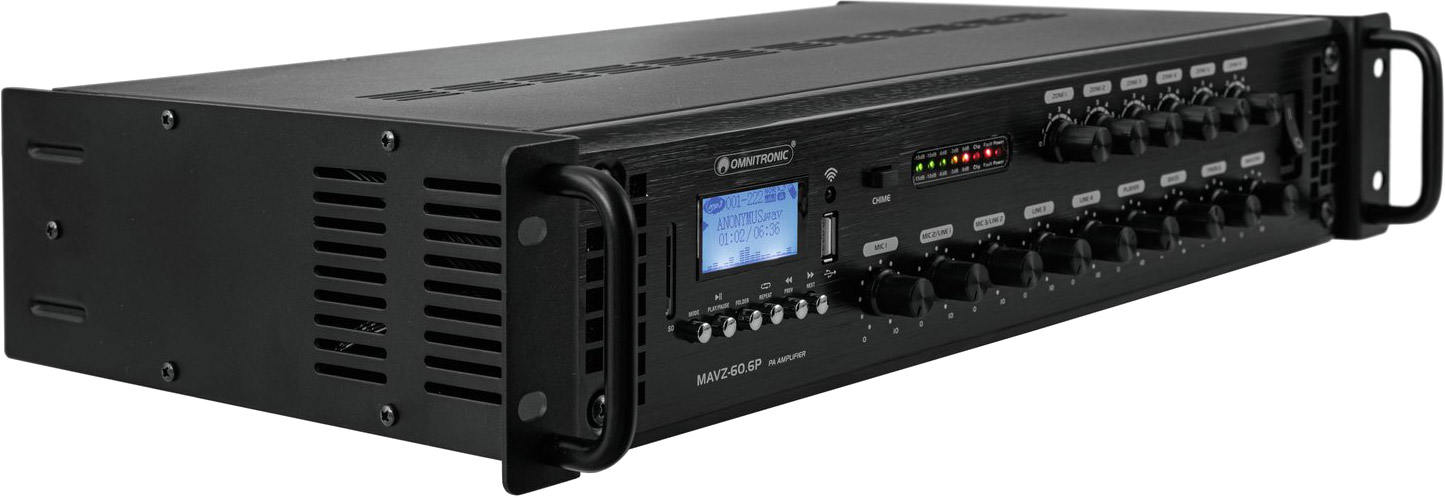

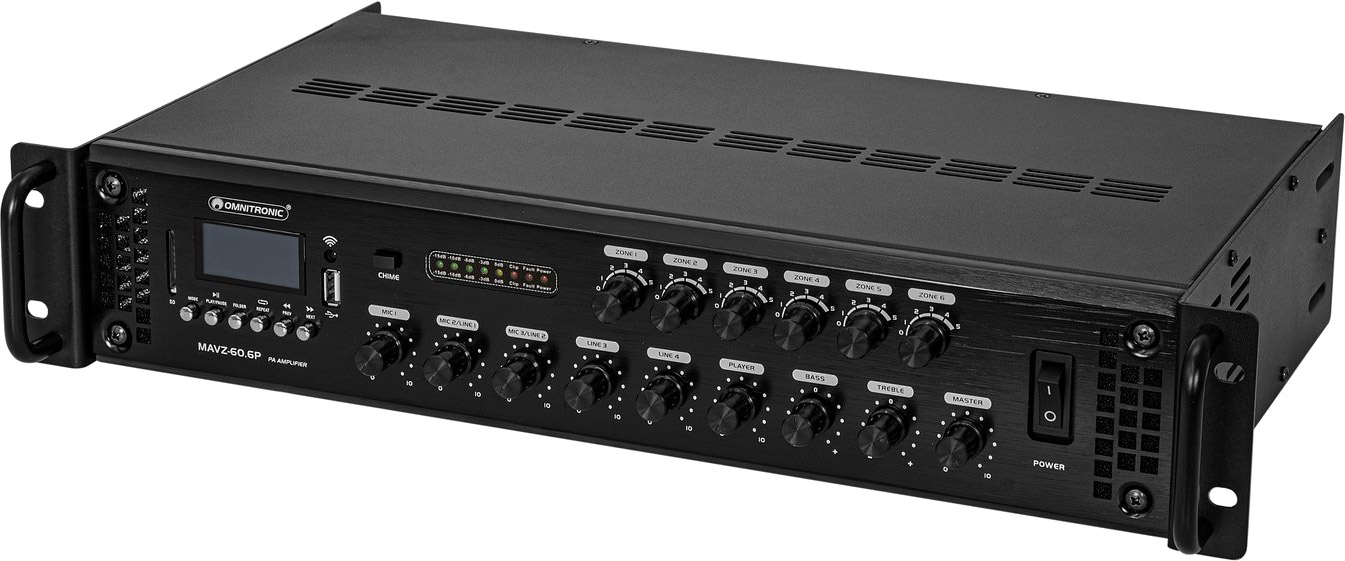

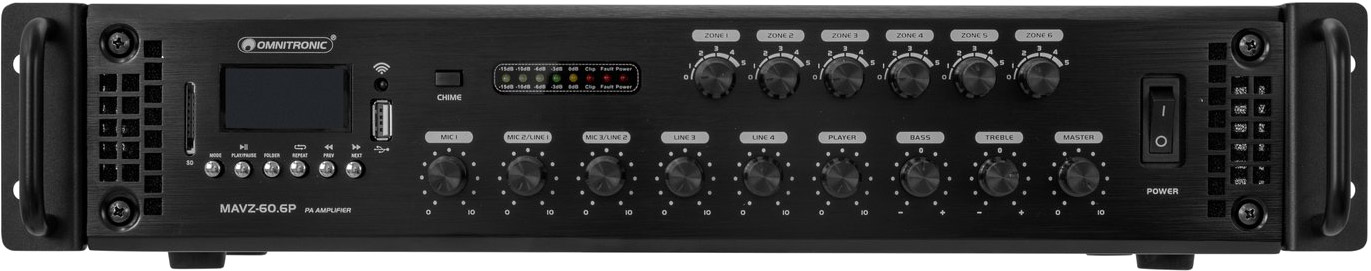

OMNITRONIC MAVZ-60.6P PA Mixing Amplifier -B-Stock-

Preview: OMNITRONIC MAVZ-60.6P ELA-Mischverstärker -B-Stock-

OMNITRONIC MAVZ-60.6P ELA-Mischverstärker -B-Stock-

This article is currently not available.

€239.00 * €299.00 * (20.07% Saved)

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Currently not available

Item number: 200022460D

EAN: 4026397703610

MPN: 80709784

Note: The items in the category sales are remnants or items from customer returns. These items... more

Back to the overview

All information about the product:

"OMNITRONIC MAVZ-60.6P PA Mixing Amplifier -B-Stock-"

Note: The items in the category sales are remnants or items from customer returns.
These items are only available in limited quantities, fully functional but partly without original packaging.
If you have any questions about the product pictured here, please contact us before making your purchase to avoid possible discrepancies. We will be happy to inform you.

Comments on the article:

Item with signs of wear

6-zone-PA mixing amplifier with audio player, IR remote control and Bluetooth, adjustable zones, 60 W RMS

Comfortable control of PA speakers via 6-zone technology
6 PA zone outputs with separate 5-step level controls
Output for low-impedance speakers (4-16 ohms)
SD card slot and USB port
Folder navigation, repeat functions and random play
3 microphone inputs with separate level controls
Mic 1 with phantom power and priority circuit
Mic 2 and 3 switchable mic/line
2 line inputs with separate level controls
1 line output
Treble and bass and master controls for the output signal
5-digit LED level meter
Chime, switchable
The device is cooled by cooling fan

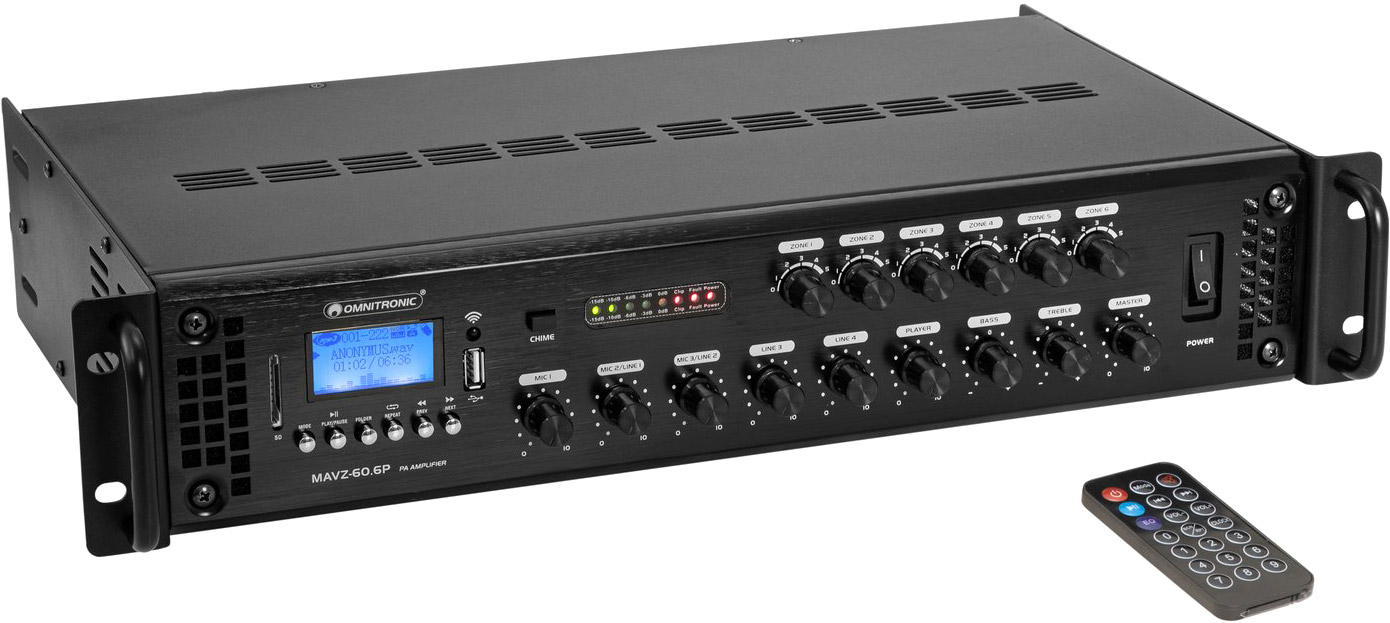

Control via IR remote control; Bluetooth
(19") 48.3 cm rack installation 2 U
For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms

Package contents

1 x amplifier, 1 x user manual, 1 x remote control, 1 x battery, 2 x holder, 4 x screw

Power supply:	230 V AC, 50 Hz
Power consumption:	120 W
Output power:	60 W RMS
Power connection:	Fixed power supply cord with safety plug
Frequency range:	50 - 18000 Hz
S/N ratio:	>75 dB microphone >85 dB line
THD:
Cooling:	Cooling fan
Impedance:	Public address systems 100V; 4-16 ohms; Public address systems 70V
Control:	IR remote control; Bluetooth
Audio player:	USB + SD + Bluetooth
Zone output:	6 adjustable zones
Controls:	Power on/off transient; Overvoltage; short-circuit

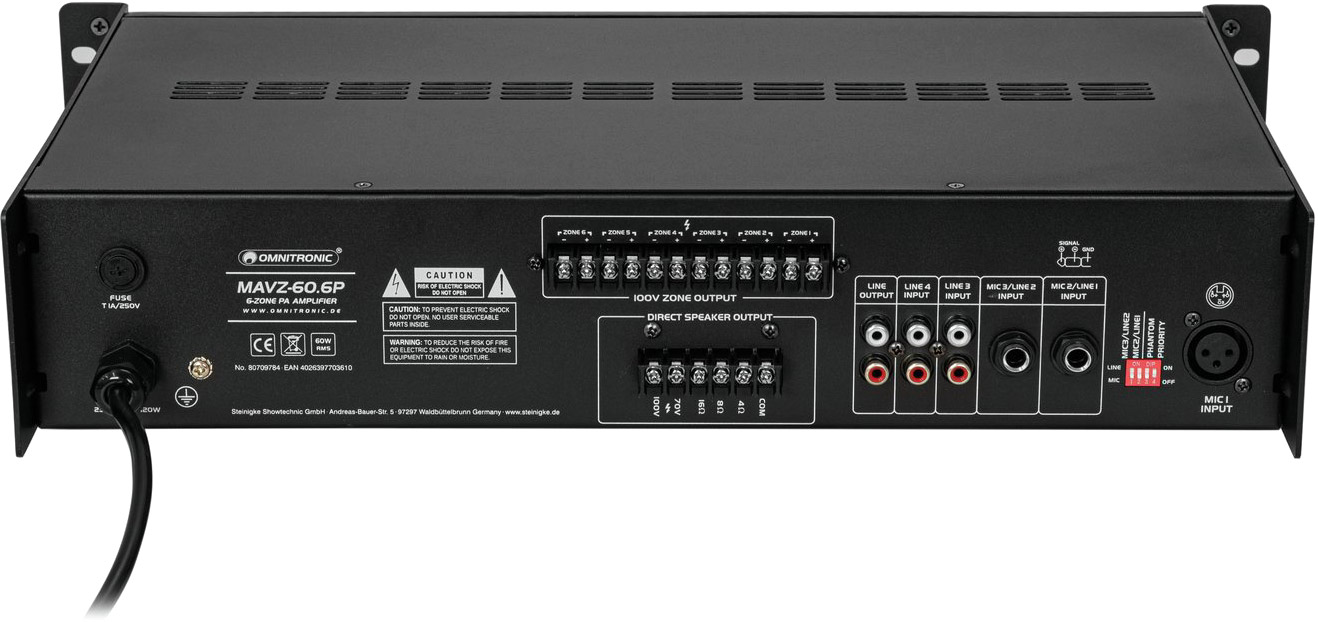

Connections:	Input: microphone via 2 x 6.3 mm plug (unbal.) Input: microphone via 1 x 3-pin XLR Input: line via 3 x stereo RCA 0,3 V Output: line via 1 x stereo RCA 0,3 V Output: speaker via screw terminal
Equalizer:	Master: 1 x 2-band tone control mono
Music format:	MP3
Number of files:	Max. 999
Available storage media:	USB devices/SD cards max. 32GB (FAT 32)
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48,3 cm Depth: 32 cm Height: 9,2 cm
Weight:	5,10 kg
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
