Naxpro-Truss GS 34 Straight 4 ft (121,92 cm) -B-Stock-

Note: The items in the category sales are remnants or items from customer returns.
These items are only available in limited quantities, fully functional but partly without original packaging.
If you have any questions about the product pictured here, please contact us before making your purchase to avoid possible discrepancies. We will be happy to inform you.

Comments on the article:

• Items with slight signs of wear
• trade fair merchandise

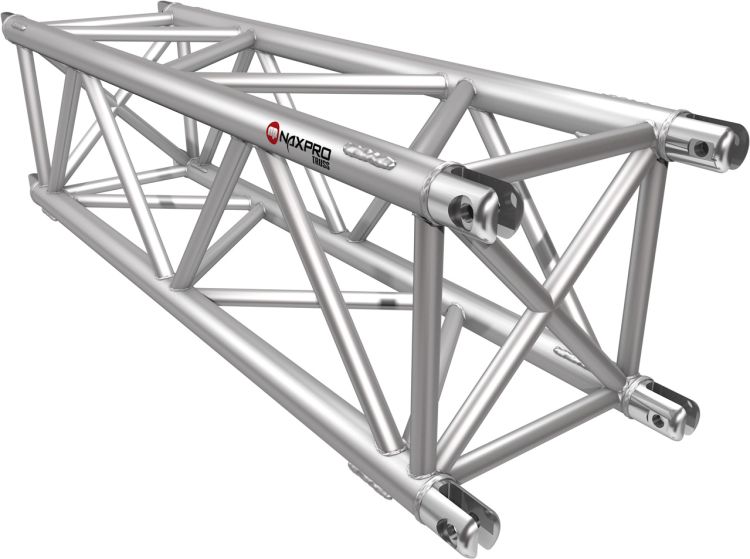

Naxpro-Truss GS 34 Truss System

The heavy-duty TÜV certified truss Naxpro-Truss GS 34 offers a perfect combination of compact size and high load possibilities. GS stands for Gabelsystem (fork system) and offers with a massive tube of 48.3 x 4.5 mm exceptionally high payload values.

Naxpro-Truss GS 34 is therefore ideally suited for the stage roof constructions, large ground supports, cable bridges, antenna towers and all other truss structures, in which Maximum spans and payloads are required. To connect the truss, the forks are pushed together and fixed in position with a plug-in bolt, which allows a convenient and quick assembly.

Technical data:

• Width: 347 mm
• Height: 347 mm
• Outer diameter tubing: 48 x 4,5 mm
• Diagonals: 25 x 3 mm
• Including connectors (4x bolt, 4x r-clip)
• Alloy truss: EN AW 6082 T6
• TÜV certified
• Weight: 14,50 kg
• Dimensions: 121,92 x 34,7 x 34,7 cm (LxBxH)
