DAP-Audio HP-1500 2x 750 W amplifier

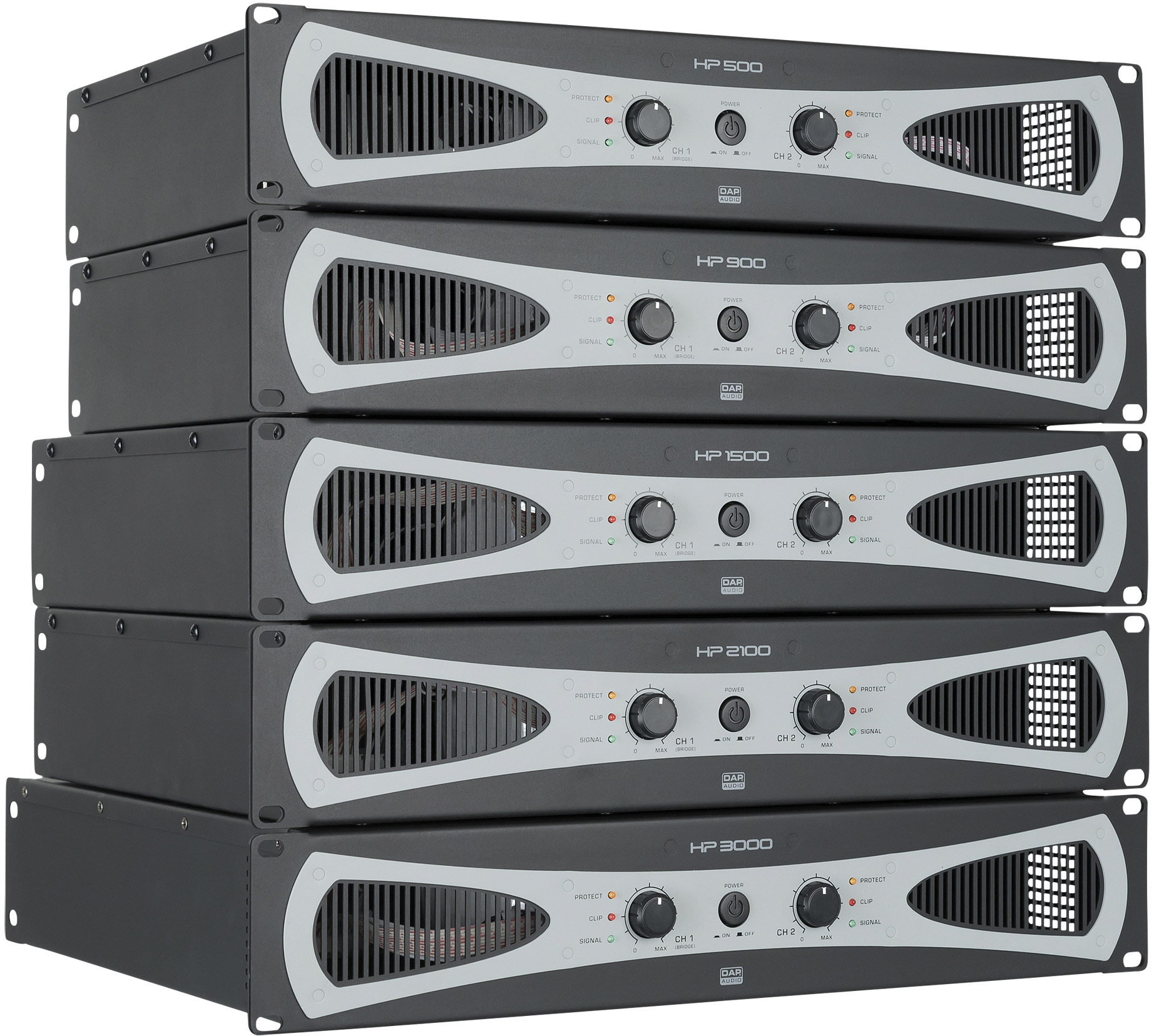

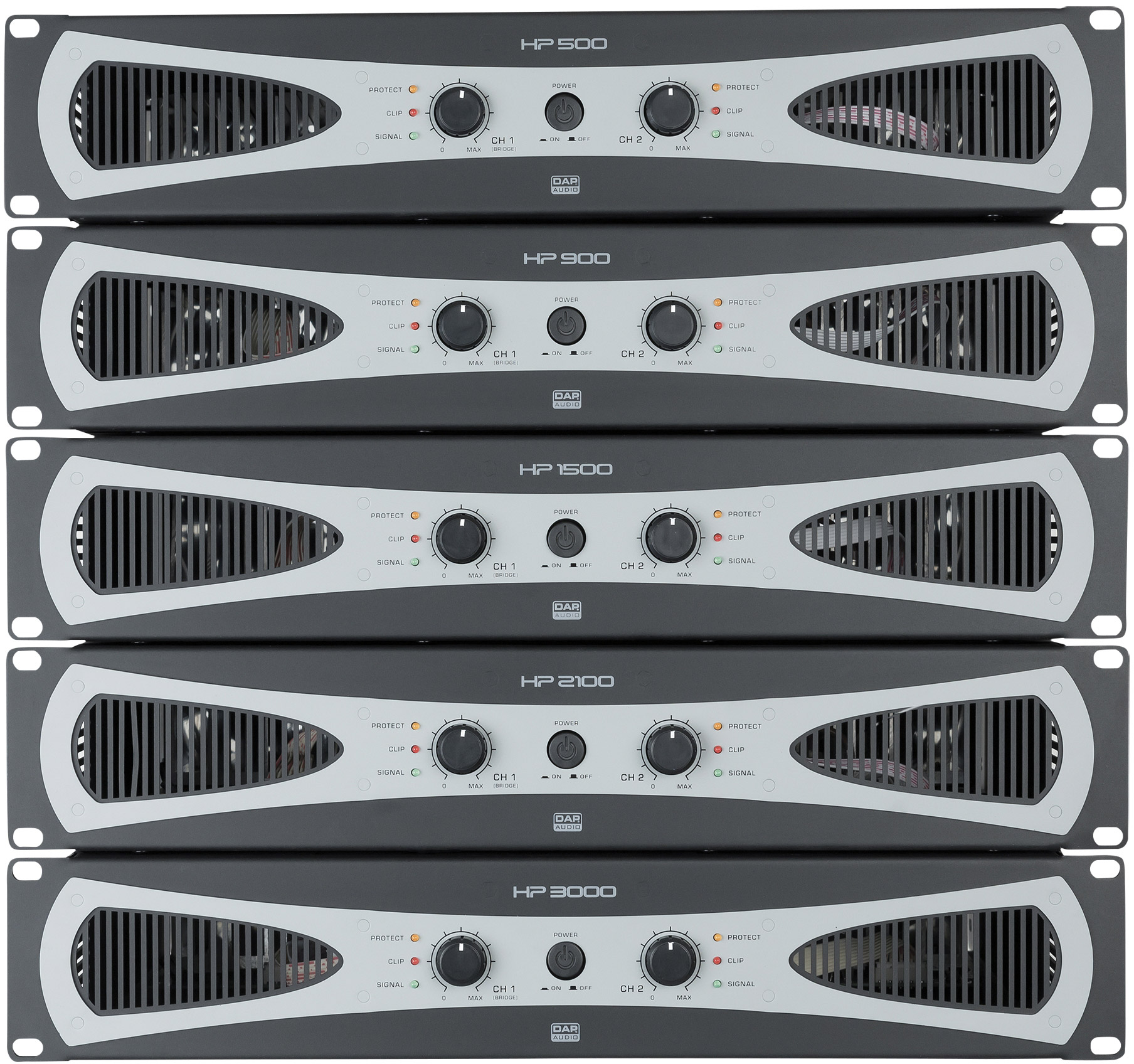

The DAP HP Series consists of 5 models, representing output powers from stereo 200W until 1400W RMS at 4 ohms. All including the best protection circuits, built in a strong solid housing with forced air-cooling to achieve many years of reliable power. They are the best mobile choice for musicians, DJs, and entertainers but also perfect for installations in discos, pubs or any kind of public areas.

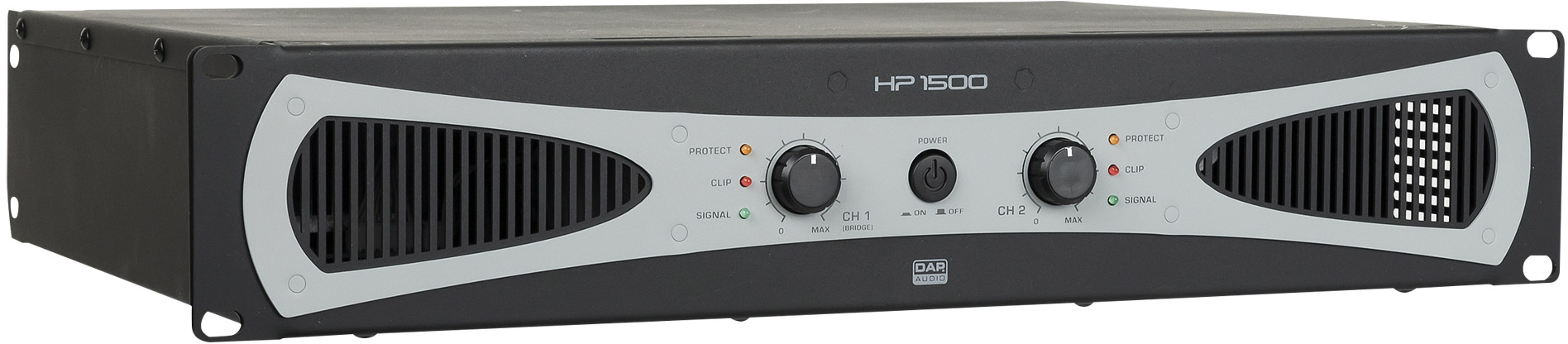

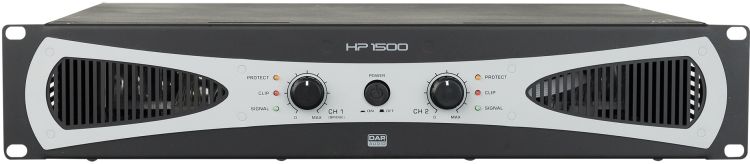

The DAP HP-1500 is a simple yet effective and safe 2x 750 watt amplifier with bridge, parallel and stereo mode, suitable for audio installations at public places, such as clubs, bars and other small venues. Its output is sufficient for everyone to sing along and dance to their favorite tunes.

The HP-1500 is safe to use since it is protected from clipping, overloading and overheating. It can be built into a 19-inch rack or case and has a 2 unit height. Rubber feet are included for placement on a cabinet. A power cable is also included.Technical data:

2 ohms Stable:	No
Output per Channel into 8 ohms at 1 kHz:	500 W
Output per Channel into 4 ohms at 1 kHz:	750 W
Bridge Output into 8 ohms at 1 kHz:	1500 W
Output per Channel into 8 ohms from 20 Hz - 20 kHz:	500 W
Output per Channel into 4 ohms from 20 Hz - 20 kHz:	750 W
Bridge Output 8 ohms from 20 Hz - 20 kHz:	1500 W
Output Channels:	2
Output Gain:	34.5 dB
Output Mode:	Bridge / Parallel / Stereo
Output Connector:	Speaker Connector 4 pole
Mono Inputs:	2
Mono Input Connector:	3-pin XLR
Mono Input Impedance:	20 Ω
Balanced Mono Input Sensitivity:	1 dBu
THD Level %:	Signal-to-noise Ratio:> 100 dB
Slew Rate:	16 V/μs
Amp Technology:	Class H
Damping Factor:	250:1
Crosstalk:	75 dBu
Frequency Response Minimum:	10 Hz
Frequency Response Maximum:	20000 Hz
Power Supply:	220-240 V AC 50 Hz
SMPS:	No
Power Consumption:	1520 W
Fuse:	10 A
Power Connector In:	IEC
Amplifier Airflow:	Front to back
Amplifier Cooling:	Axial fan
Height (mm):	88 mm
Width (mm):	483 mm
Depth (mm):	360 mm
Installation Depth (Excl. Connector):	360 mm
Flightcase Size:	19"
Rack Units:	2 U
Housing:	Metal
Colour:	Gray
Finish:	Powder Coating
Weight:	13.4 kg
IP Rating:	IP20 (indoor use only)
Handles:	No
Electronic Protection:	Clip limiter (fixed) / DC voltage / Overheat / Overload / Short circuit / Softstart / Thermal
LED Indicators:	Clip / Protect / Signal
Included Cables:	IEC cable
Included Accessories:	Rubber feet
