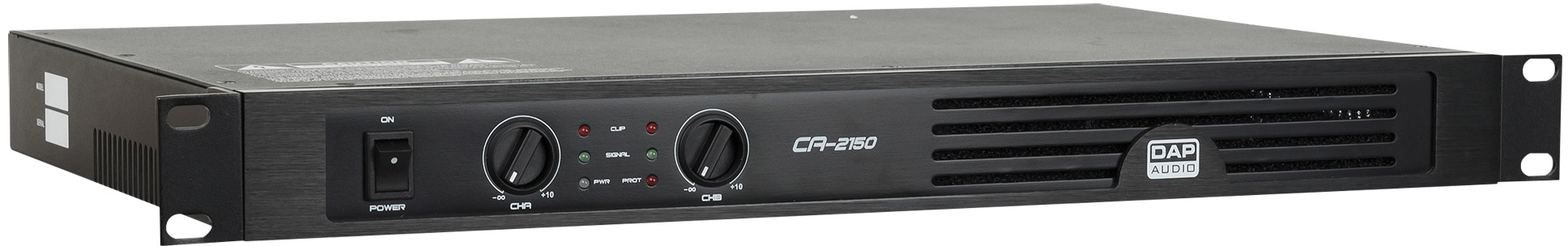

DAP-Audio CA-2150 Compact 2-channel amplifier (2x 150 W)

The DAP CA-2150 is a 2x 150 watt amplifier for a compact 19-inch installation with a 1 unit height. Equipped with Class D technology and SMPS, the CA-2150 has all the necessary functionalities for today's user.

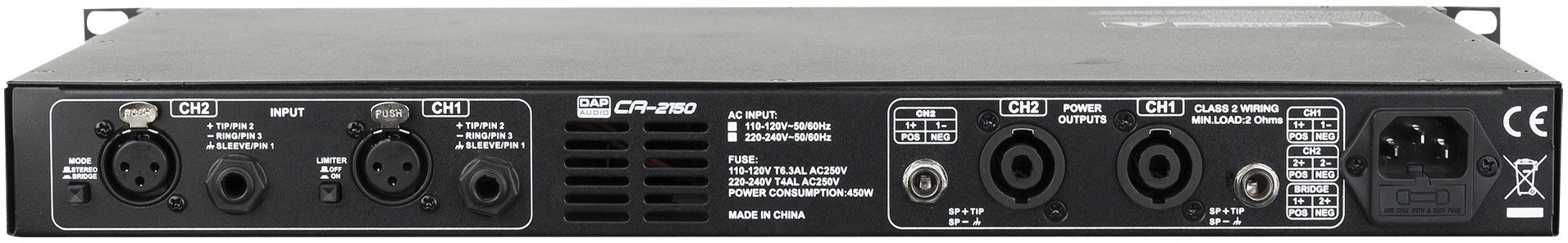

This 2-channel model has XLR and Jack inputs. Available outputs are speakON and 6.3 mm Jack with the option to switch between stereo and bridge mode. In addition, the gain is adjustable per channel.

When a channel signal is causing distortion, a LED signal is indicating you to decrease the source signal level. It is not only protected from clipping, but also from overloading and overheating due to soft start technology.Technical data:

2 ohms Stable:	Yes
Output per Channel into 8 ohms at 1 kHz:	90 W
Output per Channel into 4 ohms at 1 kHz:	150 W
Output per Channel into 2 ohms at 1 kHz:	230 W
Bridge Output into 8 ohms at 1 kHz:	190 W
Bridge Output into 4 ohms at 1 kHz:	275 W
Output per Channel into 8 ohms from 20 Hz - 20 kHz:	90 W
Output per Channel into 4 ohms from 20 Hz - 20 kHz:	150 W
Output per Channel into 2 ohms from 20 Hz - 20 kHz:	230 W
Bridge Output 8 ohms from 20 Hz - 20 kHz:	190 W
Bridge Output 4 ohms from 20 Hz - 20 kHz:	275 W
Output Channels:	2
Output Gain:	28 dB
Output Mode:	Bridge / Stereo
Output Connector:	Speaker Connector 4 pole / TS unbalanced 6.3 mm
Mono Inputs:	2
Mono Input Connector:	3-pin XLR / TRS balanced 6.3 mm
Mono Input Impedance:	20000 Ω
Unbalanced Mono Input Sensitivity:	1 dBv
THD Level %:	Signal-to-noise Ratio:> 96 dB
Slew Rate:	15 V/μs
Amp Technology:	Class D
Damping Factor:	180:1
Crosstalk:	70 dBu
Frequency Response Minimum:	20 Hz
Frequency Response Maximum:	20000 Hz
DSP:	No
Dynamics Processing:	Limiter
Power Supply:	220-240 V AC 50 Hz
SMPS:	Yes
Power Consumption:	425 W
Fuse:	4 A
Power Connector In:	IEC
Amplifier Airflow:	Front to side
Amplifier Cooling:	Axial fan
Height (mm):	44 mm
Width (mm):	484 mm
Length (mm):	281 mm
Installation Depth (Excl. Connector):	281 mm
Flightcase Size:	19"
Rack Units:	1 U
Housing:	Metal
Colour:	Black
Finish:	Powder Coating
Weight:	3.7 kg
IP Rating:	IP20 (indoor use only)
Handles:	No
Electronic Protection:	Clip limiter (fixed) / DC voltage / Overheat / Overload / Short circuit / Softstart
LED Indicators:	Clip / Power / Protect / Signal
Included Cables:	IEC cable
