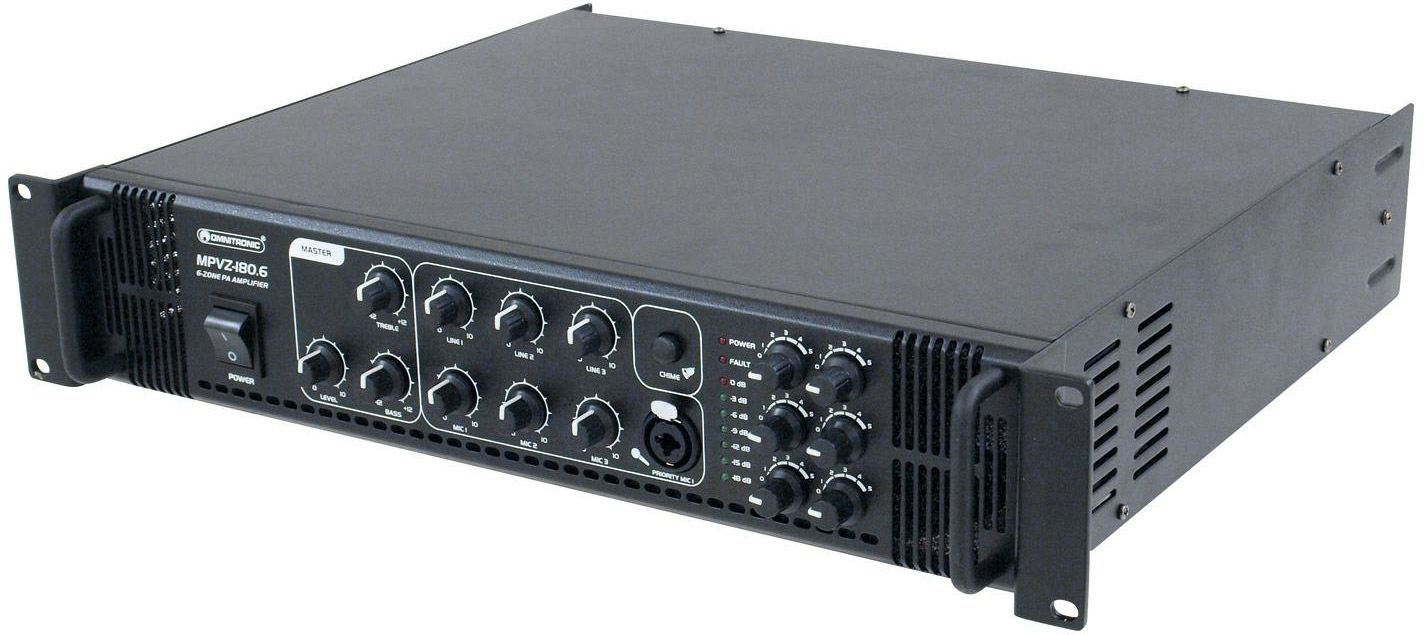

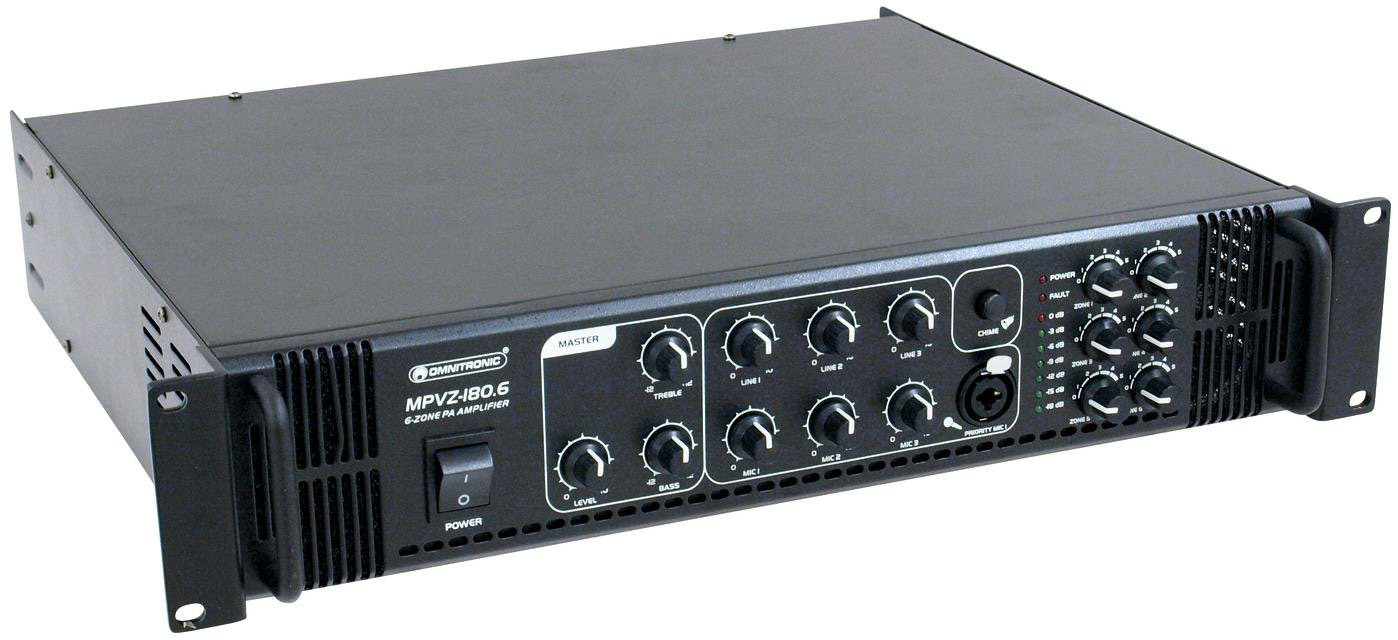

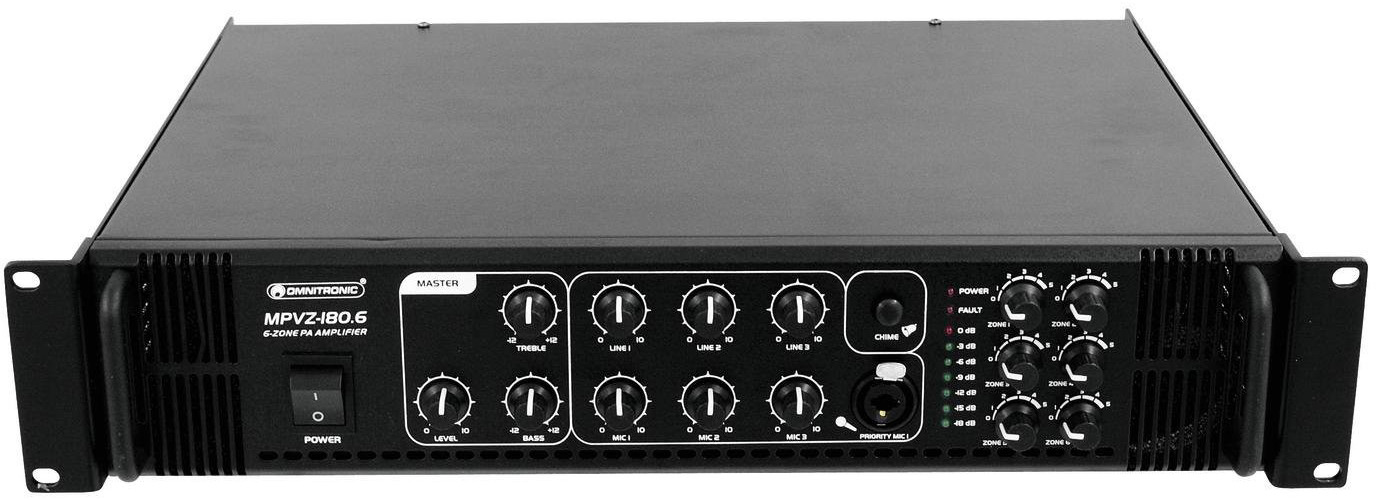

OMNITRONIC MPVZ-180.6 PA Mixing Amplifier
€449.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 200013310
6 zone PA mixing amplifier adjustable zones, 180 W RMS Comfortable control of PA speakers via... more
All information about the product:
"OMNITRONIC MPVZ-180.6 PA Mixing Amplifier"
6 zone PA mixing amplifier adjustable zones, 180 W RMS
- Comfortable control of PA speakers via 6-zone technology
- 6 PA zone outputs with separate 5-step level controls
- Output for low-impedance speakers (4-16 ohms)
- 2 rear microphone inputs (6.3 mm jack, unbal.)
- 1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
- All microphone inputs with separate level controls
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-digit LED level meter
- Master control for the output signal
- Highly efficient Air flow from front to rear
- The device is cooled by temperature-controlled fan
- (19") 48.3 cm rack installation 2 U
Package contents
- 1 x amplifier, 1 x user manual
Power supply: | 230 V AC, 50 Hz |
Power consumption: | 360,00 W |
Output power: | 180 W RMS |
Power connection: | Fixed power supply cord with safety plug |
Frequency range: | 80 - 16000 Hz |
S/N ratio: | >75 dB Microphone >85 dB line |
THD: | |
Cooling: | Temperature-controlled fan , Air flow from front to rear |
Impedance: | Public address systems 100V; 4-16 ohms; Public address systems 70V |
Zone output: | 6 adjustable zones |
Circuitry: | Class AB |
Controls: | Current limiting; short-circuit; power on/off transient; power on/off transient; Overvoltage; short-circuit |
Status LED: | Power, fault, level meter |

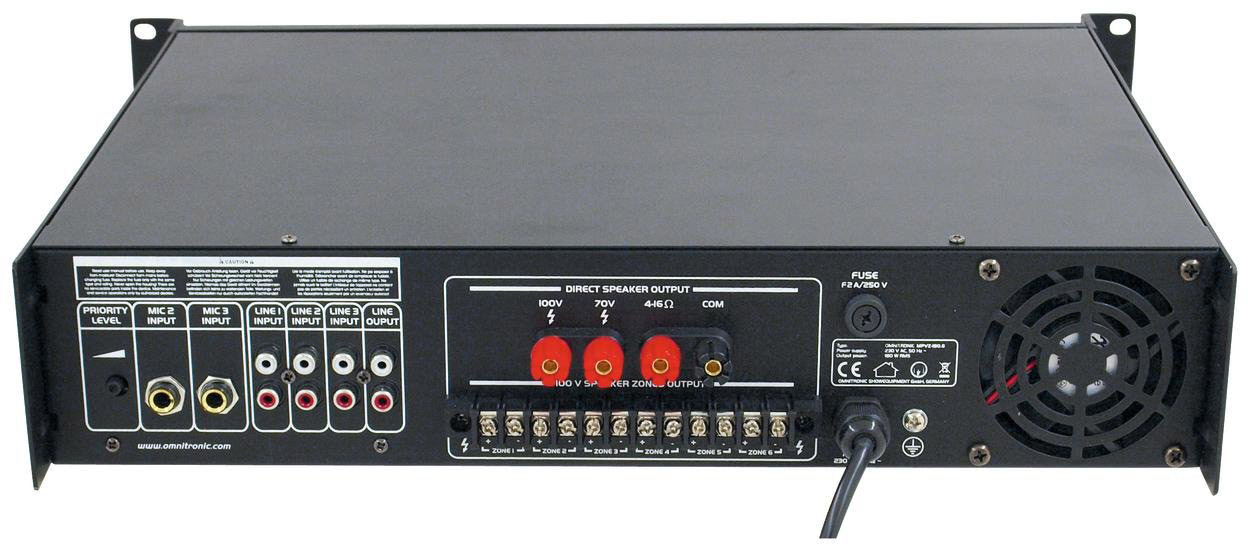

Connections: | Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: Microphone via 2 x 6.3 mm plug (unbal.) Input: line via 3 x stereo RCA 0,3 V Output: line via 1 x stereo RCA Output: speaker via screw terminal |
Equalizer: | Master: 1 x 2-band tone control mono |
Material: | Metal |
Color: | Black |
Housing design: | (19") 48.3 cm rack installation 2 U |
Dimensions: | Width: 48,3 cm Depth: 38,5 cm Height: 8,9 cm |
Weight: | 9,30 kg |
