DAP-Audio ZA-9120TU 120 W 100 V 2-Zone Mixer Amplifier

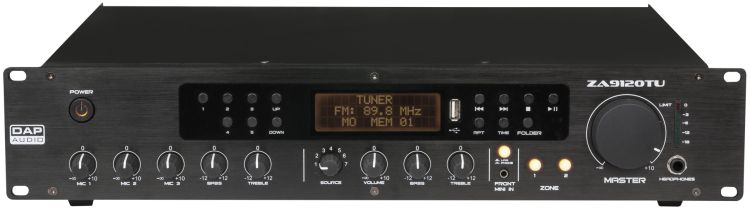

The DAP ZA-9120TU is a 120 watt, 100 V mixer amplifier with 7 selectable sources, 3 microphone inputs and 2 zones. All microphone inputs are equipped with phantom power and can also be selected as line input. An integrated speech filter can be applied to improve the audibility. It has 3 dedicated line inputs on the backside and a special easy access line/phone front input to connect mp3 players or mobile devices. It has a built-in USB-Audio player and tuner with a large LCD display which shows the active source, tuner information and ID3 tags. The built-in FM tuner can store 10 presets. The amplifier also has enhanced features such as, priority, chime with adjustable level, emergency input, ducking level control, loop through connection and an output which can be set as line output, music only or microphone only. Each zone also has its own line outputs to connect extra amplifiers and extend the PA system. The ZA-9120TU is the ideal easy to use one-in-all solution for medium size PA systems.

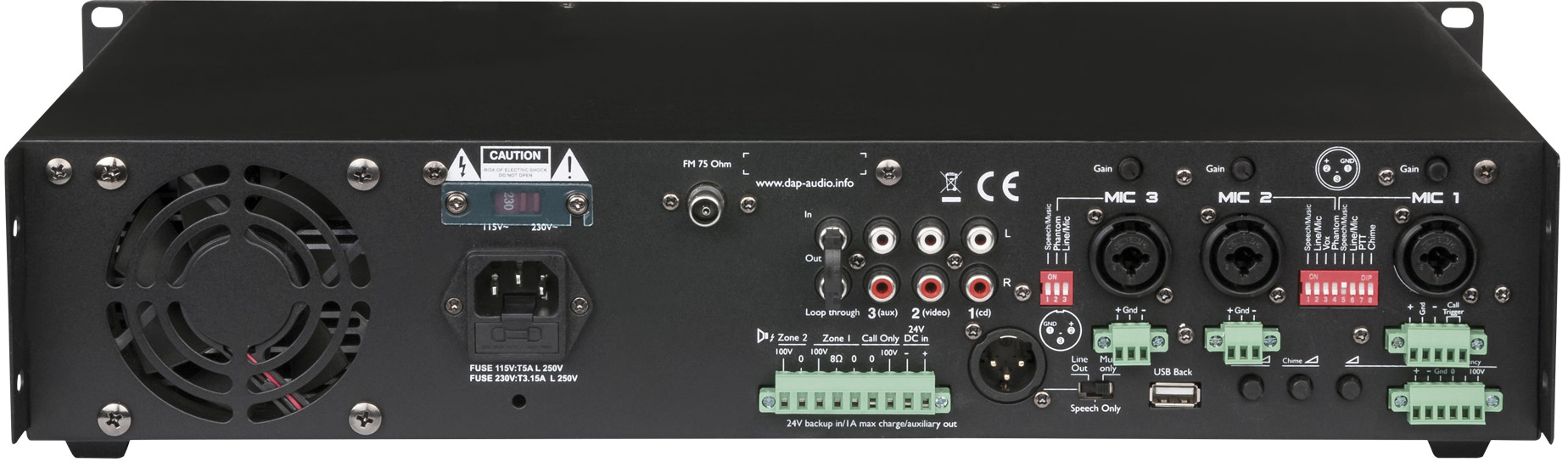

These amplifiers are designed for PA systems with applications such as announcement, intercommunication, background music and broadcasting in convention-halls, shopping centers, dining rooms, auditoriums and recreation areas. These desk top amplifiers have an integrated protective circuit to withstand overload or short-circuits of output. This results in very high reliability and easy installations without extra audio processors. It is a complete range from simple amplifiers till matrix amplifiers with built-in tuner and media player.Technical data:

Power Amplifier RMS Output:	120 W
Output Channels:	2
Output Mode:	Parallel
Output Connector:	Terminal
Main Outputs:	1
Main Output Connector:	RCA
Zone Outputs:	2
Zone Output Connector:	Terminal
Headphone Output:	1
Headphone Output Connector:	TS unbalanced 6.3 mm
Mono Inputs:	3
Mono Input Connector:	3-pin XLR / TS unbalanced 6.3 mm
Stereo Inputs:	3
Stereo Input Connector:	RCA / TRS balanced 3.5 mm
Auxiliary Inputs:	1
Auxiliary Input Connector:	TRS balanced 3.5 mm
Transformer:	100 V
Supported Audio Files:	MP3 / WAV
Supported Format:	FAT32
Maximum Storage Size:	32 GB
Media Input/Output:	USB-A
Playback Functions:	Up (Skip) / Down (Skip) / Play / Pause / Stop / Time / Folder / Repeat
Phantom Power:	18 V
Parametric Channel Equalizer:	2 Bands
Input Channel Equalizer Gain Range:	12 dB
Input Channel Fixed Frequencies:	100, 12.000 Hz
Microphone Input Equalizer Gain Range:	12 dB
Parametric Microphone Equalizer:	2 Bands
Microphone Input Fixed Frequencies:	100, 12.000 Hz
Speech Filter Attenuation:	3 dB
Speech Filter Frequency:	300 Hz
Bluetooth:	No
Tuner:	FM
FM Frequency Start:	87.5 MHz
FM Frequency End:	108 MHz
FM Antenna Impedance:	75 Ω
User Presets:	Yes
User Presets Capacity:	10
Display:	14-segment
Power Supply:	115-230 V AC 50/60 Hz
Backup Power Supply:	24 V DC
Power Consumption:	253 W
Fuse:	2 A
Power Connector In:	IEC
Data Connector In:	USB
Height (mm):	88 mm
Width (mm):	483 mm
Depth (mm):	328 mm
Installation Depth (Excl. Connector):	328 mm
Flightcase Size:	19"
Rack Units:	2 U
Housing:	Steel
Colour:	Black
Finish:	Powder Coating
Weight:	9.3 kg
IP Rating:	IP20 (indoor use only)
Amplifier Cooling:	Axial fan
PTT:	Yes
Chime:	Yes
Ducking:	Yes
VOX:	Yes
Telephone Input:	Yes
Electronic Protection:	Overload / Short circuit
Included Cables:	IEC cable
Included Accessories:	FM Antenna / Green terminal connector
