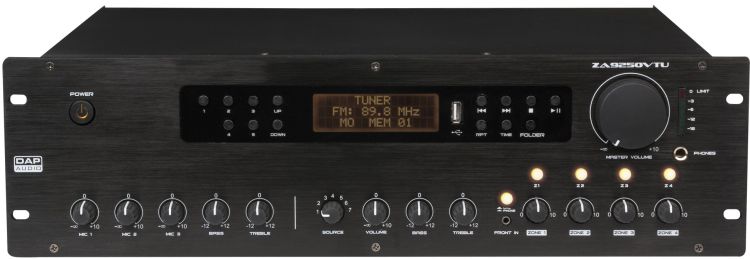

DAP-Audio ZA-9250VTU 250 W 100 V 4-Zone Mixer Amplifier with adjustable zone volume levels

The DAP ZA-9250VTU is a 250-watt 100 V 4-zone mixer amplifier and media player with zone volume control. The 3 microphone/line inputs are equipped with +48 V phantom power and you have a choice of 7 audio sources, including a built-in USB player with two USB inputs (front and rear) and FM tuner with which you can store up to 10 audio stations.

The ZA-9250VTU has several functions. For example, it has a special input for emergency announcements (such as a fire alarm) that will override all other inputs. It is also equipped with an adjustable chime function, ducking level control, loop-through connection and a line output that can be used as a line output, for music only or microphones only. Besides, each zone also has its own line outputs for being able to connect extra amplifiers, allowing you to extend the PA system if needed.

This 100 V zone mixer amplifier is designed to support a PA system intended for intercommunication or background music in public and business areas such as convention halls, shopping malls, dining halls, auditoriums and recreational areas. It has an integrated protection circuit to protect against overload and short circuit of the output. This results in very high reliability and easy installations without the need for additional audio processors.Technical data:

Power Amplifier RMS Output:	250 W
Output Channels:	4
Output Mode:	Parallel
Output Connector:	Terminal
Main Outputs:	2
Main Output Connector:	3-pin XLR / RCA
Zone Outputs:	4
Zone Output Connector:	Terminal / RCA
Headphone Output:	1
Headphone Output Connector:	TS unbalanced 6.3 mm
Mono Inputs:	3
Mono Input Connector:	3-pin XLR / Terminal / TS unbalanced 6.3 mm
Stereo Inputs:	3
Stereo Input Connector:	RCA / TRS balanced 3.5 mm
Auxiliary Inputs:	1
Auxiliary Input Connector:	RCA / TRS balanced 3.5 mm
Transformer:	100 V
Supported Audio Files:	MP3 / WAV
Supported Format:	FAT32
Maximum Storage Size:	32 GB
Media Input/Output:	USB-A
Playback Functions:	Up (Skip) / Down (Skip) / Play / Pause / Stop / Time / Folder / Repeat
Phantom Power:	18 V
Parametric Channel Equalizer:	2 Bands
Input Channel Equalizer Gain Range:	12 dB
Input Channel Fixed Frequencies:	100, 12.000 Hz
Microphone Input Equalizer Gain Range:	12 dB
Parametric Microphone Equalizer:	2 Bands
Microphone Input Fixed Frequencies:	100, 12.000 Hz
Speech Filter Attenuation:	3 dB
Speech Filter Frequency:	300 Hz
Bluetooth:	No
Tuner:	FM
FM Frequency Start:	87.5 MHz
FM Frequency End:	108 MHz
FM Antenna Impedance:	75 Ω
User Presets:	Yes
User Presets Capacity:	10
Display:	14-segment
Power Supply:	115-230 V AC 50/60 Hz
Backup Power Supply:	24 V DC
Power Consumption:	514 W
Fuse:	4 A
Power Connector In:	IEC
Data Connector In:	USB
Height (mm):	134 mm
Width (mm):	483 mm
Depth (mm):	328 mm
Installation Depth (Excl. Connector):	328 mm
Flightcase Size:	19"
Rack Units:	3 U
Housing:	Steel
Colour:	Black
Finish:	Powder Coating
Weight:	14 kg
IP Rating:	IP20 (indoor use only)
Amplifier Cooling:	Axial fan
PTT:	Yes
Chime:	Yes
Ducking:	Yes
VOX:	Yes
Telephone Input:	Yes
Electronic Protection:	Overload / Short circuit
LED Indicators:	Channel select / Output level / Power
Included Cables:	IEC cable
Included Accessories:	FM Antenna / Green terminal connector / Rubber feet
