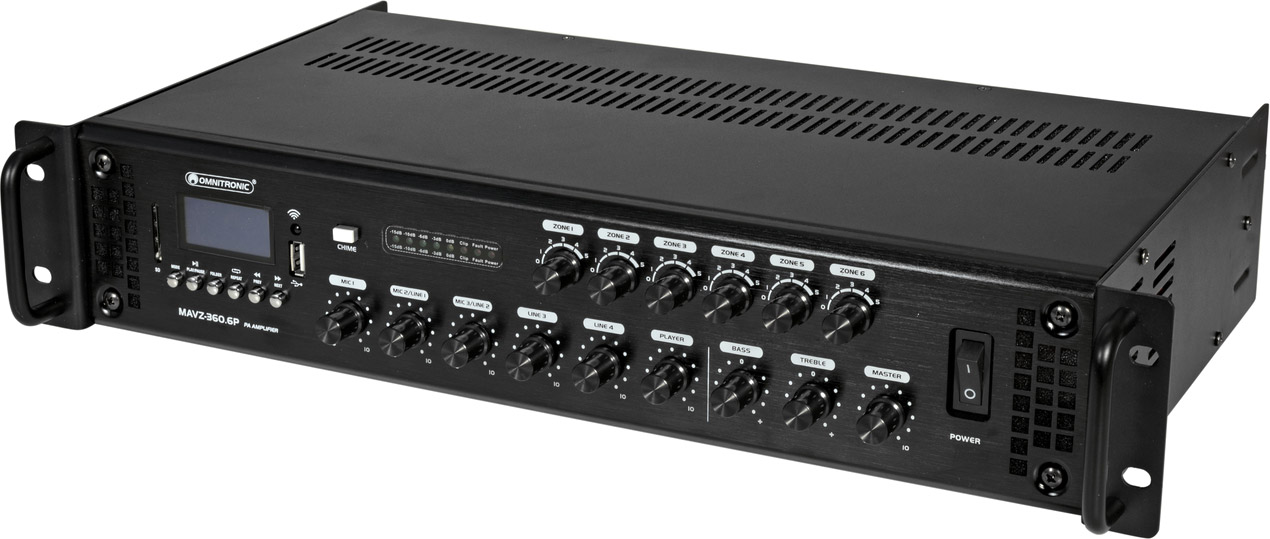

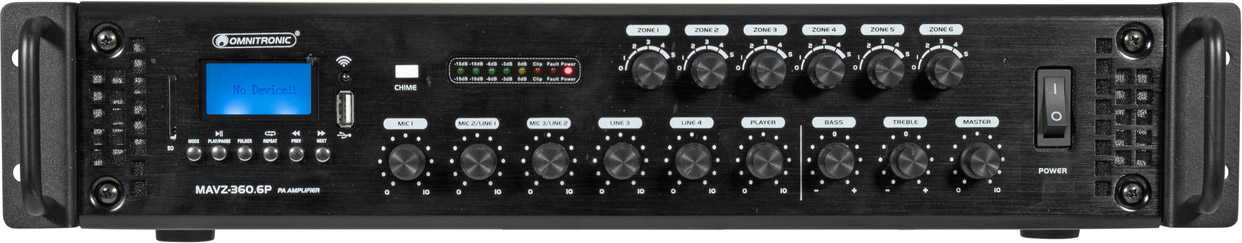

OMNITRONIC MAVZ-360.6P PA Mixing Amplifier

€549.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: 3-5 days

Item number: 200021965

EAN: 4026397703641

MPN: 80709793

6-zone-PA mixing amplifier with audio player, IR remote control and Bluetooth, adjustable zones,... more

All information about the product:

"OMNITRONIC MAVZ-360.6P PA Mixing Amplifier"

6-zone-PA mixing amplifier with audio player, IR remote control and Bluetooth, adjustable zones, 360 W RMS

Comfortable control of PA speakers via 6-zone technology
6 PA zone outputs with separate 5-step level controls
Output for low-impedance speakers (4-16 ohms)
SD card slot and USB port
Folder navigation, repeat functions and random play
3 microphone inputs with separate level controls
Mic 1 with phantom power and priority circuit
Mic 2 and 3 switchable mic/line
2 line inputs with separate level controls
1 line output
Treble and bass and master controls for the output signal
5-digit LED level meter
Chime, switchable
The device is cooled by cooling fan
Control via IR remote control; Bluetooth
(19") 48.3 cm rack installation 2 U
LCD display
For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms

Package contents

1 x amplifier, 1 x remote control, 1 x battery, 2 x holder, 4 x screw, 1 x user manual

Power supply:	230 V AC, 50 Hz
Power consumption:	720 W
Protection class:	Protection class I
Output power:	360 W RMS
Power connection:	Fixed power supply cord with safety plug
Device fuse:	5 x 20 mm, T 6,3 A fuse replaceable
Frequency range:	50 - 18000 Hz
S/N ratio:	>75 dB microphone >85 dB line
THD:
Cooling:	Cooling fan
Impedance:	Public address systems 100V; 4-16 ohms; Public address systems 70V
Control:	IR remote control; Bluetooth
Bluetooth device name:	Bluetooth
Audio player:	USB + SD + Bluetooth
Housing color:	Black
Zone output:	6 adjustable zones
Display type:	LCD display
Controls:	Power on/off transient; Overvoltage; short-circuit
Connections:	Input: microphone via 2 x 6.3 mm plug (unbal.) Input: microphone via 1 x 3-pin XLR Input: line via 3 x stereo RCA 0,3 V Output: line via 1 x stereo RCA 0,3 V Output: speaker via screw terminal
Equalizer:	Master: 1 x 2-band tone control mono
Music format:	MP3
Number of files:	Max. 999
Available storage media:	USB devices/SD cards max. 32GB (FAT 32)
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48,3 cm Depth: 27,5 cm Height: 9,6 cm
Weight:	7,15 kg
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
