LD Systems IMA 240 - Installation Mixer Amplifier 240W @ 4 Ohm / 100 V / 70 V
Express delivery possible
- Line input for emergency signal with normally open contact
- 2 mic/line input terminal strips with mic/line switchover and switchable 24 V phantom power
- Switchable gong function for Mic/Line channel 1
- 2 line inputs with RCA jacks plus Bluetooth 4.0 interface (mono sum)
- 240W class D amplifier with LO-Z/HI-Z switchover and 4 ohm / 100V / 70V outputs
- Balanced AUX line output with music-mix switchover for controlling external devices such as: amplifiers, active subwoofers, systems for on-hold music
- 4 priority settings for a wide range of integration options
- Switchable auto-standby mode for energy saving

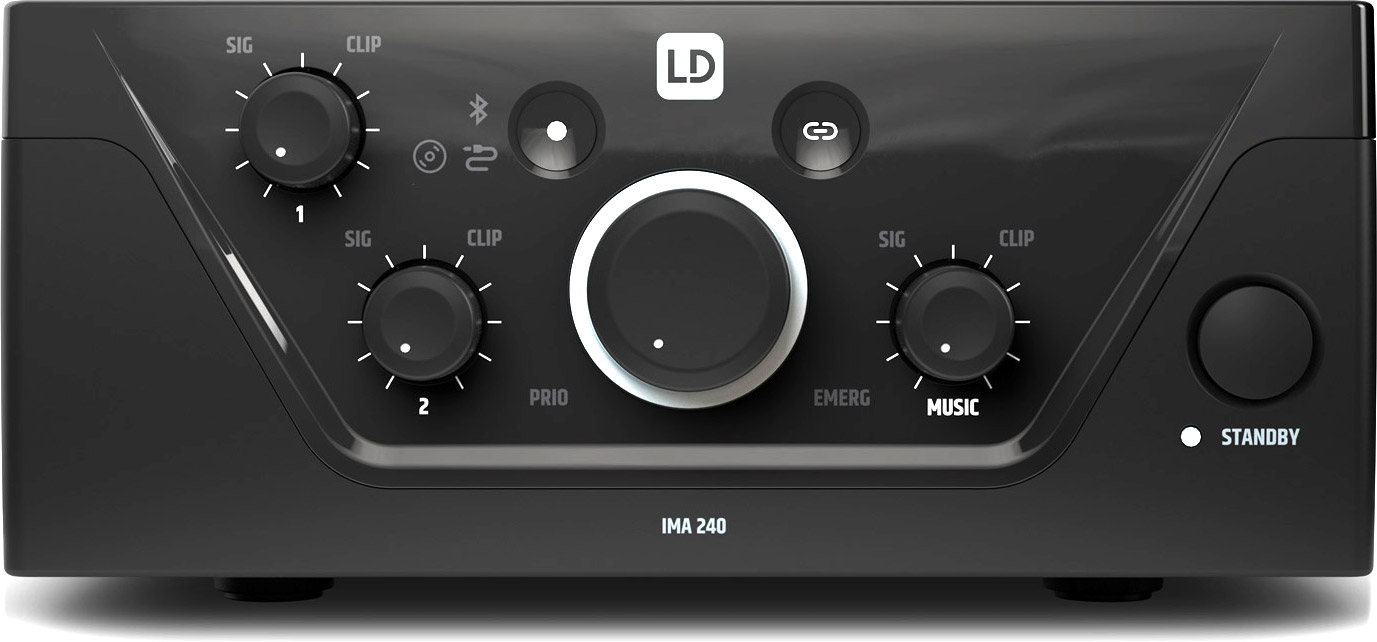

- Intuitive operation via capacitive controls for selecting the music source and Bluetooth pairing
- Universal wide-range switching power supply
For fixed installations, in addition to an unobtrusive appearance, the flexibility and versatility of the mixing amplifier are particularly important. It must be possible to connect various signal sources and microphones. In an emergency, it must be possible to simply mute the input signals to enable announcements or emergency calls. With the IMA 240, LD Systems presents a new mixer amplifier from the IMA series that leaves nothing to be desired in terms of design and flexibility.

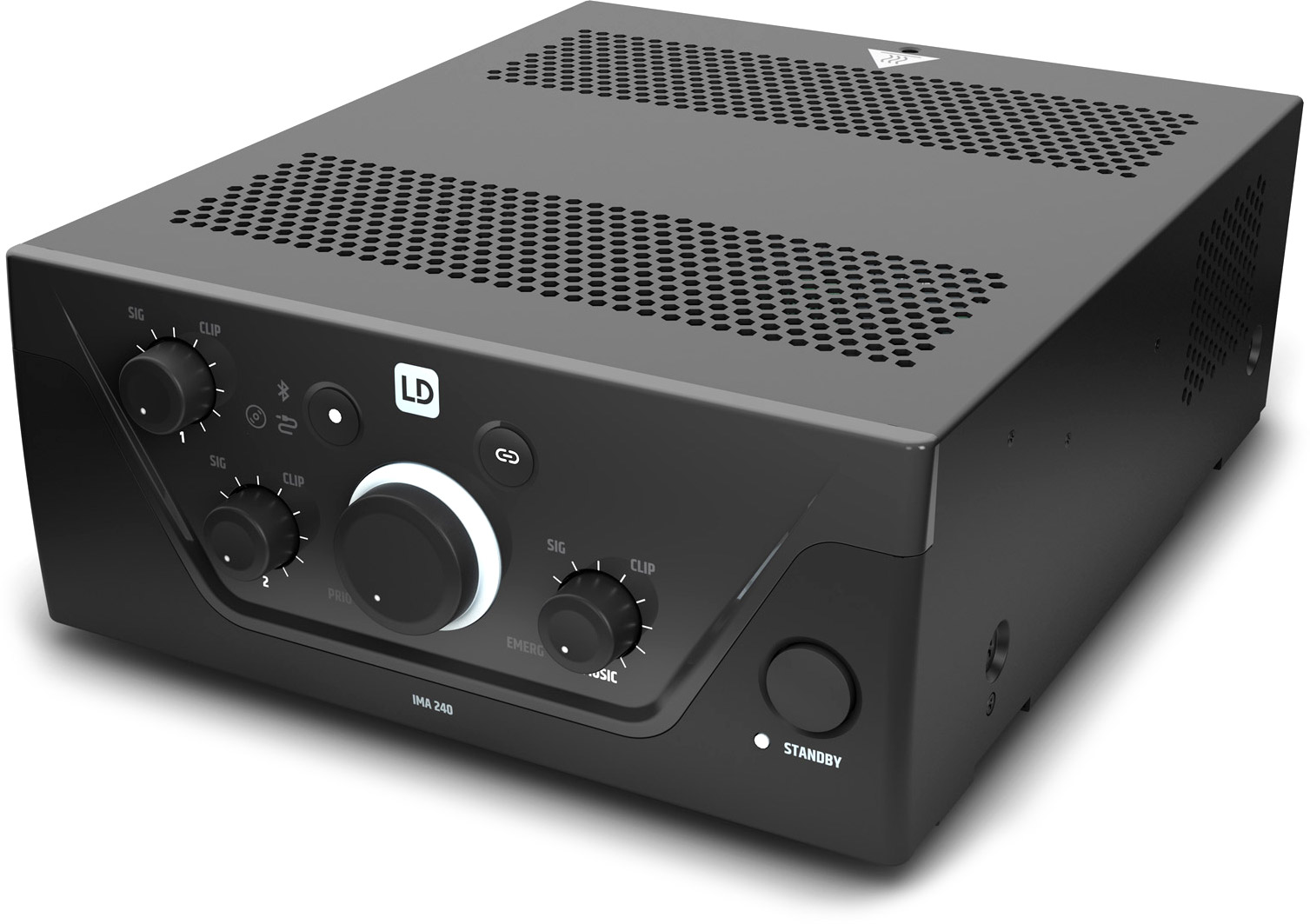

Its compact design in a 9.5-inch housing, a wide range of connection options including Bluetooth for wireless connection of music sources, and a multi-level priority circuit guarantee seamless integration into commercial and industrial applications. The IMA 240 offers four priority levels for emergency calls and microphone/line inputs for various signal and music sources. Optionally, an automatic standby mode can be activated to further reduce power consumption.
The mixer amplifier has two priority contact closures: one for the emergency input, which mutes all other signal sources in the device, and one for the microphone inputs, which mutes the music signal sources. The outputs offer 240 W at 4 ohms, a 2-band EQ for bass and treble, and a 70 V / 100 V tap. The High-Z / Low-Z selector switch can be used to completely disconnect the output signal from the output transformer, ensuring optimal frequency response in low-input-impedance applications. External power amplifiers, active subwoofers or systems for music on hold can be combined with the IMA 240 via the integrated aux output. The music mix selector switch allows you to decide whether the entire mix or only the selected music signal source should be transmitted to the aux output.

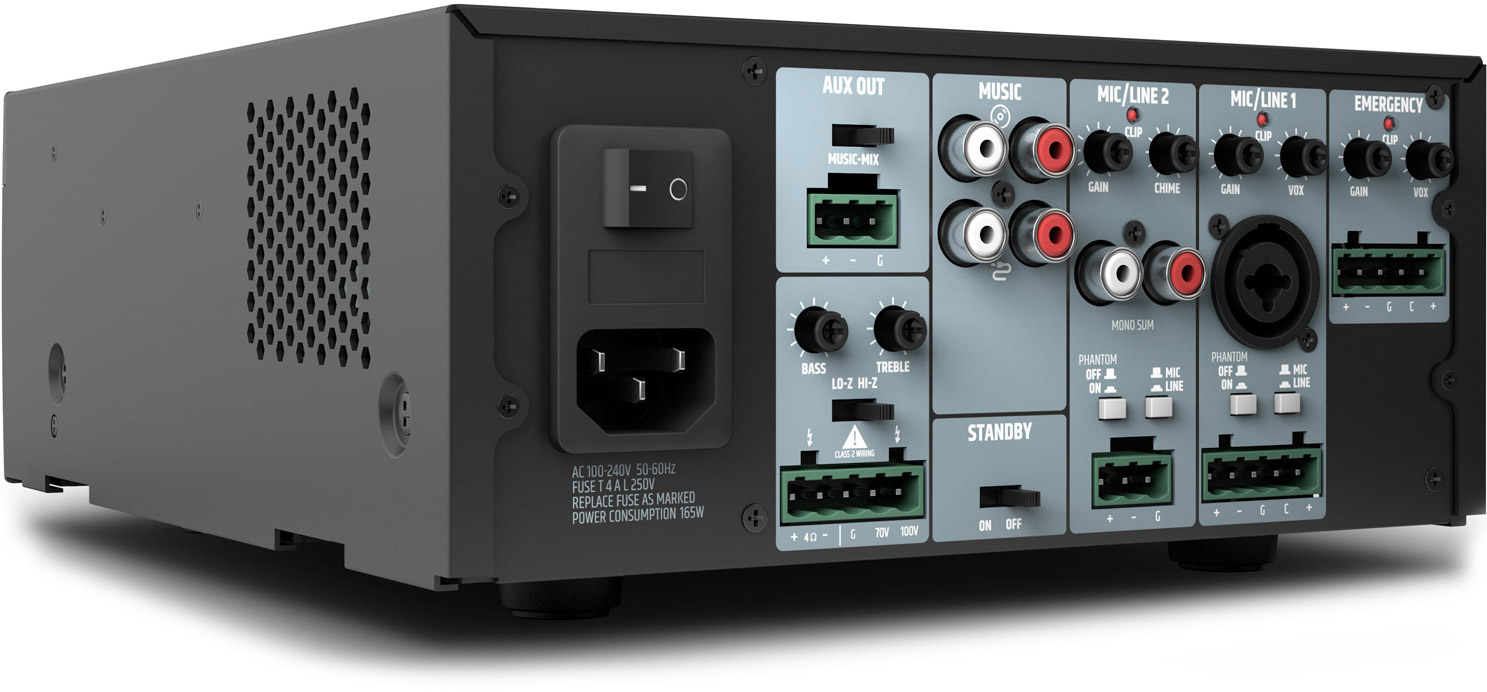

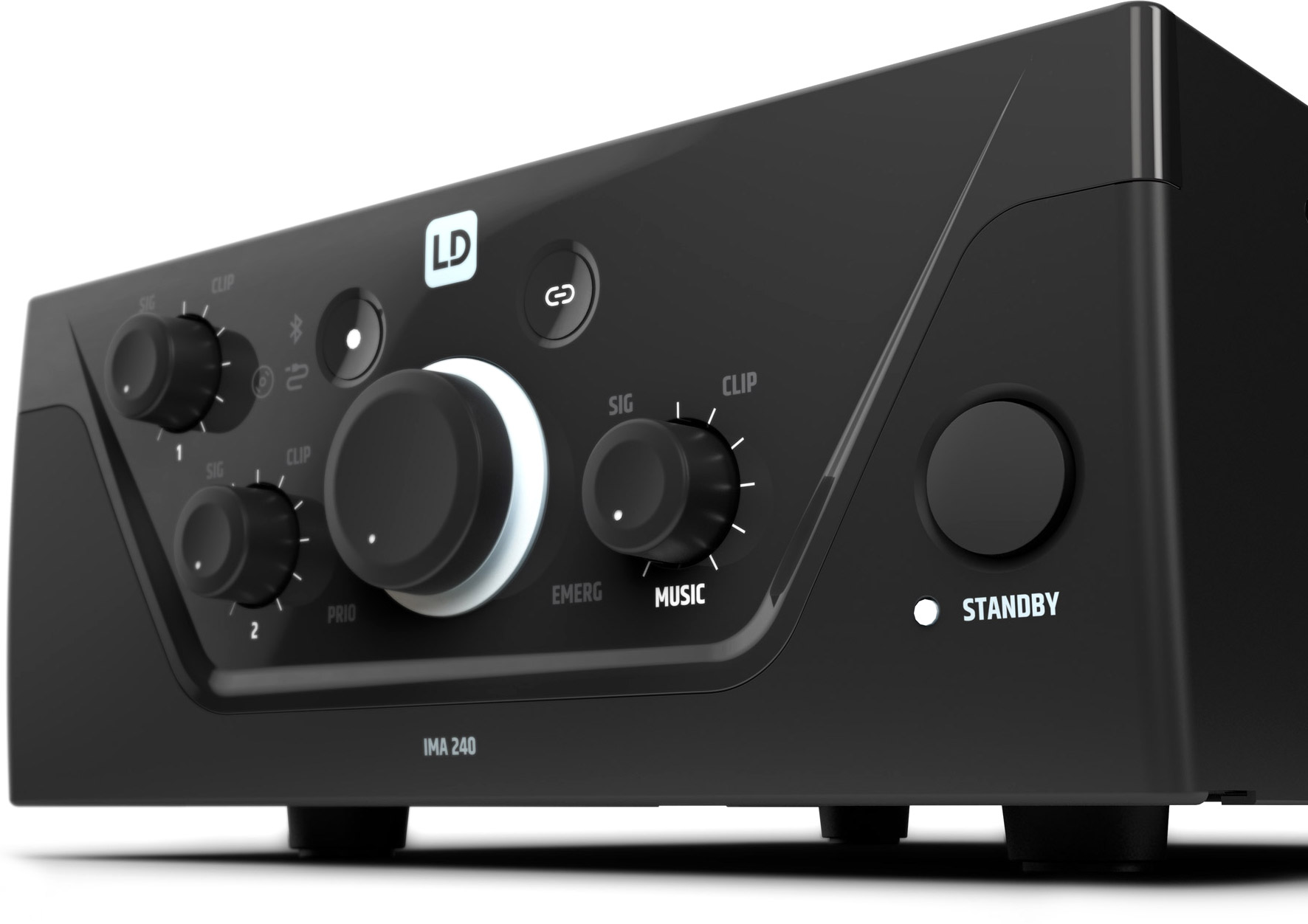

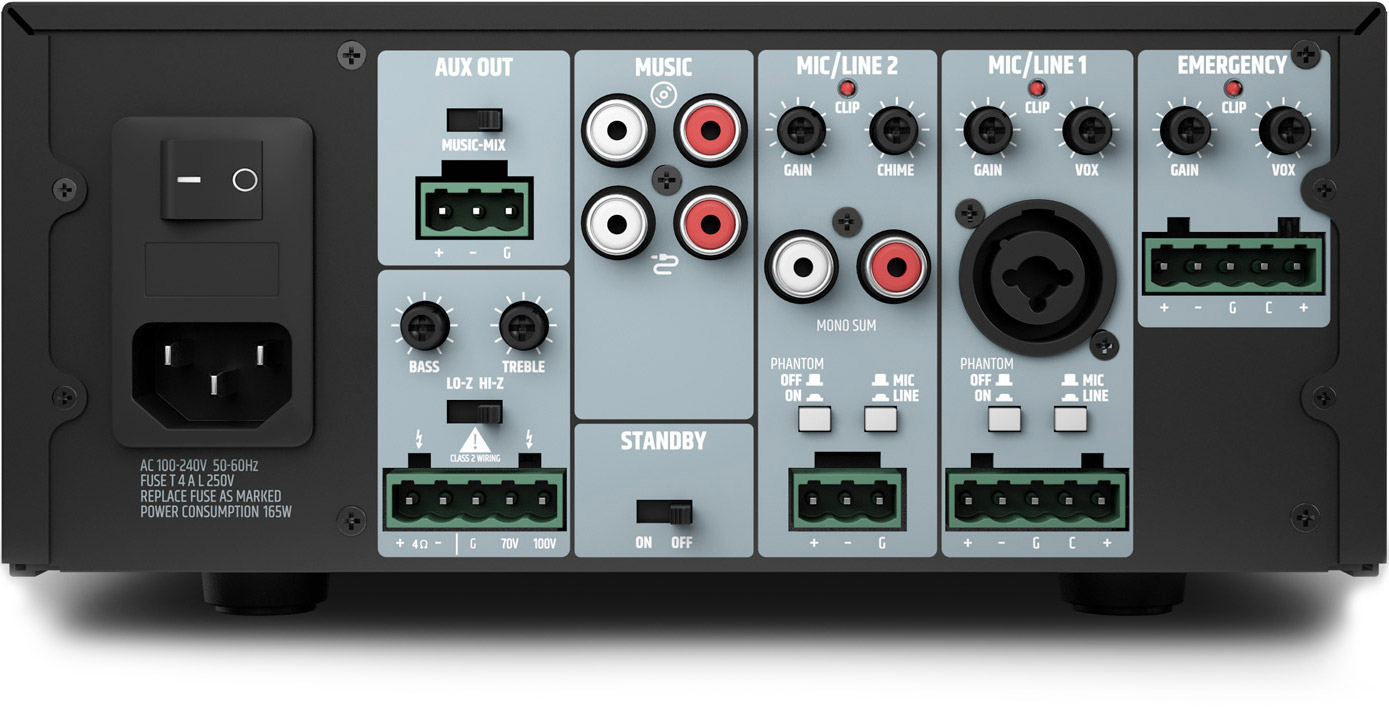

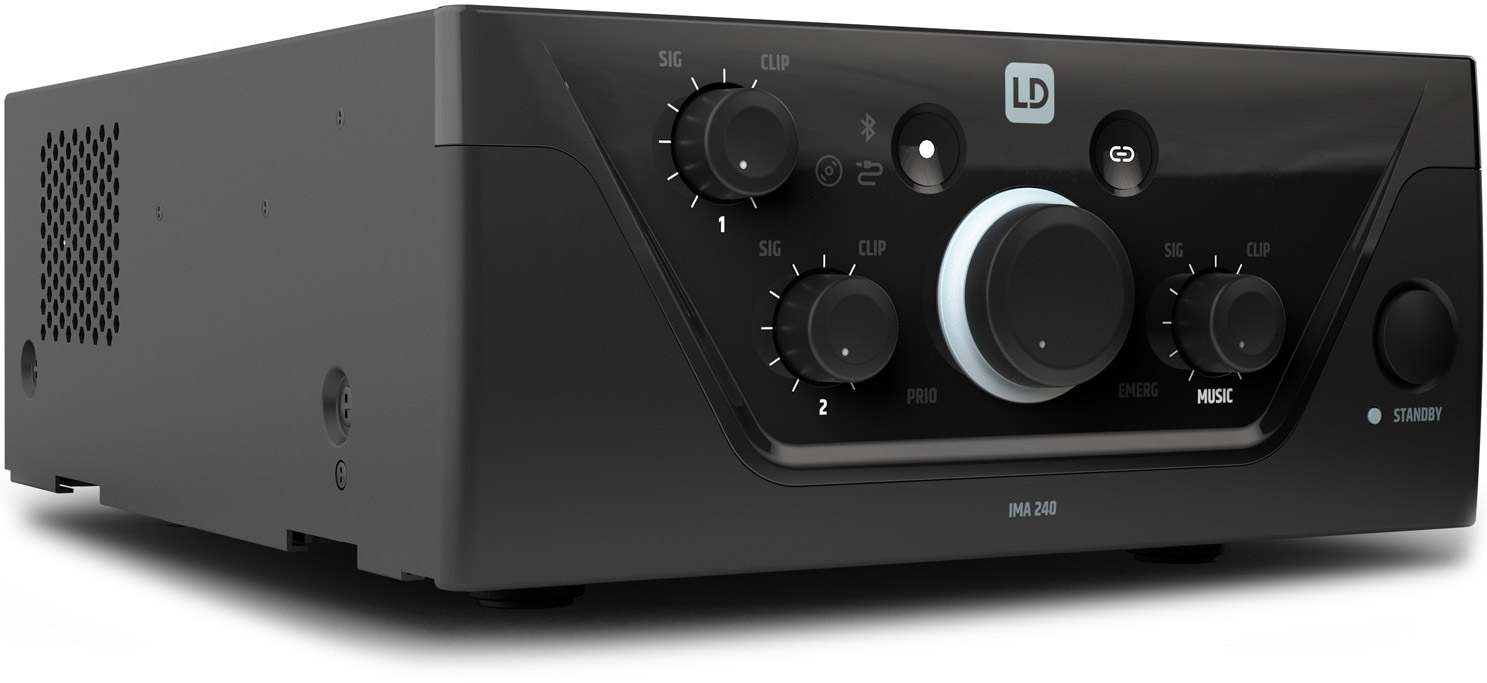

The intuitive design of the control panel with capacitive buttons for selecting the music signal source, the clear layout of the rear panel and the compact 9.5-inch format ensure that no problems arise when installing the mixing amplifier.
Technical data:| Product type: | installation mixing amplifier |
| Emergency entrance: | 1 balanced line input |
| Mic/Line inputs: | 2 |
| Mic/Line input connectors: | 2 unbalanced stereo line inputs |
| Mic/Line input connectors: | Bluetooth 4.0 |
| Music sources: | 2 unbalanced stereo line inputs |
| Music sources: | Bluetooth 4.0 |
| Line outputs: | 1 |
| Main outputs reinforced: | 1 with Low-Z/High-Z switchover |
| Cooling: | convection |
| Priority levels: | 4 |
| Nominal input sensitivity: | -15 dBu (sine signal, 1 kHz, gain max.) |
| Nominal input attenuation: | 20 dBu (sine 1kHz) |
| Priority Contact closure: | +5 V DC, NO contact (normally open) for potential-free contact |
| Connection: | 5-pole connection terminal, grid 5.08 mm |
| Nominal input sensitivity microphone: | Mic: -40 dBu (sinusoidal signal, 1 kHz, gain max.) |
| Nominal input sensitivity: | Line: -17 dBu (sine signal, 1 kHz, gain max.) |
| Nominal input overload Microphone: | Mic: -5 dBu (sine signal, 1 kHz) |
| Nominal input overdrive Line: | Line: +19 dBu (sine signal, 1 kHz) |
| Phantom power: | + 24V, 10mA switchable |
| Inputs Mic/Line 1: | 5-pole connection terminal, grid 5.08 mm |
| Inputs Mic/Line 1: | XLR/6.3 mm jack |
| Inputs Mic/Line 2: | 1 double RCA mono summed |
| Inputs Mic/Line 2: | 3-pole terminal block, contact spacing 5.08 mm |
| Nominal input sensitivity CD/AUX: | - 6.22 dBV (sine 1 kHz, max. gain) |
| CD/AUX connection: | 2 RCA connectors (2 jacks each, mono-summed) |
| Amplifier outputs: | High-Z: 70V or 100V outputs |
| Amplifier outputs: | Low-Z: 4 ohms minimum load |
| Amplifier input: | 5-pole connection terminal, grid 5.08 mm |
| RMS power (W): | 240 W (Continuous sine wave 1kHz, 4 ohm load) |
| Power (peak) (W): | 250W (100 msec sine 1kHz Burst @ 4 ohm load) Peak Limiter |
| Frequency range: | 20 Hz - 20 kHz (LO-Z, -3 dB) |
| Frequency range: | 60 Hz - 20 kHz (HI-Z, -3 dB) |
| Tone control bass: | +/-10 dB (100 Hz) |
| Treble control: | +/-10 dB (10 kHz) |
| Protective circuits: | audio limiter |
| Protective circuits: | short circuit |
| Protective circuits: | overheating |
| Protective circuits: | overvoltage |
| AUX output connection: | 3-pole terminal block, contact spacing 5.08 mm |
| Maximum amplification: | 22 dB |
| Type: | switched-mode power supply |
| Operating voltage: | 100 V AC - 240 V AC / 50 - 60 Hz |
| Power consumption (max.): | Line: -17 dBu (sine signal, 1 kHz, gain max.) |
| Power consumption (idle): | 7.5 W (no input signal) |
| Power consumption in standby: | |
| Operating temperature (non-condensing): | 0°C - 40°C; |
| Time to automatic standby: | 20 mins. |
| Dimensions (W x H x D) (height with rubber feet): | 210 (W) x 95 (H) x 266.76 (D) mm |
| Optional accessories: | rack-mounting material |
| Weight: | 3.5 kg |
