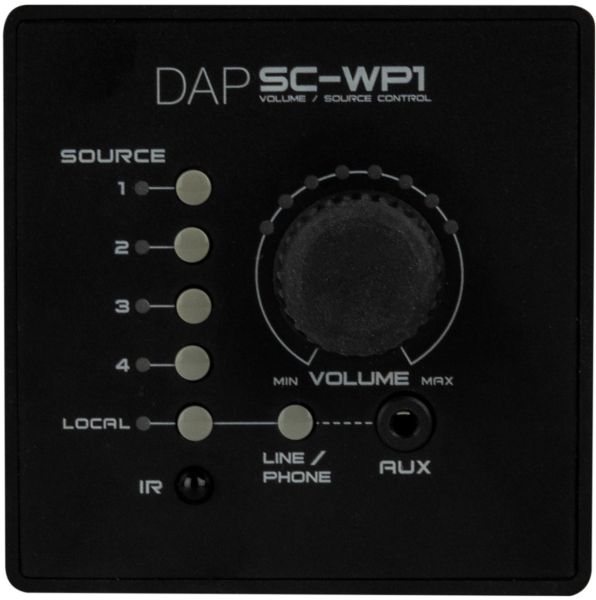

DAP-Audio SC-WP1 Wall panel remote for SC-5.2 Source Control - black

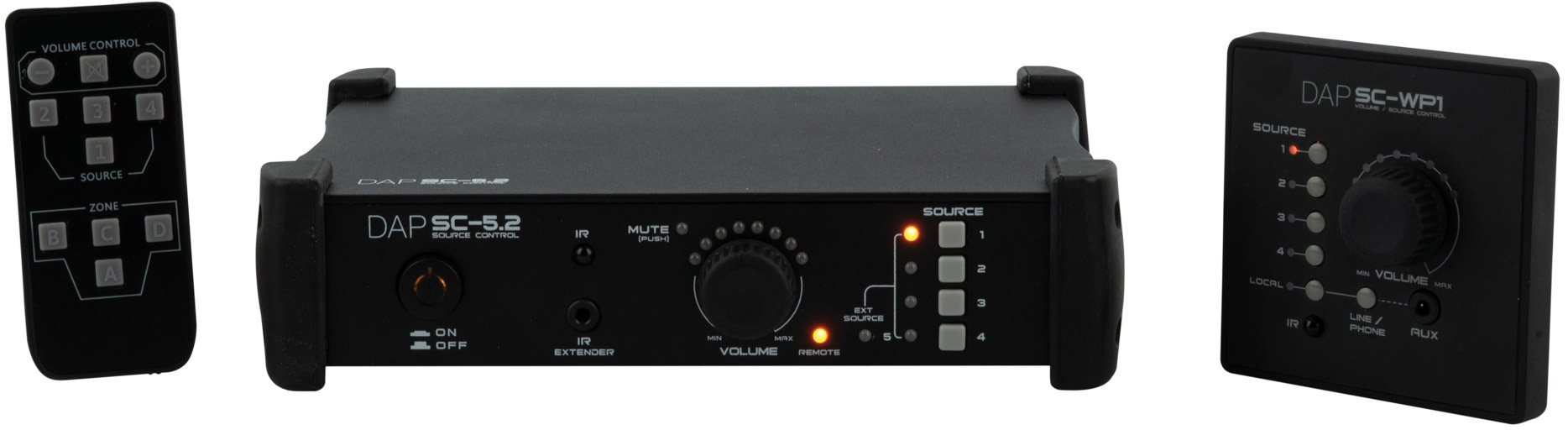

The DAP SC-WP1 is a wall panel remote control for the DAP SC-5.2 Source Control. The rotary encoder controls the volume and the tactile switches allow you to select the input source. The SC-WP1 provides an additional line or phone input via a 3.5 mm jack, which is passed through to the SC-5.2 in mono. It has an IR sensor and acts as a relay for remote control signals from the SC-5.2 remote control.
The SC-WP1 can be installed in a standard square wall box and connects to the SC-5.2 via an RJ45 port and a standard shielded CAT5 or CAT6 cable. The SC-WP1 is available in black or white.Technical data:

Stereo Inputs:	1
Stereo Input Connector:	TRS balanced 3.5 mm
Height (mm):	40 mm
Width (mm):	84 mm
Length (mm):	84 mm
Housing:	Plastic
Colour:	Black
Weight:	0.075 kg
IP Rating:	IP20 (indoor use only)
LED Indicators:	Channel select / Output level
Maximum Ambient Temperature:	0 °C
Minimum Ambient Temperature:	40 °C
