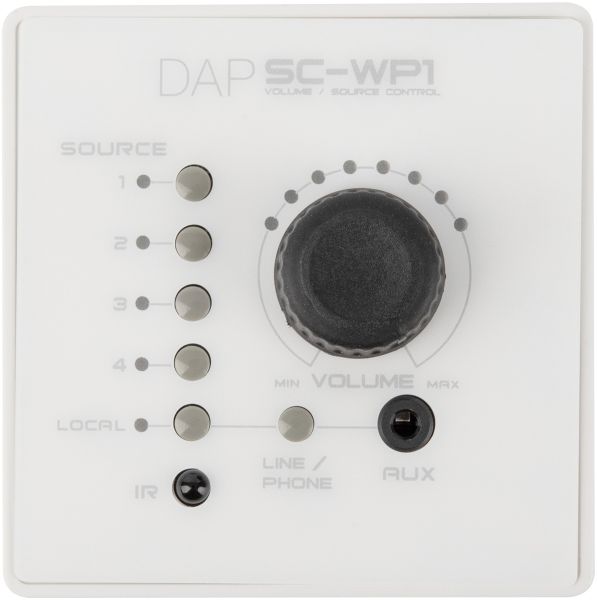

DAP-Audio SC-WP1 Wall panel remote for SC-5.2 Source Control - White

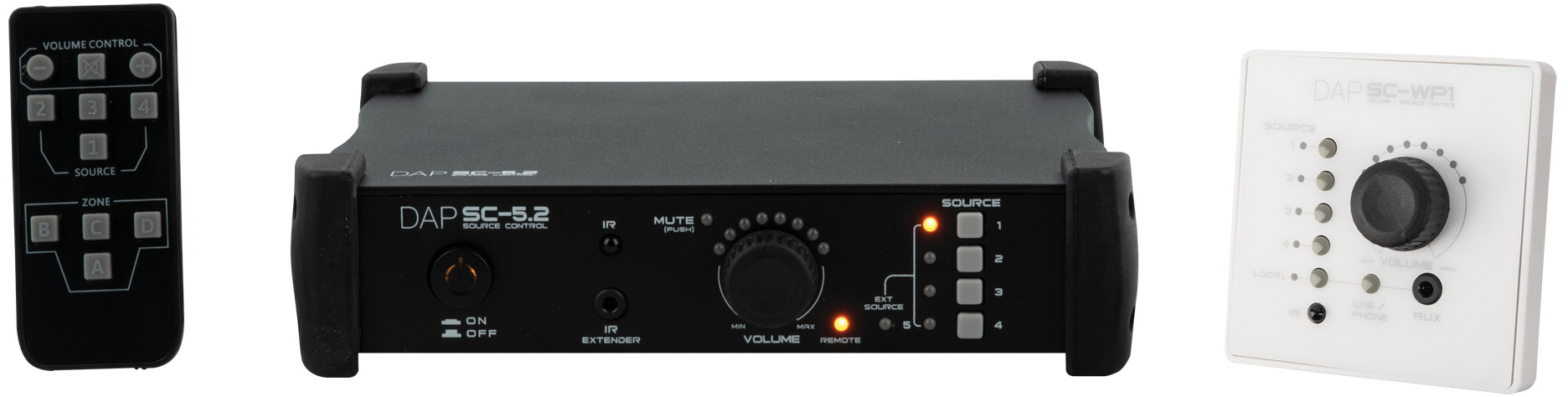

The DAP SC-WP1 is a wall panel remote control for the DAP SC-5.2 Source Control. The rotary encoder controls the volume and the tactile switches allow you to select the input source. The SC-WP1 provides an additional line or phone input via a 3.5 mm jack, which is passed through to the SC-5.2 in mono. It has an IR sensor and acts as a relay for remote control signals from the SC-5.2 remote control.
The SC-WP1 can be installed in a standard square wall box and connects to the SC-5.2 via an RJ45 port and a standard shielded CAT5 or CAT6 cable. It has two RJ45 ports allowing up to 8 units to be daisy-chained to one SC-5.2. An on-board DIP switch assigns the SC-WP1 to one of 8 zones. The SC-WP1 is available in black or white.Technical data:

Stereo Inputs:

1
