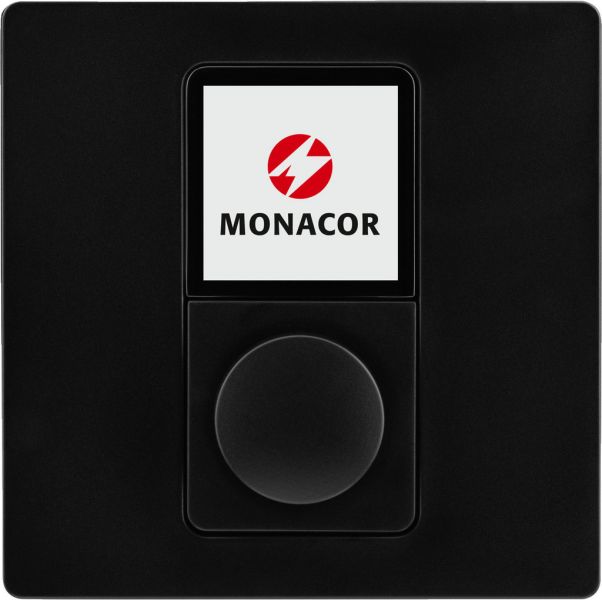

MONACOR WP-1/BK Wall module

€161.19 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Currently not available.
Expected to be available again in 12 weeks.
Currently not available
Please choose a variant.
Item number: 250141610
EAN: 4007754427028
MPN: 1001215
Wall module, for controlling 4-zone multifunctional amplifiers PA-4125DX and PA-4125DX/DT.... more
All information about the product:
"MONACOR WP-1/BK Wall module"
Wall module,
for controlling 4-zone multifunctional amplifiers PA-4125DX and PA-4125DX/DT.
  • Connection of up to 8 x wall module WP-1/BK or WP-1/WH to each amplifier PA-4125DX and PA-4125DX/DT
  • Each wall module can be assigned to any sound zone of PA-4125DX and PA-4125DX/DT via WebControl app
  • Source can easily be changed or volume level be regulated via preset minimum and maximum volume levels
  • PoE for easy network pairing, real-time synchronisation of the devices with the system and power supply of the controller
  • PIN code protection for easy and extended access, including switching off the system when leaving the location
  • Intuitive menu for simple installation, system setup and an easy user operation
  • Adjustable screen and backlight for controlling brightness and colour
  • High-performance polymer of Danish design with smooth matt surface and covered screws
  • Mounting in standard flush-mounted socket
  • EU standard colour black RAL9005
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Technical data:
Description: wall module
Type: remote control of a zone
Colour: black, RAL9005
Suitable for: PA-4125DX, PA-4125DX/DT
Power supply: PoE, 3.84 W max.
Admiss. ambient temp.: 0-40 °C
Dimensions: 87 x 87 x 43 mm
Mounting dimensions: mounting depth: 23 mm
Weight: 124 g
Connections: 1 x RJ45
Other features: cable length: 100 m max.
Packing unit: 1
Packaging dimensions (W x H x L): 0.12 x 0.07 x 0.15 m
Gross weight: 0.26 kg
Net weight: 0.124 kg
