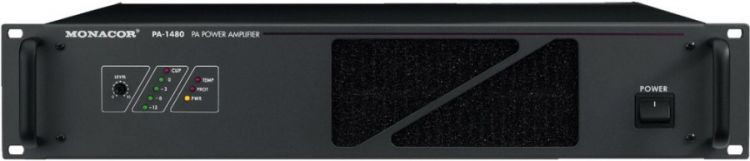

MONACOR PA-1480 Mono PA power amplifier
€831.00 *
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Item number: 250111320
EAN: 4007754159653
MPN: 0171110
Mono PA power amplifier 1 x 480 W Switchable 400 Hz high-pass filter 6 dB/oct.... more
All information about the product:
"MONACOR PA-1480 Mono PA power amplifier"
Mono PA power amplifier
- 1 x 480 W
- Switchable 400 Hz high-pass filter 6 dB/oct.
- Temperature-controlled fan, continuously adjustable
- LED indication for clip, protect, overtemperature and output level
- Feed-through output (link)
- Mains operation or 24 V emergency power operation
| Power rating: | 480 W |
| Power rating at 8 O: | 1 x 480 W |
| Power rating at 100 V: | 1 x 480 W |
| Output impedance: | 62 V/8 O, 70 V/10 O, 100 V/21 O |
| Channels: | 1 |
| Inputs: | 1.2 V, bal. |
| Frequency range: | 35-20,000 Hz |
| S/N ratio: | > 100 dBA |
| THD: | |
| Mains voltage: | ~ 230 V |
| Mains frequency: | 50 Hz |
| Power consumption, operation: | 1,400 VA |
| Operating voltage (possible alternative): | DC 24 V |
| Power supply (possible alternative): | DC 40 A |
| Admiss. ambient temp.: | 0-40 °C |
| Width: | 483 mm |
| Height: | 88 mm |
| Depth: | 374 mm |
| Rack spaces, RS: | 2 |
| Weight: | 15.2 kg |

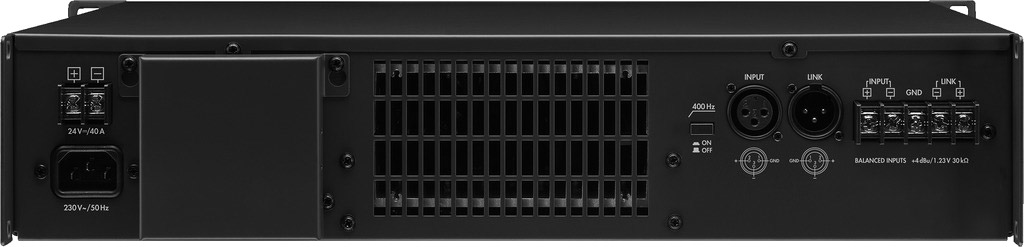

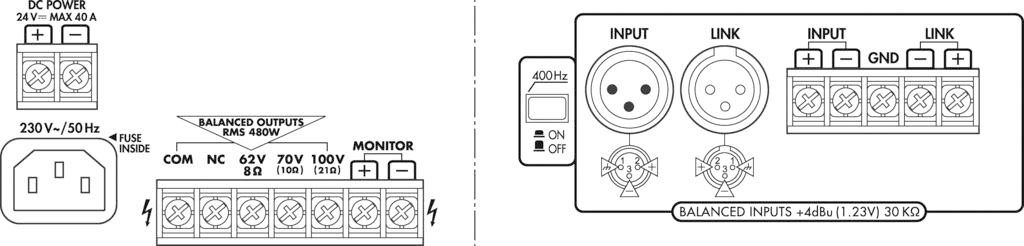

| Connections: | XLR/screw contacts (inputs) screw contacts (speakers) |
| Packing dimensions (W x H x L): | 0.58 x 0.18 x 0.48 m |
| Gross weight: | 17.24 kg |
| Net weight: | 15.22 kg |
