INTUSONIC NSA52 5-source Media Player with DAB

The INTUWORX NSA52 is a versatile audio source unit, combining a USB-based MP3 player with an FM Tuner, a DAB+ tuner, a wireless audio receiver and a jingle player - all packed in a sleek 19"/1U case and operated via a clear and intuitive user interface built around a 124x64 pixel graphics display, with an included IR remote for enhanced comfort. The MP3 player is configurable, offering different sequence and repeat modes, and the display of either tag content or file name. The LINKOUSTIC 5.0 wireless audio link connects flawlessly with compatible devices, and the DAB+ receiver offers the pristine sound of digital radio. The FM tuner offers RDS readout and a 10-station direct access keyboard allows to store the favourite FM and DAB+ stations. Unlike non-professional hi-fi players, the NSA52 sports balanced outputs as well as unbalanced outputs, and a rear-side volume control to adapt to the following signal chain. The built-in jingle player with up to 4 jingles can play on demand or by schedule, and the 4 jingles can also be invoked by the external closure of the provided rear-panel contacts.

19" media player with DAB+ & FM tuner, jingles, MP3 player, wireless audio and IR remote control

• Jingle Player mixes 4 short audio sequences with the music on demand or by schedule
• FM radio and interference-free DAB+ reception
• 10 station presets for easy access of radio stations
• USB 2.0 port for USB storage media
• Folder navigation, repeat functions and random play
• Supports ID3 tags
• Control via IR remote control; LINKOUSTIC 4.2 Wireless Audio Link
• Bluetooth: operating range up to 10m in buildings
• Monochrome LCD display
• (19") 48.3 cm rack installation 1 U
• For further information about this product, please refer to the Data Sheet under "Downloads"

Scope of delivery

• 1 x user manual
• 1 x device
• 1 x power cord
• 1 x plug (male)
• 4 x foot
• 1 x antenna
• 1 x adapter

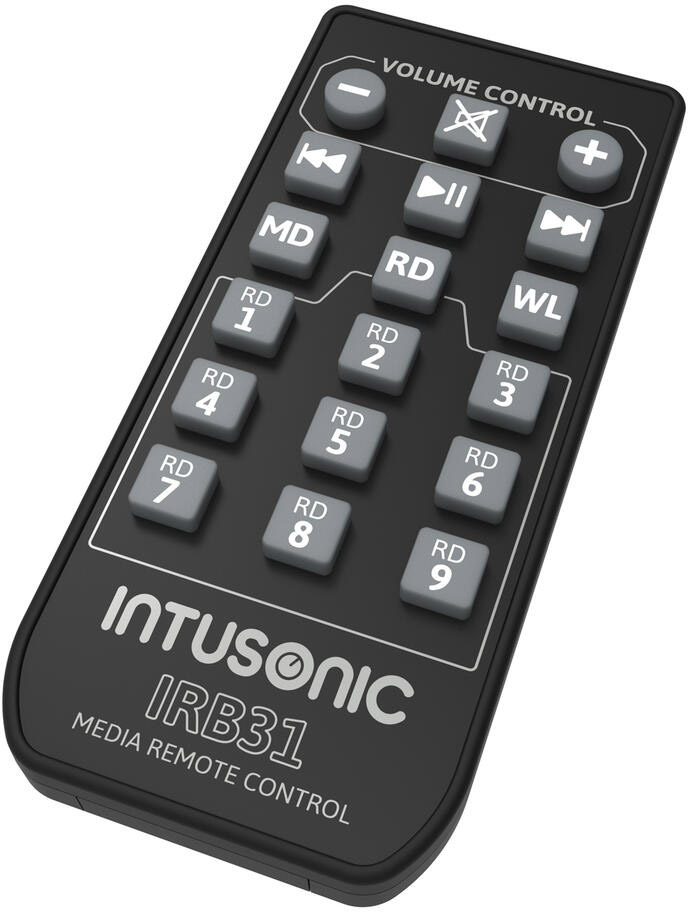

• 1 x remote control
• 1 x battery

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	12 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via IEC (M) power supply cord with safety plug included
Device fuse:	5 x 20 mm, T 0.5 A fuse replaceable
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
Control:	IR remote control; LINKOUSTIC 4.2 Wireless Audio Link
Bluetooth device name:	LINKOUSTIC
Audio player:	USB + Bluetooth; FM tuner; DAB+
Range:	Bluetooth: range up to 10m in buildings
Carrier frequency:	2.4 GHz
Housing color:	Black matte; anthracite matte
Display type:	Monochrome LCD display
Display:	Singer , song title , play time elapsed , play time remaining; frequency , folder name
Tuner frequency range:	DAB(+) 174.928-239.200 MHz
Control elements:	Power switch, audio player, level control, encoder, memory button

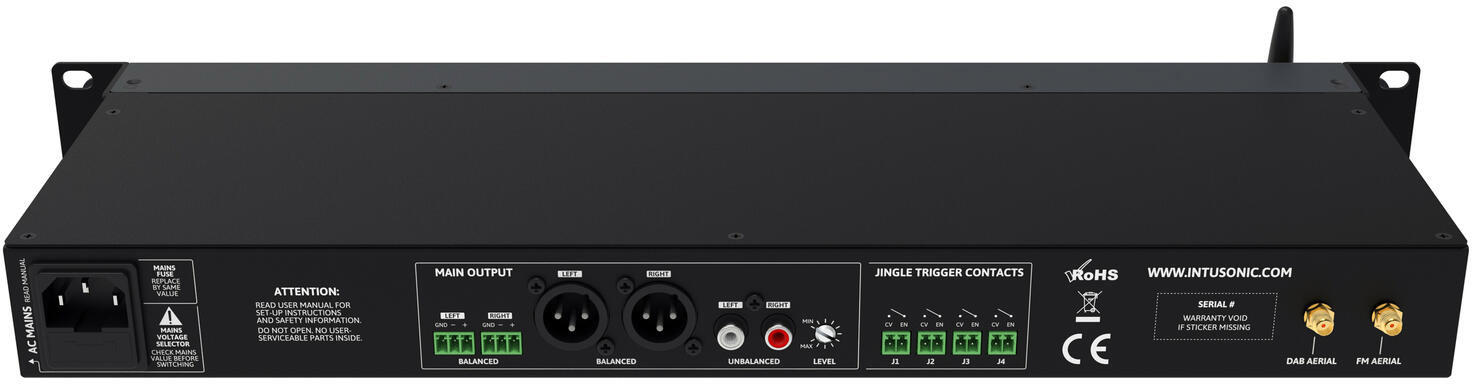

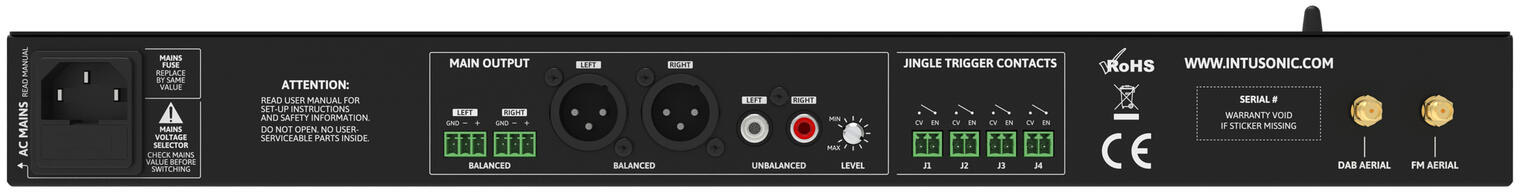

Connections:	Antenna via 3 x SMA (F) mounting version Input: Trigger via 4 x screw plug-in terminal Output: line via 1 x stereo RCA Output: line via 2 x 3-pin XLR (M) mounting version Output: line via 2 x screw plug-in terminal
Music format:	MP3, WAV; FLAC, APE
Available storage media:	USB devices max. 64GB (FAT 16/32)
Housing design:	(19") 48.3 cm rack installation 1 U
Mounting depth:	17 cm
Dimensions:	Width: 48.3 cm Depth: 18.8 cm Height: 4.4 cm
Weight:	2.50 kg
Device
Weight:	2.23 kg
Power cord
Weight:	0.17 kg
Remote control
Weight:	0.02 kg
