OMNITRONIC UHF-601 1-channel Wireless Mic System 823-832/863-865 MHz

Preview: OMNITRONIC UHF-601 1-Kanal Funkmikrofon-System 823-832/863-865 MHz

OMNITRONIC UHF-601 1-Kanal Funkmikrofon-System 823-832/863-865 MHz

€149.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: 3-5 days

Item number: 200023110

EAN: 4026397738674

MPN: 13063600

True diversity wireless system with auto scan, 7-band EQ and TFT color displays Multifrequency... more

Back to the overview

All information about the product:

"OMNITRONIC UHF-601 1-channel Wireless Mic System 823-832/863-865 MHz"

True diversity wireless system with auto scan, 7-band EQ and TFT color displays

Multifrequency wireless receiver with high-quality true diversity reception
Ideal for large multi-channel systems
Operating range up to 60m with line-of-sight
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
Up to 24 transmitters in 2 bands can be operated in parallel without interference

receiver

Automatic frequency setup
ID transmitter verification prevents incorrect use and interference from external radio transmitters
Different user colors selectable for easy differentiation
7-band equalizer for sound tuning
Lock function for prevents undesired changes to settings
Multifunctional jogdial for menu settings
(19") 48.3 cm rack installation possible 1 U
Ultra-low latency
Multicolor TFT display
Desktop console housing

microphone

Polar pattern: Cardioid
Multicolor LCD display
Charge status indicator

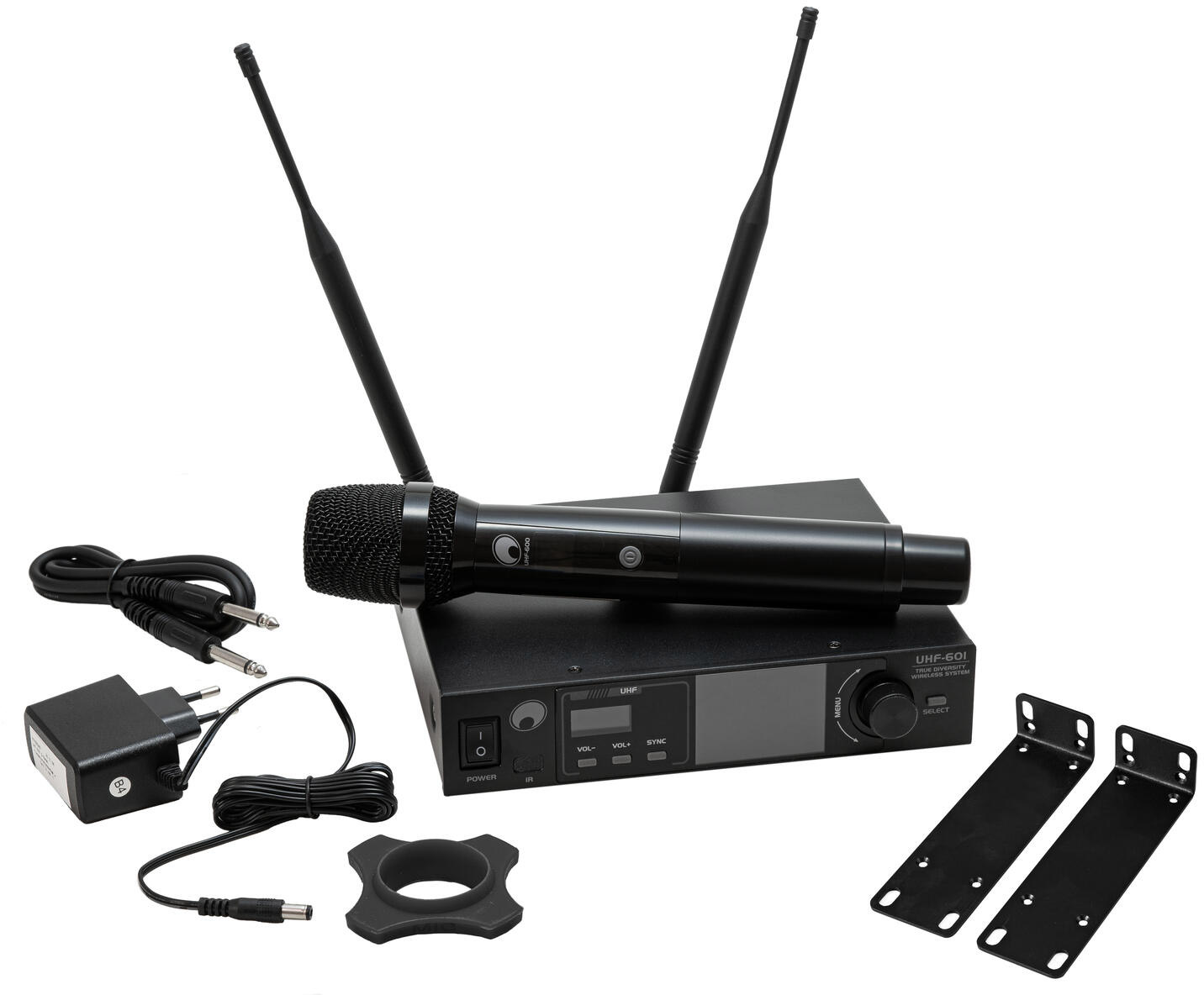

Package contents

1 x receiver, 2 x antenna, 1 x external mains adapter, 4 x foot, 1 x jack cable, 3 x mounting bracket, 1 x microphone, 1 x holder, 1 x user manual, 1 x declaration of conformity

Type:	Wireless set
Range:	Range up to 60m with line-of-sight
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Switching bandwidth:	11 MHz
Parallel mode:	Max. 24 transmitter in 2 bands
Frequency selection:	120 frequencies automatically scannable In 10 groups
Weight:	1,74 kg

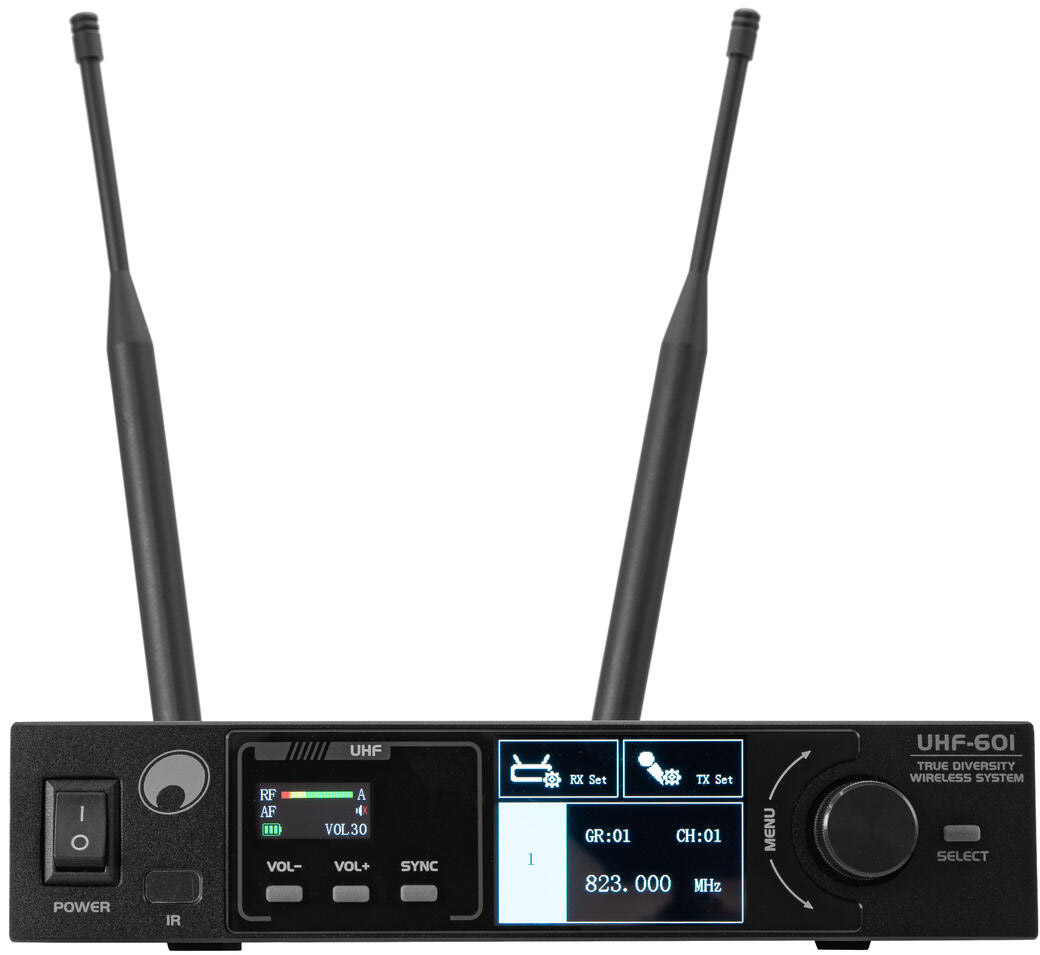

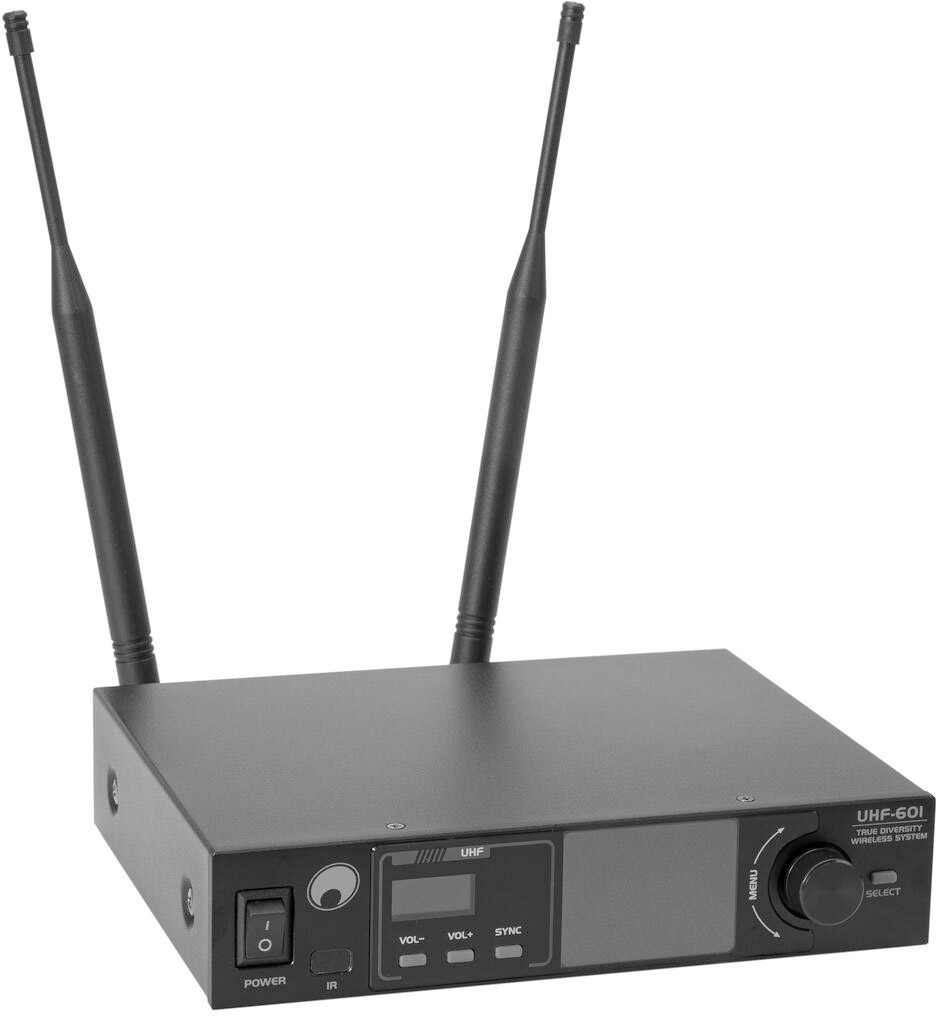

Receiver
Power supply:	100-240 V AC, 50/60 Hz 12V DC 1000 mA
Power consumption:	2,2 W
Protection class:	Protection class III
Power connection:	Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter included
Number of channels:	1
S/N ratio:	>80 dB
THD:	<0,5 % at 1 kHz
Diversity:	True diversity
Latency:	< 3 ms
Modulation:	FM
Housing color:	Black
Display type:	Multicolor TFT display
Display:	Frequency , goup , channel , RF signal level; AF audio level , Mute
Control elements:	Level control, power switch, encoder, menu, sync button
Connections:	Input: antenna via 2 x BNC (F) Output: microphone via 1 x 3-pin XLR (M) mounting version Output: microphone via 1 x 6.3 mm plug (unbal.)
Equalizer:	Graphic equalizer 7-band
Material:	Metal
Housing design:	Desktop console housing (19") 48.3 cm rack installation possible 1 U
Mounting depth:	21 cm
Dimensions:	Width: 20,5 cm Depth: 21 cm Height: 4,4 cm
Microphone
Power supply:	3V DC 130 mA
Capsule type:	Dynamic Size: Ø 25,4 mm
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Frequency range:	50 - 16000 Hz
Sensitivity:	-54 dB
Impedance:	600 Ohm
RF power output:	10 mW (HI); 5 mW (LO)
Housing color:	Black
Display type:	Multicolor LCD display
Display:	Frequency , charge status indicator , Mute , RF signal level
Switch:	On/off/mute switch
Material:	Metal
Dimensions:	Length: 25,9 cm Diameter: Ø 4,95 cm
Weight:	0,350 kg
